Product Specifications
| Prod Model: |
99T1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
48*48mm |
| Theory: |
Electronic Meter |
| Usage: |
Reactive Energy Meter |
| Display: |
Indicator |
| Power Source: |
AC and DC |
| Installation: |
General Installation Meter |
Product Description

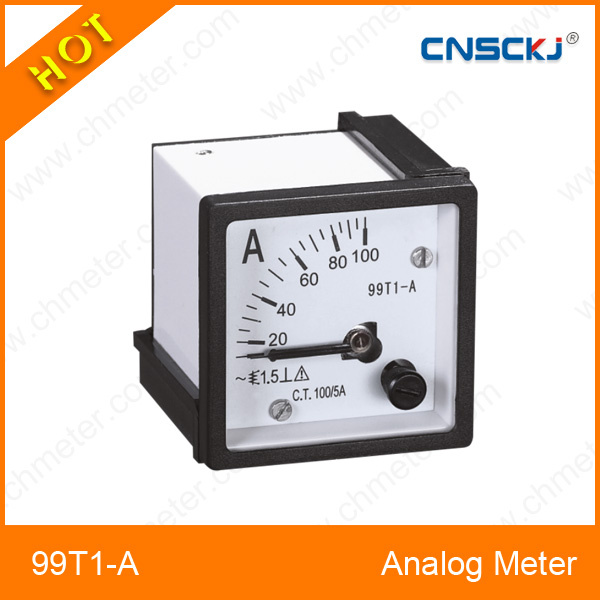

48*48 Round Analog Panel Meter (99T1)
99T1 Moving Coil instrument DC/AC Voltmeter/Ammeter
1. Accuracy: Class 2.5
2. Specification: 50mV 60mV 75mV 100mV 3V 5V 7.5V 10V 15V 20V 30V 50V 75V 100V 120V 150V 200V 250V 300V 400V 450V 500V 600V, measuring Ranges over 600V with external resistor (rated current 5mA)Voltmeter, Ammeter, digital meter, elecric meter, electrical meter, energy meter, power Meter.
Changes caused by the temperature:
Temperature range for reference: 23° C± 2° C, 13° C~23° C, and 23° C~33° C. The changes caused by the impact of temperature are not allowed to be out of the range of the level index ± 100%.
The installation:
Unless specified, the meter is usually installed in a vertical position. Other installation positions such as horizontal and inclined position can be installed according to the customer's requirements. The corresponding level of accuracy is only valid to the regulated installation position. The meter has two kinds of instruction angles: Right angle 90° And wide angle 250° .
Anti-vibration and anti-shock:
Anti-vibration: Complies with the standard of IEC60068-2-6; Frequency sweep range: 10-55-10Hz; Displacement amplitude: ± 0.15mm, ± 0.3mm; Frequency sweep cycles: 5 times; Sweep rate: 10ct/min; Maximum acceleration: 147m/s2(15g), 490m/s2(50g); RMS acceleration: 6.06g; Vibration time: 15 min. Anti mechanical shock: Complies with the standard of IEC60068-2-27.
Accuracy level:
The SCD series of pointer meter: AC and DC voltmeter and ammeter to the level of 1.5 or 2.5, power meter to the level of 2.5, frequency meter to the level of 2.5, and power factor meter to the level of 2.5.
Overload ammeter:
The conventional overload multiple times should be once or twice, and it can be customized to once, twice, 3 times and so on according to the user's requirements. Its function is to indicate the approximate transient overload current value, such as the start-up current when the motor stars, and so on.
Name |
precision |
normal specification |
remark |
AC ammeter |
A |
1.5 |
0.5-50A |
can be directly connected |
A |
1.5 |
10/5A-800/5A |
secondary current passed by current transformer
|
KA |
1.5 |
1KA-10KA |
secondary current passed by current transformer
|
AC voltmeter |
V |
1.5 |
10V-600V |
can be directly connected |
KV |
1.5 |
1KV-35KV |
100V secondary voltage passed by voltage transformer |
DC ammeter |
µA mA |
2.5 |
50μA-500μA 1mA-500mA |
can be directly connected
|
A |
1.5 |
1A-15A |
can be directly connected |
A |
1.5 |
15A-750A |
outer attached shunt 75mV 60mV 50mV
|
KA |
1.5 |
1KA-3KA |
outer attached shunt 75mV 60mV 50mV
|
DC voltmeter |
V |
1.5 |
3V-600V |
can be directly connected |
KV |
1.5 |
1KV-3KV |
outer attached resistance value |
