Product Specifications
| Prod Model: |
ELP-SH9004-6037 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Monitoring System |
Product Description

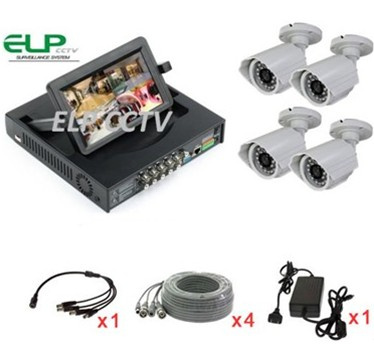

4CH all in one security DVR system cctv camera kit home surveillance ELP-SH9004-6037
Main Features:
1). 1 X H. 264 realtime combo DVR with 7 inch LCD monitor and 500G hard disk(ELP-SH9004).
2). 4 X 1/4 Color Sharp CCD, 420TV Line waterproof IR Camera(ELP-6037). IR distance: 10-15M
3). 4 X 20M CCTV Video power cable.
4). 1X 4ch power adaptor for 4 CCTV Cameras.
DVR specification:
Model: ELP-SH9004 (4CH all in one combo dvr with 7 inch lcd monitor)
1The LCD DVR with a flexible Bracket, It can support 120 Degree rotate and LCD Screen can support 330 Degree rotate.
2)Integrate 7inch digital LCD, the screen resolution is 800X480.
3)H. 264 compression format.
4)Support mobile phone surveillance
5)Support languages: English, German, French, Spanish, Italian, Russian, Portuguese.
6)Video and audio real time recording and playback at the same time.
7)Support HD VGA output, the resolution is high to 1280X1024.
8)Searching modes: Time and data searching, event searching, recording group searching.
9)Backup modes: Network backup, USB 2.0 backup.
10)Support RS-485 PTZ control(speed dome camera), and preset positions operation.
11)Support USB mouse and infrared remote controller operation.
12)Multiplex operation: Live, record, playback, network can be operated at the same time.
Attention:
This Product is fit for Villa, House, Supermarket, store and so on
The storage of the HD: 2TB
Support smart phone
You can see the frame through TV, network, phone at the same time.
4ch: 4 D1
Camera specification: ELP-6037 (IR outdoor waterproof camera)
Image Sensor: 1/4-Inch color Sharp CCD.
Sync Systme: Internal.
Resolution: 420TV Lines.
24pcs IR LED, 20M IR Range
S/N Ratio: 48dB (AGC OFF).
Minimum Illumination: 0.1 Lux/F1.2.
White Balance: ATW / AWC switchable.
Gain Control: AGC ON / OFF switchable.
Electronic Shutter: NTSC: 1/60~1/120, 000 sec/PAL: 1/50~1/120, 000sec.
B. L. C. Function: ON/OFF switchable.
Video Output: Composite 1.0V p-p at 75 ohm.
Gamma Correction: 0.45.
Lens Mount: 3.6mm/6mm/8mm(Optional).
Operation Temperature: -10 degree TO 50 degree.
Operational Humidity: Within 85%RH.
Supplied Voltage: DC12V± 1V /500mA.
Remarks: The camera of this kit can be made into Sony 420TVL/480TVL/540TVL/600TVL (Optional)
The can be also replaced by the camera you like.
