Product Specifications
| Prod Model: |
ELP-DVR9004-D7540F |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Warranty: |
2 Years |
| Type: |
Monitoring System |
| Technology: |
Infrared |
Product Description

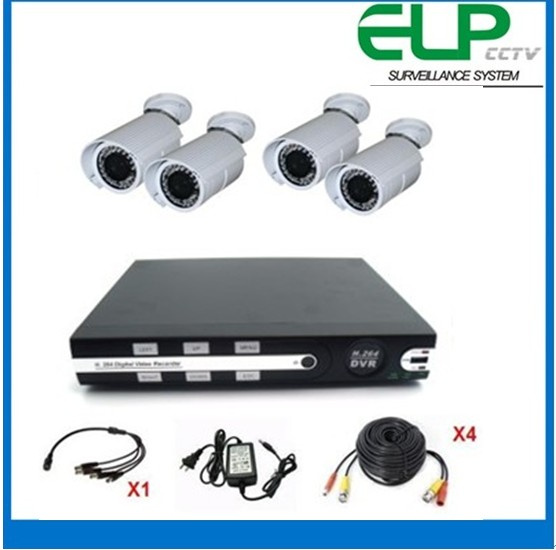

4CH cctv security system kit surveillance camera system ELP-DVR9004-D7540F
Main Features:
1). 1 X H. 264 3G support standalone DVR and 500G hard disk(DVR9004V).
2). 4 X 1/4 Color Sharp CCD, 420TV Line waterproof IR Camera(ELP-D7540F). IR distance: 30M
3). 4 X 20M CCTV Video power cable.
4). 1 X 4ch power adaptor for 4 CCTV Cameras.
DVR specification: Model: ELP-DVR9004
1. Video input/Output: 4CH BNC/1CH BNC
Audio Input/Output: 1CH RCA/1CH RCA
VGA Output: HD VGA output(1280X1024, 1440X990)
2. Preview resolution: PAL 704X576 NTSC: 704X480
3. Playback channel 1/4CH
4. Maximum Record frame rate:
D1 704X576 100FPS/PAL D1 704X480 120FPS/NTSC
HD1 704x288 100FPS/PAL HD1 704X240 120FPS/NTSC
CIF 352X288 100FPS/PAL CIF 352X240 120FPS/NTSC
5. Backup Device: USB2.0 Flash or network, DVD, CD PTZ Control: Support Network function: TCP/IP, PPPoE, DHCP, DDNS, NTP, UPNP, Email, FTP
6. Remote Preview: IE, CMS,
7. No alarm function
8. Language: Simplified Chinese, Traditional Chinese, English, Farsi, Finnish, French, German, Greek, Italian, Hungarian, Japanese, Polish, Portuguese, Russia, Spanish, Thai, Turkish, Vietnamese, Ukrainian, Romanian, Brazilian
Camera specification: ELP-D7540F (IR outdoor waterproof bullet camera)
Image Sensor: 1/4-Inch color Sharp CCD.
Sync Systme: Internal.
Resolution: 420TV Lines.
36pcs IR LED, 30M IR Range
S/N Ratio: 48dB (AGC OFF).
Minimum Illumination: 0.1 Lux/F1.2.
White Balance: ATW / AWC switchable.
Gain Control: AGC ON / OFF switchable.
Electronic Shutter: NTSC: 1/60~1/120, 000 sec/PAL: 1/50~1/120, 000sec.
B. L. C. Function: ON/OFF switchable.
Video Output: Composite 1.0V p-p at 75 ohm.
Gamma Correction: 0.45.
Lens Mount: 3.6mm/6mm/8mm(Optional).
Operation Temperature: -10 degree TO 50 degree.
Operational Humidity: Within 85%RH.
Supplied Voltage: DC12V± 1V /500mA.
Remarks: The camera of this kit can be made into Sony 420TVL/480TVL/540TVL/600TVL (Optional)
The can be also replaced by the camera you like.
|
Model |
ELP-VI8660 |
|
Image Sensor |
1/3 Sony CCD |
|
Effective Pixels |
PAL: 795(H)*596(V) NTSC: 811(H)*508(V) |
|
Horizontal Resolution |
600TVL |
|
Min. Illumination |
0.1-0 Lux( IR) |
|
Power Supply |
AC 24V 200mA |
|
Lens |
4-9mm manual iris varifocal |
|
Electronic Shutter |
NTSC: 1/60-1/100000s; PAL: 1/60-1/100000S |
|
White Balance |
Auto/Manual |
|
IR Range |
35 meters |
|
IR Led |
31PCS |
|
WDR |
120 db(max) |
|
Common |
3D-DNR |
|
S/N Ratio |
> 2dB(AGC OFF) |
|
Video Output |
1.0Vp-p, 75Ω |
|
Motion Detection |
4 Areas |
|
Operating Temperature |
-10° C to +50° C |
|
IR CUT |
√ |
|
G. W. /PC |
2600g |
|
Packing Size/PC |
395*245*145mm |
|
Packing List |
Camera, Bracke |
|
Brand |
ELP/OEM |
