Shenzhen Ailipu Technology Co., Ltd. >> 4CH CCTV Security System

4CH CCTV Security System

Name: 4CH CCTV Security System
Brand: China-Manufacturer-Directory.com
SKU: 661962025
Availability: InStock
Rating: 4.4 (48 reviews)

Supplier:	Shenzhen Ailipu Technology Co., Ltd.
Price:	Negotiable/Piece
Min Order:	10/Set
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	ELP-DVR604HV-6037
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Camera:	outdoor waterproof camera
Type:	Monitoring System
Technology:	Infrared
Application:	All-Round Monitoring
Feature:	Waterproof / Weatherproof
Sensor:	CCD

Product Description

-- Free system design (choose cameras, DVR, the monitor, cables, hard disc ^ as your like)
-- Good quality on CCTV and suitable prices and active service for you.
-- Unlimited Technical Support
-- On CCTV business, we do hope to get a long term business for ever with you.
-- OEM is Acceptable. Your logo and label are supported.

International buyers, please note:

A) Price: FOB Shenzhen (import duties, taxes and shipping cost ^are not included in the price)
B) Please contact with your country's custom office to check the custom taxes and other charges.

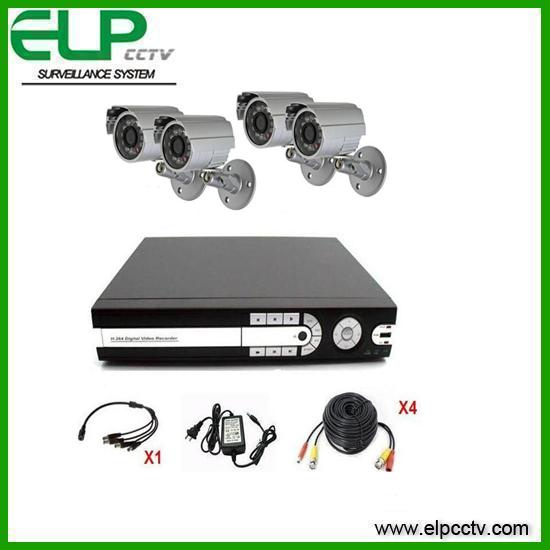

Package Including: 4CH CCTV Security System: ELP-DVR604HV-6037

1). 1 X H. 264 realtime standalone DVR and 500G hard disk(DVR604HV).
2). 4 X 1/4 Color Sharp CCD, 420TV Line waterproof IR Camera(ELP-6037). IR distance: 15M, 24 IR LED
3). 4 X 20M CCTV Video power cable.
4). 1 X 4CH power adaptor for 4 CCTV Cameras.

Shipping:
We also supply shipping service. Samples are usually sent by DHL, UPS^ Bulk order is sent by sea or air parcel.
Will inform you the tracking numbers after delivery.

Lead time:
Samples and small order: Usually 2-5 working days after payment receipt.
Bulk order: Accordingly.
All products have been checked and packaged in good condition.

Model	ELP-DVR604HV
Video System	NTSC / PAL
Video Compression Format	H. 264 compression
GUI OSD	YES
Video Input	4 channels (composite video signal 1 Vp-p 75Ω BNC)
Video Output (BNC)	Main Monitor Output: for stable display
Audio Input/Output	4 audio input, 1 audio output (RCA)
Maximum Recording Rate (CIF)	352× 288 pixels with 100FPS, 768*576 pixels with 25FPS.
Image Quality Setting	Super Best, Well, Good, Medium, Normal and bad
Hard Disk Storage	Accommodates 1 SATA HDD (capacity up to 1TB)
Alarm Input/Output	4 alarm input, 1alarm output
Multiplex Operation	Live display / record / playback / backup / network operations
Recording Mode	Manual / Timer / Motion
Playback mode	Multiple slow and rapid play speeds, manual and single-frame play modes, and support positioning the time by driving the sliding bar
Backup Device	USB 2.0 flash drive / USB moving Hard disk / Network
Pre-alarm Recording	recording for 5 seconds before alarming
Network Protocol	TCP/IP, PPPOE and DDNS
Ethernet	10/100 Base-T. Supports remote control and live view via Ethernet
Web Interface	Internet Explorer (5 users access simultaneously)*Operating System: Windows Vista / XP / 2000;
VGA Interface	Built-in (optional)
Dwell Time (Sequential Channel Switch)	Programmable with adjustable dwell time
IR Remote Control	YES (IR receiver built-in)
Video Loss Detection	YES
Video Adjustable	Hue/ Saturation / Contrast / Brightness
PTZ Control	YES
USB Mouse	YES
Power Source (± 10%)	DC 12V
Key Lock (Password Protection)	YES
System Recovery	System auto recovery after power failure
Support 10 language	English, Spanish, Franch, Russia, Japanese, Thai, Italy, Portuguese, Turkish, Chinese.
Dimensions (mm)	325(W) x 52(H) x 224(D)

Model No.	ELP-6039	ELP-6039	ELP-6040	ELP-6037
Image Sensor	1/3' ' Sony CCD			1/4" sharp
Horizontal Resolution	420 TVL	480 TVL	540 TVL	420 TVL
Pixels	PAL: 500(H)× 582(V) NTSC: 510(H)× 492(V)	PAL: 752(H)× 582(V) NTSC: 768(H)× 494(V)	PAL: 795(H)× 596(V) NTSC: 811(H)× 508(V)	PAL: 512(H)× 582(V) NTSC: 512(H)× 494(V)
Signal System	PAL / NTSC
Sync System	Internal
Min Illumination	0Lux /F1.2
IR LEDs	36
IR Range	15m
S/N Ratio	≥ 48dB (AGC OFF)
Video Output	BNC 1.0 Vp-p, 75Ω
BLC	ON/OFF optional
AGC	ON/OFF optional
Lens	3.6/6mm(optional)
Power Consumption	DC12V (+-5%)
Operational Humidity	within 85%RH.
Temperature	-10-60º C
