| Supplier: | Shenzhen Vangold Electronics Co., Ltd. |
|---|---|
| Price: | Negotiable |
| Min Order: | 1set |
| Quantity:: | |
| Trade Terms: | FOB or CIF |
|
|

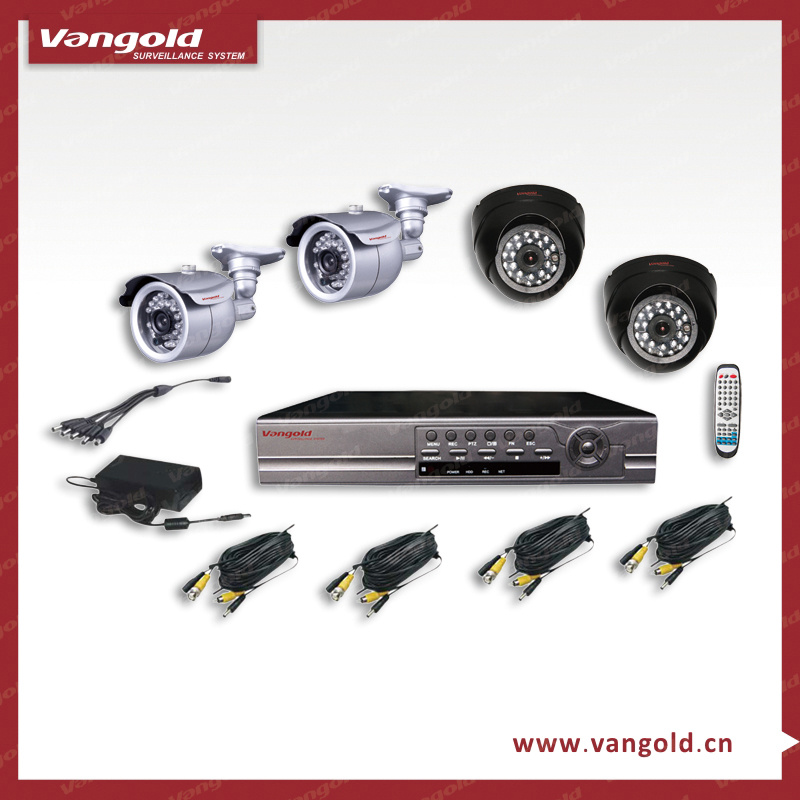

| Prod Model: | VG-H7404AK |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Video Compression: | H. 264 |
| Video Input: | 4 CH BNC |
| Lens: | 6mm |
| Resolution: | 420tvl |
| Sensor: | 1/4" Sharp CCD |
| Specification | VG-H7404 | ||
| Video Input | 4 CH BNC | ||
| Video Output | 1CH BNC, 1VGA | ||
| Audio Input | 1CH RCA | ||
| Audio Output | 1CH RCA | ||
| Network | 1RJ45, 10/100MB. LAN. WAN. DDNS | ||
| Backup | USB 2.1, Internet | ||
| Video Compression | H. 264 | ||
| Live Display Resolution | NTSC: 720X480/PAL: 720X576 | ||
| Recording Speed | NTSC: 352X240 120FPS/PAL: 352X288 100FPS | ||
| Recording Mode | Motion, Schedule, Manual | ||
| Communication Port | RS485 | ||
| Replay Search | Forward Fast X1/2/4/8/16/32 | ||
| Controller | USB2.0 Mouse, Remote Control | ||
| Power Input-output | AC 100-240V, 50-60HZ/DC12V 2.0A | ||
| Dimension/Weight | 250(W)X44(H)X235(L)/2.5KG | ||
| HDD | 1 SATA HDD, Max 2TB HDD Supported | ||
| Language | English/Chinese/Russian/Spanish/Dutch/Turkish/ | ||
| French/Portuguese/Hungary/Italian/Danish/Czech/Polish/Thai | |||
| Model | VG-6104LR | ||
| Sensor | 1/4" SHARP CCD | ||
| Effective Pixels | PAL: 537(H)× 597(V)NTSC: 537(H)× 505(V) | ||
| Horizontal Resolution | 420TVL | ||
| Minimum Illumination | 0Lux/F1.2(IR ON) | ||
| S/N Ratio | > 48dB | ||
| Video Ouput | 1.0VP-P/75Ω | ||
| White Balance | Auto track | ||
| AGC | Auto | ||
| BLC | ON/OFF | ||
| Electronic Shutter | 1/50(1/60)~1/120, 000s | ||
| Gamma Correction | 0.45 | ||
| SYNC System | Internal | ||
| IR LEDs | 36pcs Φ 5 IR LEDs | ||
| Lens | 6mm(selectable) | ||
| IR Distance | 30m | ||
| Power Requirement (± 10%) | DC12V ± 1V | ||
| Operation Temp. | -10° C~50° C | ||
| Dimensions ( mm ) | 75(W)x70(H)x115(L) | ||
| Weight | 460g | ||
| Model | VG-164LR | ||
| Sensor | 1/4" Color Sharp CCD | ||
| Effective Pixels | PAL: 537(H)× 597(V)NTSC: 537(H)× 505(V) | ||
| Horizontal Resolution | 420TVL | ||
| Minimum Illumination | 0.8-0 Lux/F1.2(IR ON) | ||
| S/N ratio | > 48dB | ||
| Video Ouput | 1.0VP-P/75Ω | ||
| White Balance | Auto track | ||
| AGC | Auto | ||
| BLC | ON/OFF | ||
| Electronic Shutter | 1/50(1/60)~1/120, 000s | ||
| Gamma correction | 0.45 | ||
| SYNC System | Internal | ||
| IR LEDs | 24pcs IR LEDs | ||
| Lens | 6mm | ||
| IR Distance | 20m | ||
| Power Requirement (± 10%) | DC12V ± 1V | ||
| Operation Temp. | -10° C~50° C | ||
| Dimensions ( cm ) | 12(L)x12(W)x10(H) | ||
| Weight | 220g | ||
