Product Specifications
| Prod Model: |
VG-H7404BK |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Video Compression: |
H. 264 |
| Video Input: |
4 CH BNC |
| Lens: |
6mm(Selectable) |
| Resolution: |
420tvl |
| Sensor: |
1/4" Sharp CCD |
Product Description

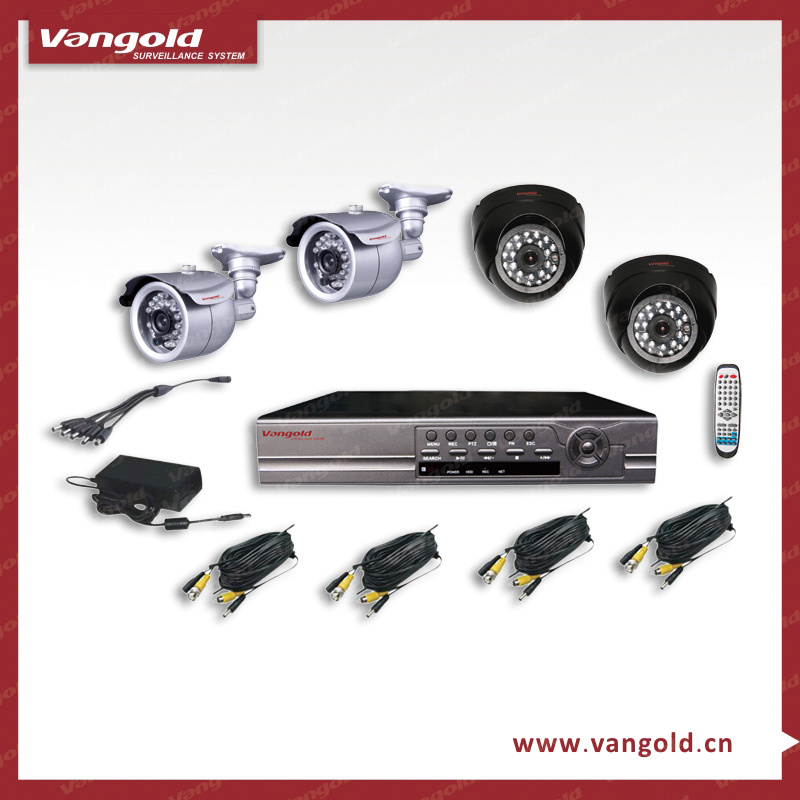

4CH DIY DVR Kit Feature:
1. 1PCS VG-H7404 H. 264 Digital Video Recorder
2. 2PCS VG-6105LR (1/4 Sony 420TVL) IR Camera (36PCS IR LEDs)+2PCS VG-165LR (1/4 Sony 420TVL, Plastic shell) IR Camera (24PCS IR LEDs)
3. 4PCS 60fts Cables
4. 1PCS Power Supply
5. 1PCS 5 Way Power Cable Spiliter
6. 1PCS Remote Controller
|
Specification |
VG-H7404 |
|
Video Input |
4 CH BNC |
|
Video Output |
1CH BNC, 1VGA |
|
Audio Input |
1CH RCA |
|
Audio Output |
1CH RCA |
|
Network |
1RJ45, 10/100MB. LAN. WAN. DDNS |
|
Backup |
USB 2.1, Internet |
|
Video Compression |
H. 264 |
|
Live Display Resolution |
NTSC: 720X480/PAL: 720X576 |
|
Recording Speed |
NTSC: 352X240 120FPS/PAL: 352X288 100FPS |
|
Recording Mode |
Motion, Schedule, Manual |
|
Communication Port |
RS485 |
|
Replay Search |
Forward Fast X1 / 2 / 4 / 8 / 16 / 32 |
|
Controller |
USB2.0 Mouse, Remote Control |
|
Power Input-output |
AC 100-240V, 50-60HZ/DC12V 2.0A |
|
Dimension/Weight |
250(W)X44(H)X235(L)/2.5KG |
|
HDD |
1 SATA HDD, Max 2TB HDD Supported |
|
Language |
English/Chinese/Russian/Spanish/Dutch/Turkish/
French/Portuguese/Hungary/Italian/Danish/Czech/Polish/Thai |
|
Model |
VG-6105LR |
|
Sensor |
1/4" SONY CCD |
|
Effective Pixels |
PAL: 537(H)× 597(V)NTSC: 537(H)× 505(V) |
|
Horizontal Resolution |
420TVL |
|
Minimum Illumination |
0Lux/F1.2(IR ON) |
|
S/N Ratio |
> 48dB |
|
Video Ouput |
1.0VP-P/75Ω |
|
White Balance |
Auto track |
|
AGC |
Auto |
|
BLC |
ON/OFF |
|
Electronic Shutter |
1/50(1/60)~1/120, 000s |
|
Gamma Correction |
0.45 |
|
SYNC System |
Internal |
|
IR LEDs |
36pcs Φ 5 IR LEDs |
|
Lens |
6mm(selectable) |
|
IR Distance |
30m |
|
Power Requirement (± 10%) |
DC12V ± 1V |
|
Operation Temp. |
-10° C~50° C |
|
Dimensions ( mm ) |
75(W)x70(H)x115(L) |
|
Weight |
460g |
|
Model |
VG-165LR |
|
Sensor |
1/4" Color Sony CCD |
|
Effective Pixels |
PAL: 537(H)× 597(V)NTSC: 537(H)× 505(V) |
|
Horizontal Resolution |
420TVL |
|
Minimum Illumination |
0.8-0 Lux/F1.2(IR ON) |
|
S/N ratio |
> 48dB |
|
Video Ouput |
1.0VP-P/75Ω |
|
White Balance |
Auto track |
|
AGC |
Auto |
|
BLC |
ON/OFF |
|
Electronic Shutter |
1/50(1/60)~1/120, 000s |
|
Gamma correction |
0.45 |
|
SYNC System |
Internal |
|
IR LEDs |
24pcs IR LEDs |
|
Lens |
6mm |
|
IR Distance |
20m |
|
Power Requirement (± 10%) |
DC12V ± 1V |
|
Operation Temp. |
-10° C~50° C |
|
Dimensions ( cm ) |
12(L)x12(W)x10(H) |
|
Weight |
220g |
