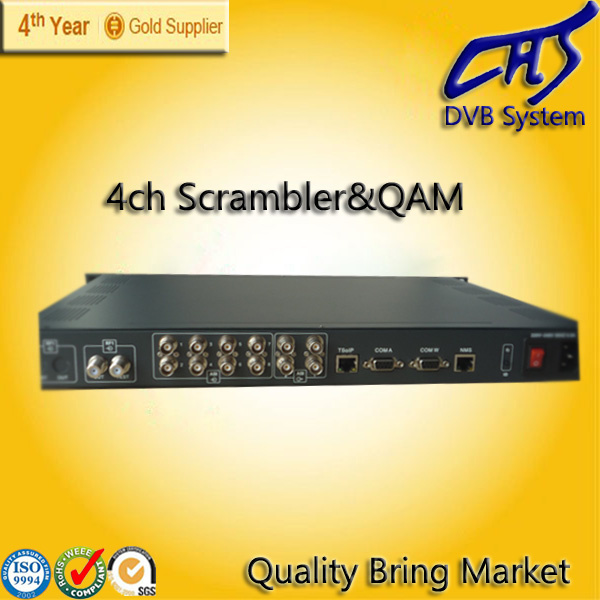

4CH DVB-C Scrambler Modulator

Name: 4CH DVB-C Scrambler Modulator
Brand: China-Manufacturer-Directory.com
SKU: 686333772
Availability: InStock
Rating: 4.9 (110 reviews)

Supplier:	Chengdu Haoteng Technology Co., Ltd.
Price:	US $ 3500/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	HT104-4
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Input Interface:	4asi in(DVB Standard)

Product Description

4CH DVB-C SCRAMBLER MODULATOR
Outline
Fully comply with DVB-C (EN300 429) and ITU-T J.83A/B/C standard.
Support DVB common scrambling system ETR289; simulcrypt ETSI 101197and ETSI 103 197.
Support 4ch ASI input, Support 4ch multiplexing 4ch scrambling and 4ch QAM modulating.
Co-work with 4 Simulcrypt CAS. Support LCN,SDT,NIT inserting
Supporting 16QAM, 32QAM, 64QAM, 128QAM and 256QAM constellation modes
Support the PSI/SI editing and inserting. PCR fine-tuning.
Excellent RF output ,MER≥40db..support NMS

Technical Specifications

	input	4ASI input
	output	4 RF output
	PID remapping	256(each channel)128
	Function	PID remapping (manual and automated)
		PCR fine-tuning
		PSI/SI list automatic generation
scrambling	Max Simulcrypt CA	4
	standard	ETSI 101 197 \ ETSI 103 197
	Connection	Local/remote connection
modulation	QAM	4
	standard	EN300 429 \ ITU-T J.83A/B/C
	Symbol rate	5.0 ~ 8.0Msps , 1ksps stepping
	Modulating mode	16QAM \ 32QAM \ 64QAM \ 128QAM \ 256QAM
	FEC	RS(204, 188)
RF output	interface	F , 75Ωimpedance
	Frequency range	110 ~ 860MHz , 1kHz stepping
	Output level	-16dBm ~ -0dBm(each QAM carrier), 0.5dB stepping
	MER	≥40db
	ACLR	-55dBC
System	Support LCN , NIT \ EPG inserting \ support PID pass-through \ NMS
	Chinese/English operation interface
	Support upgrade
	Temperature	0 ~ 45 'C ( Operation ) ; -20 ~ 80' C ( Storage )
	Power	AC100V±1050/60Hz AC 220V±10%,50/60HZ
	Consumption	50W
