Chengdu Haoteng Technology Co., Ltd. >> HT201C DVB-C Set Top Box

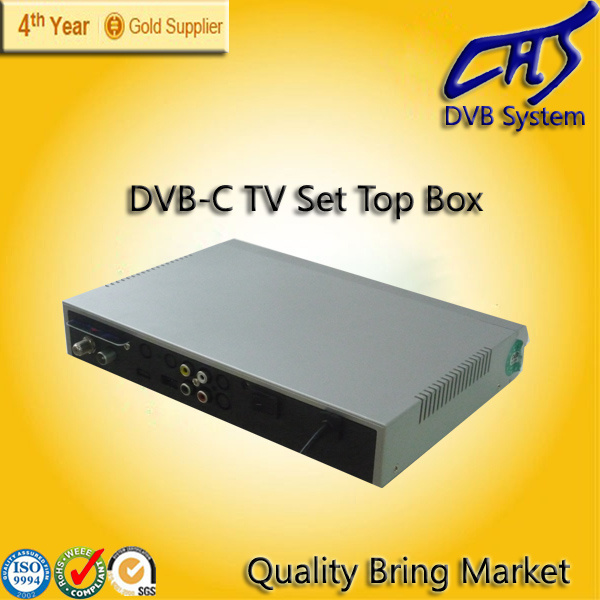

HT201C DVB-C Set Top Box

Name: HT201C DVB-C Set Top Box
Brand: china-manufacturer-directory.com
SKU: 676546632
Availability: InStock
Rating: 4.5 (97 reviews)

Supplier:	Chengdu Haoteng Technology Co., Ltd.
Price:	US $ 20-35/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	HT201C
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Comply:	DVB-C

Product Description

1.QAM Digital TV Decoder
2.Digital TV Receiver
3.Comply DVB-C Standard
4.QAM Set Top Box

Features
Comply the DVB-C/MPEG-2 standard
Full compatible with high-frequency head:51-860MHz
Support 16, 32, 64, 128, 256QAM modulation mode
Symbol rate is 3.6~6.952Mbaud
Hi-Fi stereo output
Store 200 programs at least
Support S-VHS video output, dual AV output
Auto identification of NTSC/PAL/SECAM
Support RS-232 software upgrades

Input
Input Frequency Range	51~860MHz
Input Signal Level	48dBV~85dBV
Channel Bandwidth	8MHz
Symbol Rate	3.6~6.952Ms/S
Modulation Mode	16, 32, 64.128, 256QAM
Input Reflection Loss	> 8dB
Video Output
Standard	ISO/IEC13818-2MP@ML
Video Mode	4: 3, 16.9
Resolution	MAX720576PAL MAX720480NTSC
Video Format	PAL/NTSC
Video Output Range	700± 30mV
Video Sync Range	3300± 20mV
Out of Band Interference Rejection Ratio	≤ -35dB
Video Amplitude Frequency	± 0.8dB( ≤ 4.8MHz), ± 1dB(4.8MHz-5MHz), +0.5/-4dB(5.5MHz)
Video SNR	≥ 56dB
Audio Decoding
Voice Decoding	MPEG-1 Layer1 and 2
Frequency Response	20Hz-20KHz
Channel Mode	Left/Left, Right/Right, Left/Right
Sampling Frequency	32KHz/44.1KHz/48KHz
Output Level	0± 6dBu
Audio Distortion	≤ 1.5% (60Hz-18KHz)
Audio Amplitude Frequency	+1/-2dB(60Hz-18KHz), +1/-3dB(20Hz-20KHz)
Audio SNR	≥ 70dB
Others
RF input	IEC169-2F female, 75 Ω
Video output	Composite PAL-D signal (RCA interface, 75 Ω )
Audio output	RCA interface, 600 Ω
Y/C output	S-video Interface

Chengdu Haoteng Technology Co., Ltd. was established in 2003 in Chengdu, China. Which concentrates on the research, production, sale and engineer service of digital TV broadcasting products, with a group of experts and doctors, advanced production facilities and testing equipment, forming a worldwide sales network and customer groups.
DTV products include: MPEG-2/4 encoder, H. 264 HD/SD encoder, DVB-T COFDM modulator, DVB-S/S2 modulator, QPSK/QAM modulator, multiplexer, scrambler, MMDS/MUDS transmitter, DVB-C/S/T STB.
IPTV products include: IPTV media player, MPEG-4/H. 264 IPTV encoder, P2P IPTV streaming Server, Operation Support System(OSS).
As a television network investor, we have accumulated a great deal of experience in network operation of digital TV and IPTV system
Our mission is to exceed customer's satisfaction and requirements, fulfilling our assurance of high quality products. We look forward to creating mutually beneficial business with you.
