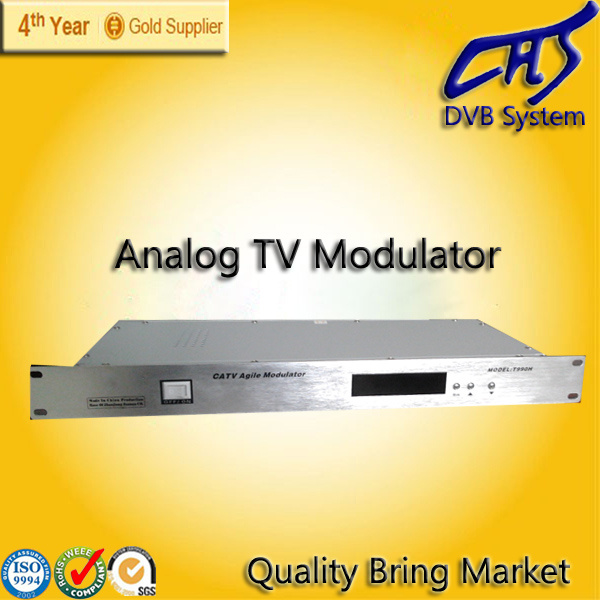

Analog Modulator (HT100-5)

Name: Analog Modulator (HT100-5)
Brand: China-Manufacturer-Directory.com
SKU: 676710412
Availability: InStock
Rating: 4.5 (91 reviews)

Supplier:	Chengdu Haoteng Technology Co., Ltd.
Price:	Negotiable/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	HT100-5
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Comply:	47-860MHz

Product Description

860MHz PROFESSIONAL AGILE MODULATOR
Outline
Double digital PLL, CPU control;RF output:47~860MHz
4 standard channels built-in for user's optional.
Audio carrier 4.5/5.5/6.0/6.5MHz is adjustable on panel;Channel carrier can be trimmed by 0.25 MHz Automatic storage, memory after power off...

Item	Parameters
RF
Output Frequency	45~870 MHz
Max Output Level	110 dBuv
RF Output Range	28 dB
A/V Ratio	-13~20 dB
Sputious Rejection	-60 dB
Frequency Stability	±3 KHz
Output Impedance	75 Ω
Output Reject Loss	-16 DBMin
Video Mod Depth	87.50% TYP
C/N	66 dB
Video
Input Level		1 Vp-p
Differential Gain		5%
Sifferential phase		5°
C/L Delay		≤45 ns
Video S/N		≥45 dB
Freq Rrsponse Within		±0.75 dBMax
Modulation		72.5~92.5%
Video IF Output Freq		38 MHz
Video S/N		≥50 DB
Audio
Input Level		0 dBm±6
Audio Carrier Frequency		4.5\5.5\6.0\6.5 MHz
Audio Dev		±50 KHz
Audio Fre Response	±1.5 dB
Audio S/N	≥55 dB
Deviation	±0.5 dB
Pre-emphasis	50 u SEC
General
Power Supply	220/110 V
Fuse	RF1-20~0.5 A
Temperature Range	0~40
Dimensions	420X195X45 mm

Chengdu Haoteng Technology Co., Ltd. was established in 2003 in Chengdu, China. Which concentrates on the research, production, sale and engineer service of digital TV broadcasting products, with a group of experts and doctors, advanced production facilities and testing equipment, forming a worldwide sales network and customer groups.
DTV products include: MPEG-2/4 encoder, H. 264 HD/SD encoder, DVB-T COFDM modulator, DVB-S/S2 modulator, QPSK/QAM modulator, multiplexer, scrambler, MMDS/MUDS transmitter, DVB-C/S/T STB.
IPTV products include: IPTV media player, MPEG-4/H. 264 IPTV encoder, P2P IPTV streaming Server, Operation Support System(OSS).
As a television network investor, we have accumulated a great deal of experience in network operation of digital TV and IPTV system
Our mission is to exceed customer's satisfaction and requirements, fulfilling our assurance of high quality products. We look forward to creating mutually beneficial business with you.
