4Poles 63A Residual Current Circuit Breaker (RCCB, RCBO, RCDS)

Name: 4Poles 63A Residual Current Circuit Breaker (RCCB, RCBO, RCDS)
Brand: china-manufacturer-directory.com
SKU: 698099705
Availability: InStock
Rating: 4.4 (142 reviews)

Supplier:	Yueqing Eidell Electric Technology Co., Ltd.
Price:	Negotiable/Piece
Min Order:	200/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	EDL36
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia
Current:	16~100amper
Poles:	2 and 4 Poles
Voltage:	240V/415V
Break Capacity:	6kVA
Type:	Circuit Breaker
Function:	Leakage Protection
Arc-extinguishing Medium:	Air
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Manual Type
Speed:	High-Speed Circuit Breaker
Structure:	Moulded Case Circuit Breaker
Installation:	DIN Rail

Product Description

Specifications
1)ID Residual Current Circuit Breaker
2)functions of isolation, switching and earth leakage protection
3)CE, ISO9001
4)OEM

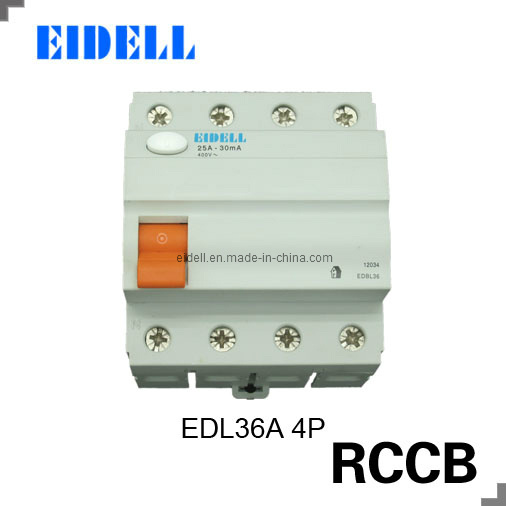

ID Residual Current Circuit Breaker, RCCB
General
Application
The ID RCCB residual current device provide the functions of isolation, switching and earth leakage protection of electrical circuits.
They have a residual current operated electromechanical release which operates without any auxiliary source of supply to open a circuit automatically in the case of an earth leakage fault between phase and earth greater than or equal to a threshold of 10mA, 30mA, or 500mA.
Comply with standard: IEC1008
Rated current: 16, 25, 40, 63, 80, 100A
Rated voltage: 240/415V
Poles: 2, 4
Rated residual non-operating current In: 0.5In
Rated limit short circuit current: 6000A

PARAMETER	RATING
Type	Electro-magnetic
Number of poles	2P4P
Rated making and breaking capacity	630A
Rated Current(In)	25, 40, 63, 80, 100A
Rated Voltage(Un)	AC 2P: 230/240V 4P: 400/415V
Rated residual operating current( In)	30100300500mA
Rated residual non-operation Current( Ino)	0.5In
Residual operating current scope	0.5In~In
Residual current breaking time	≤ 0.3s
Residual current trip characteristics	A, AC
Ultimate short-circuit breaking capacity (Inc)	6000A
Endurance	≥ 4000
Connection Capacity	≤ 25mm 2
Connection terminal torque (Max. )	2.0Nm
Degree of protection	IP20
Standard	IEC/EN610018
