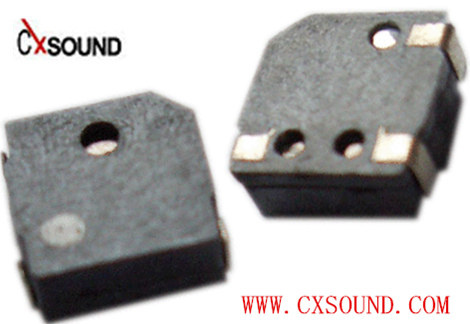

5.0*5.0*2.0mm Mini SMD Buzzer for Keypad Tone, Dumb Terminal in Hand, Instrument
Product Specifications
| Prod Model: |
CX5050020-12R(3V)-4000-SM-F |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
5.0*5.0mm |
| Hight: |
1.9mm |
| Oscillation Frequency: |
4000Hz |
| Rated Voltage: |
3V |
| Operating Voltage: |
2~ 4V |
| Current Consumption: |
Max. 110mA |
| Sound Pressure Level: |
Min. 75 at Rated Voltage at 10cm |
| Category: |
Buzzer |
| Transmission Mode: |
Air-conduction |
| Style: |
Mini |
Product Description
Basic Info.
Model NO. ？ ？ ？ ？ ？ ？ ？ ？ ？ ？: ？？CX5050020-12R(3V)-4000-SM-F
Speaker Material ？ ？ ？ : ？ plastic
Diamater ？ ？ ？ ？ ？ ？ ？ ？ ？ ？ ？: ？ 5.0*5.0 mm？
Buzzer ？ ？ type ？ ？ ？ ？ ？ ？ : ？SMD type
Impedance ？ ？ ？ ？ ？ ？ ？ ？ ？: ？ 12 Ohm
Power Supply ？ ？ ？ ？ ？ ？ : ？ 3V
Sound Pressure Level :MIN. 75 ？at Rated Voltage at 10cm
Delivery TIME:
Delivery Time ？ ？ ？ ？ : ？ Within？1 week？
Export Markets ？ ？ ？: ？Global
Additional Info.
Trademark ？ ？ ？ ？ ？ : ？Cxsound
Standard ？ ？ ？ ？ ？ ？ ？ : IS0 9001:2008 ？; RoHs; ？ TS/TS16949:2009
Origin ？ ？ ？ ？ ？ ？ ？ ？ ？ ？ : Shangzhou ？China
Production Capacity : 20000/Month
Usage:
Equipment, warning tone ,keypad tone,？dumb terminal？ in hand,instrument
Package:
？Taping Package
？
？
|
Item |
Unit |
CX5050020-12R(3V)-4000-SM-F |
|
Oscillation Frequency |
Hz |
4000 |
|
Operating Voltage |
Vo-p |
2 ~ 4 |
|
Rated Voltage |
Vo-p |
3 |
|
Current Consumption |
mA |
MAX. 110 |
|
Sound Pressure Level |
dB |
MIN. 75 at Rated Voltage at 10cm |
|
Coil Resistance |
Ω |
12±3 |
|
Dimension |
mm |
5.0 x 5.0 x H1.9 |
|
Operating Temperature |
ºC |
-20 ~ +70 |
|
Weight (MAX) |
gram |
0.5 |
