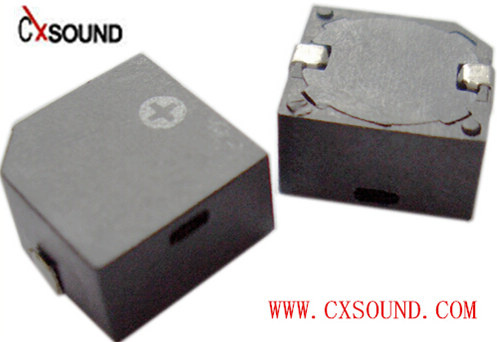

SMD Type Buzzer Sound From Beside for Warning Tone (CX9655SC-16R(3.6V)-2700-SM-F)
Product Specifications
| Prod Model: |
CX9655SC-16R(3.6V)-2700-SM-F |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Dimension: |
9.6*9.6mm |
| Hight: |
5.5mm |
| Oscillation Frequency: |
2700Hz |
| Rated Voltage: |
5V |
| Operating Voltage: |
4~7 V |
| Current Consumption: |
Max.30mA |
| Sound Pressure Level: |
Min. 85 at Rated Voltage at 10cm |
| Category: |
Buzzer |
| Transmission Mode: |
Air-conduction |
| Style: |
Mini |
| Cone: |
Vibration Piece |
Product Description
Basic Info.
Model NO. ？ ？ ？ ？ ？ ？ ？ ？ ？: ？？CX9655SC-16R(3.6V)-2700-SM-F
Buzzer Material ？ ？ ？ : ？ plastic
Diamater ？ ？ ？ ？ ？ ？ ？ ？ ？ ？ ？: ？ 9.6*9.6*5.5 mm？
Buzzer ？ ？ type ？ ？ ？ ？ ？ ？: ？SMD type
Power Supply ？ ？ ？ ？ ？ ？ : ？3.6V
Sound Pressure Level :MIN. 85at Rated Voltage at 10cm
Delivery TIME:
Delivery Time ？ ？ ？ ？ : ？ Within？1 week？
Export Markets ？ ？ ？: ？Global
Additional Info.
Trademark ？ ？ ？ ？ ？ : ？Cxsound
Standard ？ ？ ？ ？ ？ ？ ？ : IS0 9001:2008 ？; RoHs; ？ TS/TS16949:2009
Origin ？ ？ ？ ？ ？ ？ ？ ？ ？ ？ : Shangzhou ？China
Production Capacity : 20000/Month
Usage:
equipment, warning tone ,keypad tone,？dumb terminal？ in hand,instrument
Package:
Taping package
|
Item |
Unit |
CX9655SC-16R(3.6V)-2700-SM-F |
|
Oscillation Frequency |
KHz |
2.7 ± 0.3 |
|
Operating Voltage |
VDC |
4 ~ 7 |
|
Rated Voltage |
VDC |
5 |
|
Current Consumption |
mA |
MAX. 30 |
|
Sound Pressure Level |
dB |
MIN. 85 at Rated Voltage at 10cm |
|
Tone/Pulse Rate |
|
Constant |
|
Dimension |
mm |
9.6 x 9.6 x H5.5 |
|
Operating Temperature |
ºC |
-20 ~ +70 |
|
Weight (MAX) |
gram |
1.5 |
Changzhou Cxsound Electronic Co., Ltd located in Changzhou Jiangsu province. Near Shanghai, Nanjing, Suzhou. And there was sub-factory in Shenzhen.
The company prefessioned On producing The speaker, receiver, microphone, buzzer and some electro-acoustic Components.
The Products used in communications, computer peripheral products, electronic digital products,
Multimedia products, home appliances, medical equipment, alarm devices and industrial equipment And other fields.
The company has always been in good faith, cooperation, win-win business philosophy, proactive efforts to meet customer design requirements, sincerely hope to have the opportunity to reach business and your cooperation, if you have any needs, please contact us.
The company' S focus is in supplying the excellent the products and supply first-class service, open up the Marketing channel, and expand the market share. The market including Korea, Japan, Hong Kong, Taiwan, Macau, Singapore, American, Spain, Russia, Turkey and the others user on the global. Cxsound would like to grow with You stronger together.
