Product Specifications
| Prod Model: |
SWM952 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Dimension: |
8365*3220*3390 |
| Moving Type: |
Wheel Loader |
| Lifting Time (S): |
5.9 |
| Bucket Capacity (M 3 ): |
2.5 |
| Min Turning Radius (Mm): |
7150 |
| Hydraulic Cycle Time (S): |
11.4 |
| Walking Mode: |
Wheeled |
| Condition: |
New |
| Type: |
Large Loader |
| Certification: |
BV |
| Load And Unload Method: |
Front Discharge |
Product Description

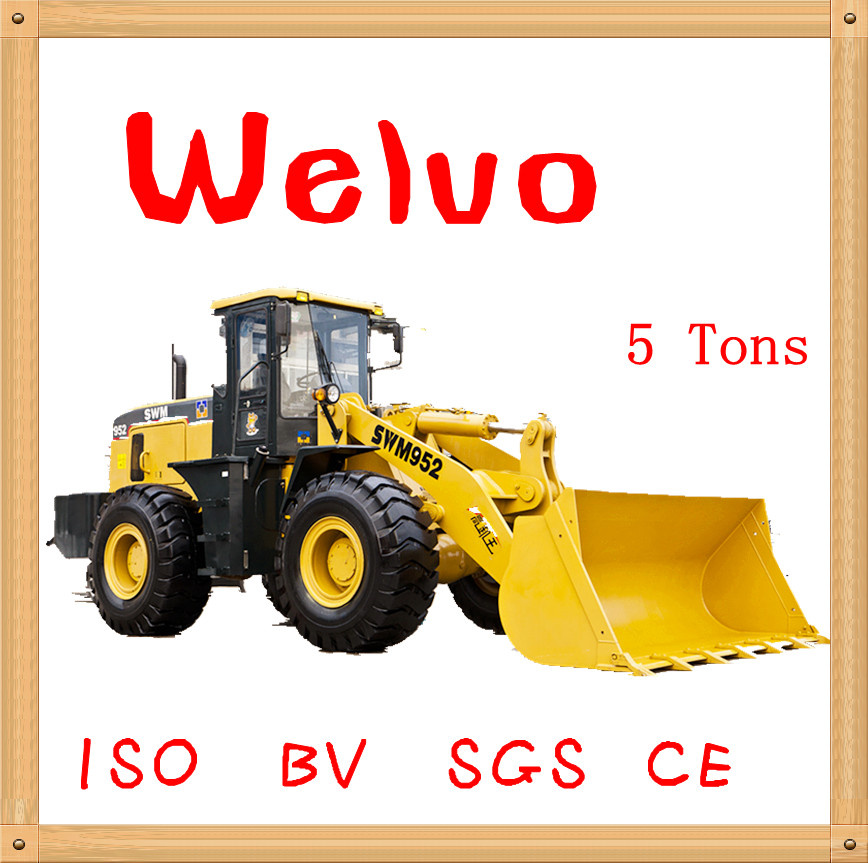

5 Tons Heavy Construction Equipment with CE for sale (SWM952)
1. Heavy Duty Design
(1). The 5 Tons Heavy Construction Equipment with CE uses a high-rigidity frame which is made of thickened steel and characterized by a large frame structure. The machine has the advantages of load-proof, automatic robot welding andanti-torsion.
(2). Equipped with a large-wheelbase underpan, the 5 Tons Heavy Construction Equipment with CE can enhance the driving and operational stability, increase the traction and so on.
(3). With a heavy-duty transmission system featuring high overload resistance coefficient, fatigue resistance and long service life, the 5 Tons Heavy Construction Equipment with CE is especially suitable for continuous high-intensity operation.
(4). Its large-diameter front and rear transmission shaft has the advantages of powerful anti-torsion capability, difficult deformation under heavy load, and stable transmission of kinetic energy.
|
Main Technical Parameter of SWM952 |
|
Item |
Parameter |
|
Rated load (kg) |
5000 |
|
Bucket capacity (m 3 ) |
2.5 |
|
Wheel tread (mm) |
2200 |
|
Wheel base (mm) |
3310 |
|
Min turning radius (mm) |
7150 |
|
Min ground clearance (mm) |
395 |
|
Dumping height (mm) |
3580 |
|
Corresponding dumping reach (mm) |
1292 |
|
Lifting time (s) |
5.9 |
|
Hydraulic cycle time (s) |
11.4 |
|
Maximum excavating force (KN) |
186 |
|
Drive mode |
Four are Drive |
|
Machine weight (kg) |
17150 |
|
Overall dimensions (mm) (Length*width*height) |
8365*3220*3390 |
|
Engine model |
TWD615G-220 |
|
Rated power of engine (kw) |
162 |
|
Rated speed of engine (rpm) |
2200 |
Qingdao Welvo Import & Export Co., Ltd is located in the most vigorous city in China, QINGDAO city, which itself is a Port.
Our company is the only Importing and Exporting Company invested by our Head Company, Shandong Weili World Machinery Co., Ltd. The factory is located in Qingzhou City, Shandong Province, and it is one big and professional Wheel Loader and Forklift manufacturer.
We have many years experience in exporting the machinery products, with the main products are as construction machinery, mining machinery, agricultural machinery and spare parts for all machineries. And the specific products are Wheel Loader, Forklift, Roller, Excavator, Motor Grader, Dredger, Gold Mining Machines, Environmental Protection Machines, etc.
Borderless Friendship, Endless Cooperation. The company expects friendship, cooperation and development.
