Product Specifications
| Prod Model: |
ZL16F |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Warranty: |
1 Year |
| Engine Details: |
Weifang Zh4100k14-3 |
| Rated Load: |
1600kgs |
| Rated Power: |
45kw(61HP) |
| Min Turning Radius: |
4500mm |
| Overall Width: |
1910mm |
| Driving System: |
Fluid Converter |
| Bucket Capacity: |
0.9 M3 |
Product Description

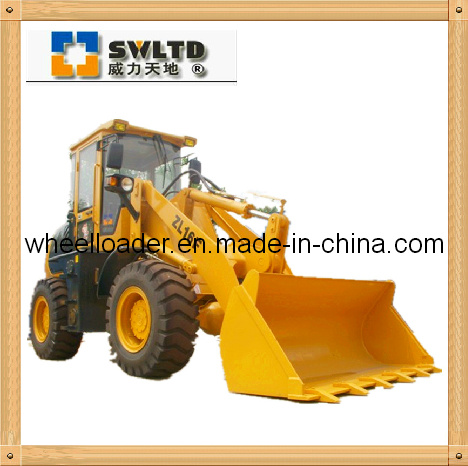

Wheel Loader 0.6cbm Bucket (ZL16F), shovel loader CE
Features
1. The wheel loader uses a hydro-mechanical transmission which can make full use of engine power, and can have an automatic variable transmission according to the external resistance. It avoids power failure of the engine due to the suddenly increased external load. The wheel loader can absorb and eliminate the vibration and impact of external load on engine. It protects the drive system and engine, increases the service life, and facilitates the operation and achieves higher economical and production efficiency.
2. The wheel loader uses the central articulated frame and load sensing hydraulic steering gear. The machine can achieve short turning radius and superposition of the front and rear tracks upon turning (this will ensure safe driving). The wheel loader has the advantages of easy operation on narrow sites, flexible operation, safety, convenient maintenance and so on.
3. The wheel loader uses four-wheel drive, low-pressure wide base off-road tires and an oscillating rear axle, so it has sound off-road performance, good trafficability and larger traction.
4. The wheel loader is equipped with a single-pipe type hydraulic four-wheel brake.
5. The wheel loader has a fully enclosed cab and the seats have the functions of vibration reduction and easyadjustment. The wheel loader offers the driver a comfortable drive and wide view.
Specification
1.0 Engine details:
(1) Model: Weichai HD 4100Y4
(2) Engine type: In-line, water-cooled, four-cycle diesel Engine.
(3) Rated Power: 45KW (61.2 H. P. )
(4) Rated Speed: 2200 r/min (rpm)
(5) Fuel Consumption ratio in standard working condition: 251.6g/kw. H
2.0 Transmission System
(1) Type: Fixed-spindle Power shift
(2) Clutch control oil pressure: 1373~1569MPa
(3) Rated input speed: 2500 (rpm)
3.0 Bucket and wheel loader information
(1) Bucket Capacity: 0.6 m3
(2) Bucket width: 1700mm
(3) Bucket type: Heavy-duty bolt on teeth
(4) Max. Breakout Force: A. Tipper hopper cylinder: 4887, Lifting Cylinder: 2856
(5) Rated Load: 1200-1500kg
(6) Operating Weight: 3916kg
4.0 Overall Dimensions:
(1) Overall Length (Bucket on ground position): 5160mm
(2) Overall Height
(a) Ground to Cabin Top: 2700mm
(b) Ground to exhaust pipe: It is below from the top of cab
(c) Dumping Height: 3200mm
(3) Overall Width: 1900mm
5.0 Operating Specifications
(1) Steering System: Articulated Frame with hydraulic power steering
(2) Min Turning Radius: 4532mm
(3) Driving System: Hydraulic converter
6.0 Brake System
(1) Service Brake: Hydraulic disc brake on four wheels
(2) Parking Brake: Hand operated
