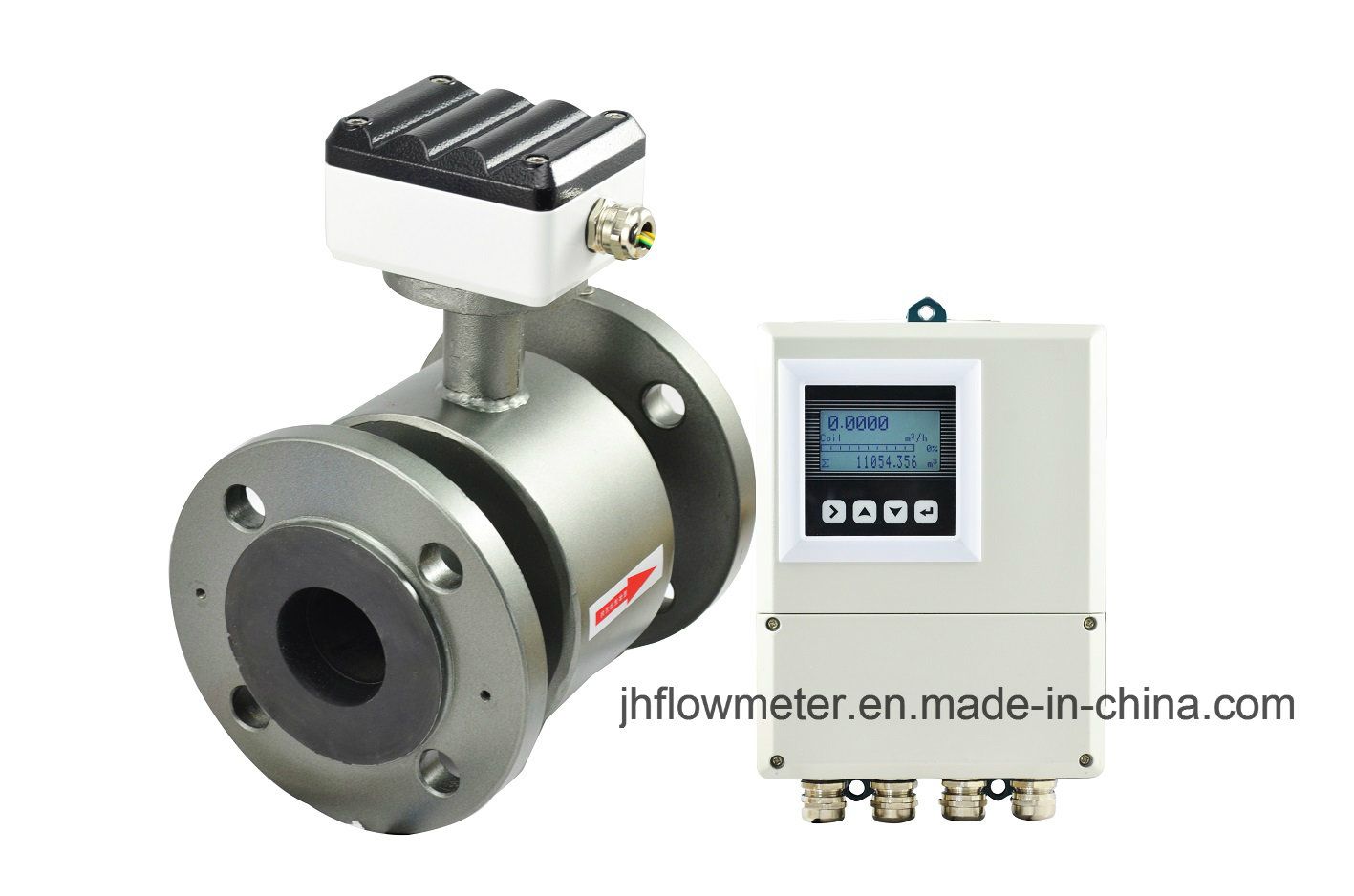

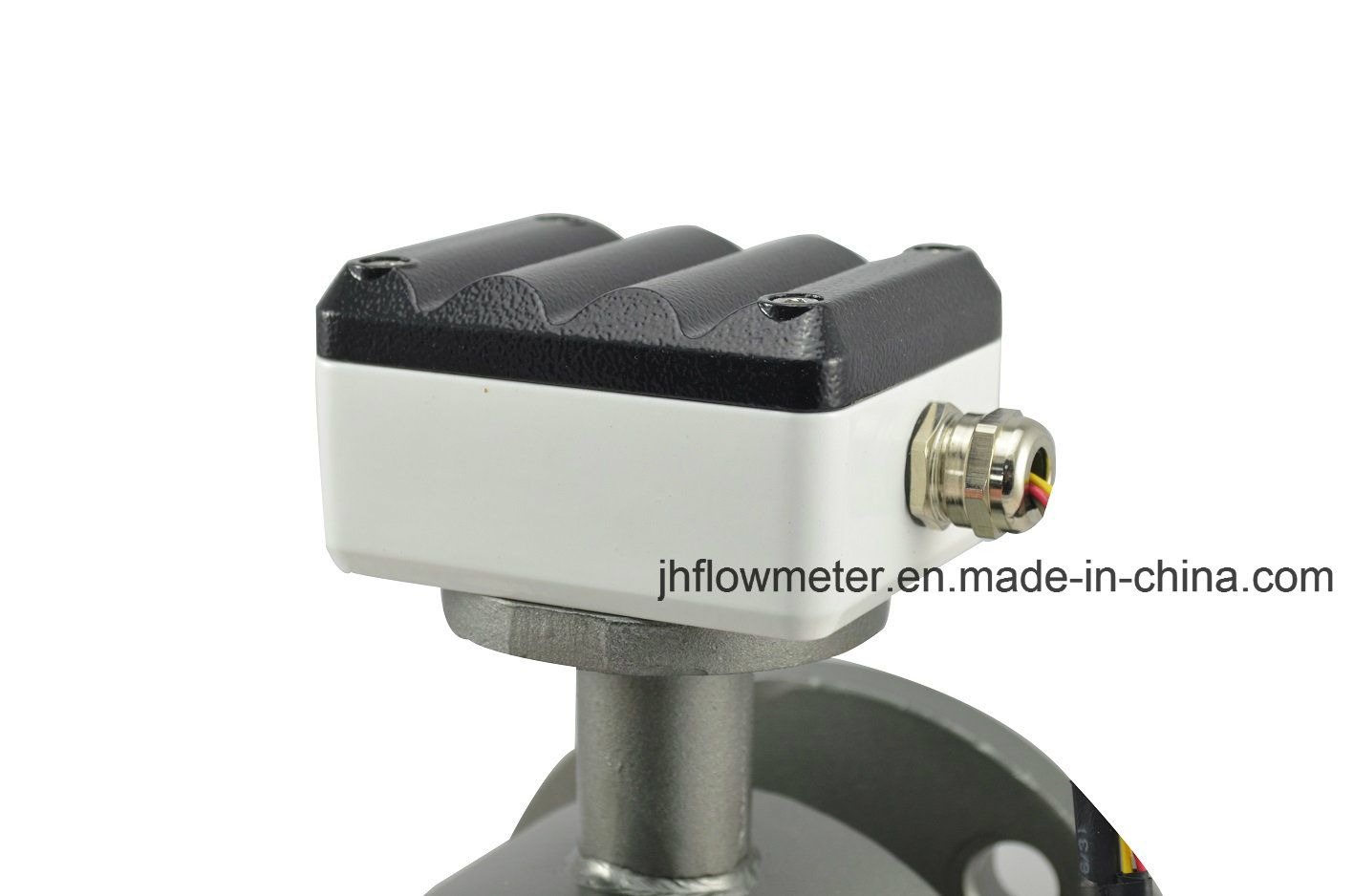

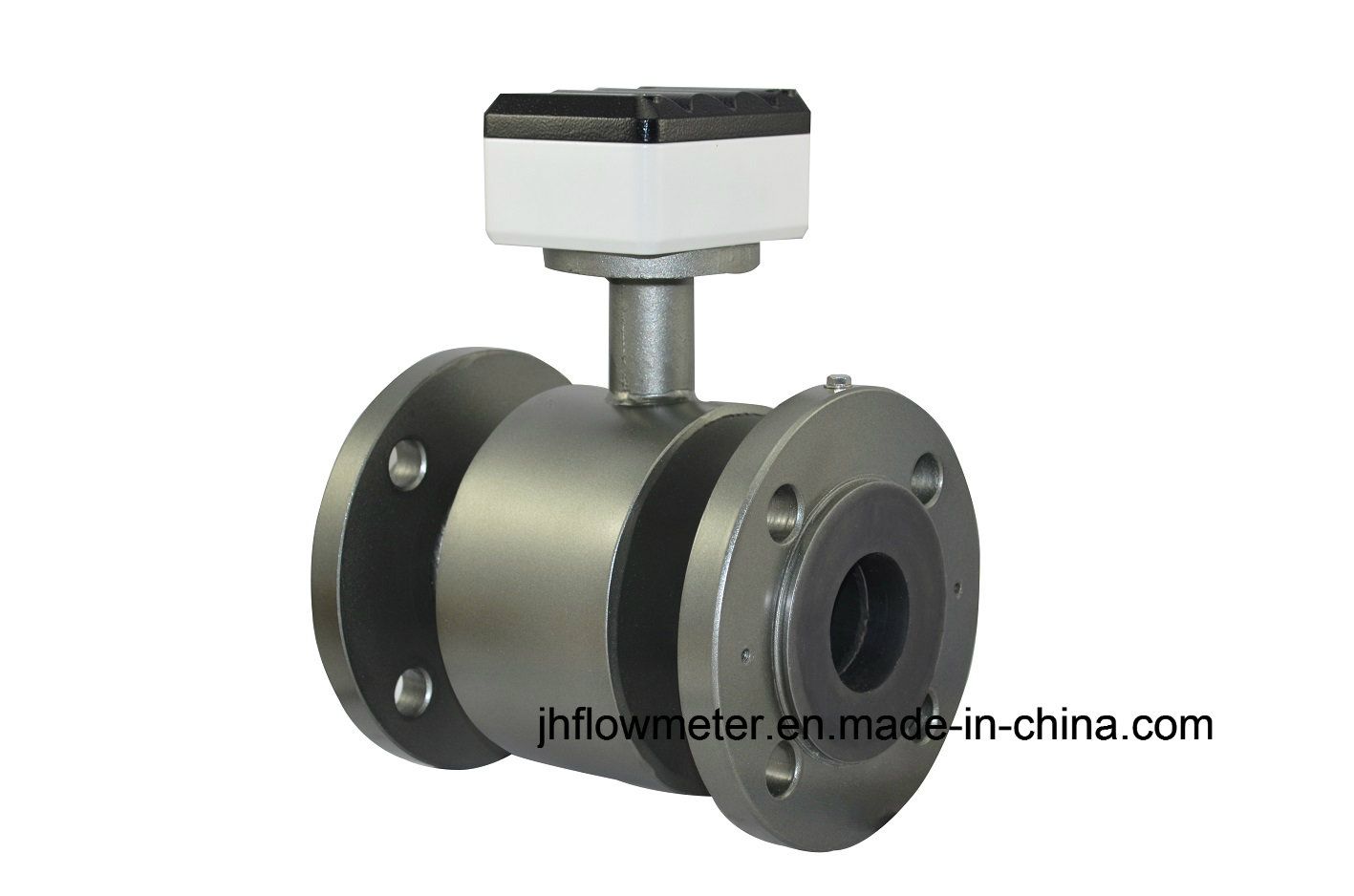

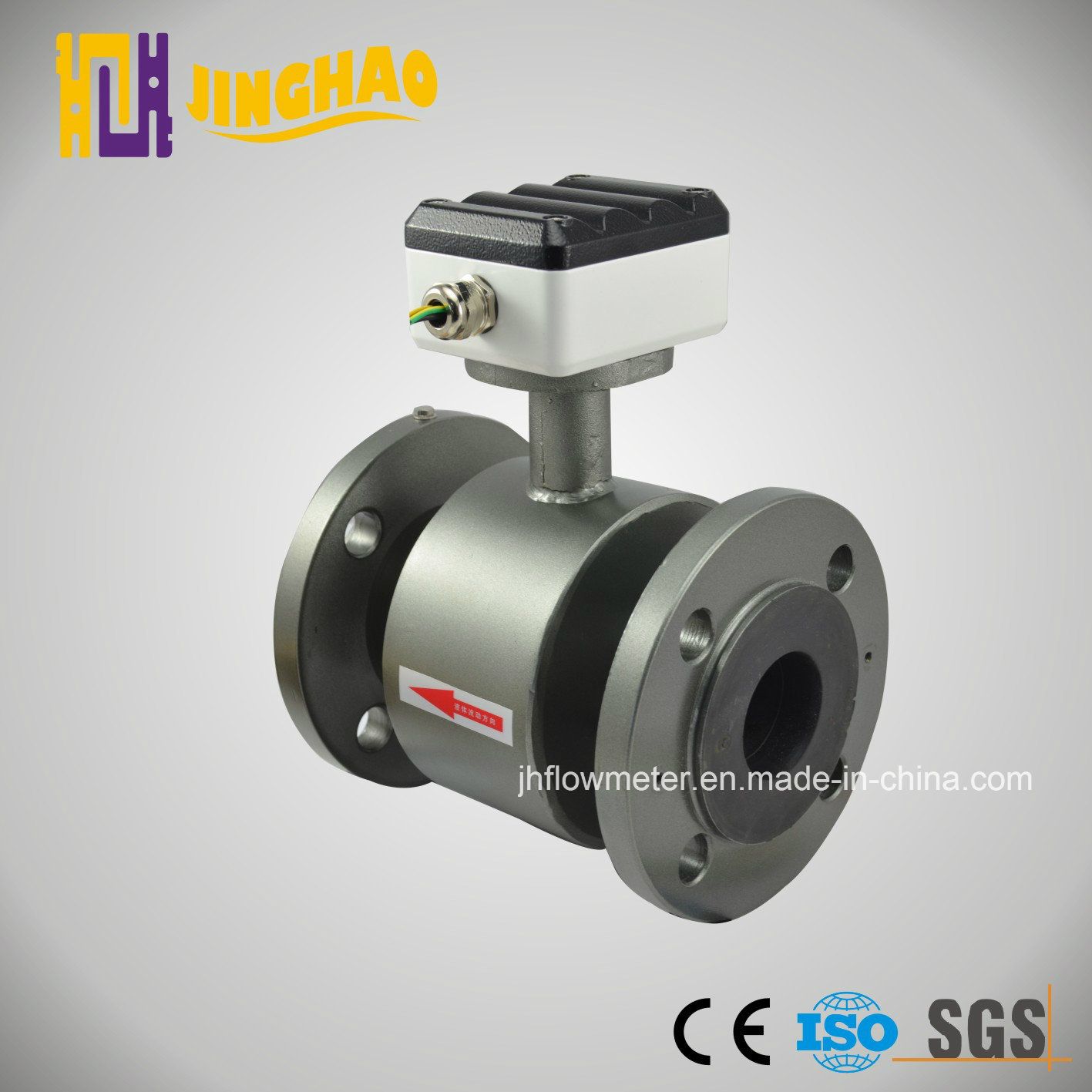

50W Type E+H Magnetic Flow Meter

Name: 50W Type E+H Magnetic Flow Meter
Brand: China-Manufacturer-Directory.com
SKU: 772814825
Availability: InStock
Rating: 4.3 (108 reviews)

Supplier:	Shanghai Jinghao International Trade Co., Ltd.
Price:	US $ 240-4000/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CIF,CIP

Product Specifications

Prod Model:	50W
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Operated Language:	English, Russian and Spanish
Output:	Pulse+4-20mA
Lining Materia:	PTFE/Rubber
Electrode Materia:	Ss316L,Hc, Hb, Ti, Ta
Body Material:	Ss304
Flow Range:	0.16-25000 M³/H
Pipe Size:	Dn15-1000
Power Supply:	220V/24V/3.6V Battery Operated
Communication:	RS232,RS485,Hart,Modbus,
Protection Class:	IP67,IP68
Accuracy:	?à0.2-0.5%
Main Application:	Drinking Water
Sensor:	Tube/Flange
Type:	Electromagnetic Flow Meter
Measuring Media:	Liquid
Measuring Principle:	Electrical Principles
Size:

Product Description

Electromagnetic flowmeter

Measuring Principles:
The measuring principle of electromagnetic flowmeter is based on the electromagnetic induction law of Farady. The sensor is mainly composed of measuring tube with isolate lining, a pair of electrodes installed by penetration of the measuring tube wall, a pair of coils and iron core to produce working magnetic field. When the conductive fluid flows through the measuring tube of the sensor, the voltage signal in direct proportion to the average flow velocity of the fluid will be inducted on the electrodes. The signal is amplified and treated by the transmitter to realize various display functions.

Main Applications:
Electromagnetic flowmeter can be used to measure the volume flow of conductive fluid in a closed pipeline. It is widely applied in the flow measurement and control in the fields of chemical and petroleum industry, metallurgy industry, water and waste water, agriculture and irrigation, paper making, food and beverage industry and pharmaceutical industry.

Features:

--Large choice of liner materials suitable for drinking water, wastewater, chemicals and other liquids.
--Suitable for use in custody transfer applications.
--Measurement is independent of the flow profile.
--Abrasion and corrosion-resistant liners available.
--Electric conductivity of medium can be used for detection of product change.
--No additional pressure loss.
--No moveable parts and long working life.
--Two-way measurement system to detect the positive and negative flow.
--Site LCD displays instantaneous flow, accumulative flow, flow rate.
--Various types provided according to specific conditions.

Technical parameters:

	Flange connection	Inserted type	Threaded connection	Flange connection	Inserted type	Threaded connection
Caliber(mm)	15~3000	125~3000	10~25	15~3000	125~3000	10~25
Pressure(MPa)	0.6,1.0,1.6,4.0
Accuracy	±0.5%, ±0.3%(±0.2% available for special order)
Applicable medium	Conductive liquid and slurry
Medium Temperature	≤150°C
Medium Conductivity	≥5μS/cm
Medium Velocity	≤15 m/s
Ambient	Temperature:-25°C~+60°C, Humidity: 5%~90%
Liner Material	DN10mm~32mm: Polytetrafluoroethylene(F4), Polyurethane; DN40mm~1000mm: F4, Polyurethane, Polychloropree rubber; DN1000mm~3000mm: Polychloropree rubber; Others: Polyvinyl fluoride, Fluorinated ethylene-propylene(FEP), etc.
Electrode Material	Mo-containing stainless steel, Hastelloy B, Hastelloy C, Titanium alloy, Tantalum alloy, Platinum-iridium alloy, Stainless steel-coated tungsten carbide
Electrode Type	Fixed type(DN150~DN2600); Blade type(DN300~DN1600)
Flange Material	SS, CS
Communication	RS485, RS232, HART, Modbus, Profibus-DP
Signal Output	Analog 4-20mA, pulse, isolated, load resistor≤750Ω
Power Supply	AC 85-265V, 45-63Hz, power≤20W; DC 11-40V; lithium battery(3.6V)			AC 85-265V, 45-63Hz, power≤20W; DC 11-40V

Converter technical data:

Current output	4~20Ma
Frequency output	pulse : High level=external power supply-1V External volts≤30 V Low level ≤ 0.5V Load current ≤ 50 mA Max.frequency output :5KHz . Frequency of pulse output: 0~5Hz .
Display	With 8digit LCD display
Display unit	Instantaneous flow units : m 3 /h , m 3 /m , m 3 /s , L/h , L/m , L/s , G/h , G/m , G/s . Total flow units: m 3 , L , G .
Communication	MODBUS protocol ( optional ) or HART ( optional )
Protection grade	IP65
Power supply	220 V AC +20/-60% , 50/60 Hz , 24 V DC +50/- 25% , max.10VA
EMC radiation standard	EN 61326-1 : 2006 (BS EN50081-1)
EMC anti-jimming standard	EN 61326-1: 2006 (BS EN50082-1)
CE security	EN 61010-1 : 2001
Ambient temp.	5~55°C
Ambient humidity	<85 % r.h. (non co n densation)
