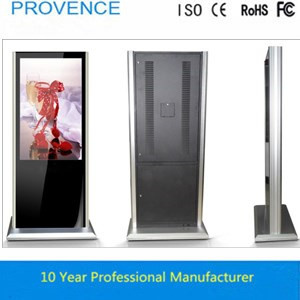

55'' Standing Cheap Touch Screen All In One pc
IR Interactive Multi-touch screen with precise touch and high transparent glass.
Optional Functions: HD Camera, Wifi, High brightness, IR Motion Sensor, OEM Logo, Thermal printer
TAIO's full name is Touch all in one. This product include touch screen and PC system inside. Interactive touch screen, is integrated with multimedia equipment and display the touch screen module, liquid crystal display.
LCD technology is set, the technology of electronic whiteboard solution for the integration of high-tech products.
The configuration is follow customer require. Such as CPU, Memory, Hdd and so on.
Support windows XP/7/8.
Interactive touch function, combined with the special software, can achieve interactive effect.
Multitouch support in windows7/8, support 2 ~ 32 points multi-touch function.
Free correction, free driving function, easy for user without driver.
Screen: A protective layer of high light-penetrating steel glass on the surface is adopted.
Outer shell is made by extra quality metal material, which is painted by powder-spray craftwork.
178° Horizontal and vertical full viewing ang
Cooling system offers efficient and silent heat dissipation.
Customzied CPU, hard drive and RAM to meet any projects, Specialized Computer OS and software could be preinstalled
|
Product Description |
|
LCD panel |
|
|
Diagonal Size |
55" |
|
Aspect Ratio |
16:9 |
|
Pixel Pitch |
0.63(H) x 0.63(W) |
|
Response Time |
5ms ( G-G ) |
|
Resolution |
1920X1080 |
|
Contrast Ratio |
1400:1 |
|
Brightness (cd/m2) |
500d/m2 |
|
Active display area |
1210(H)X681(V) |
|
Display Color (Max) |
1073.7M |
|
Viewing Angle(U/D,L/R) |
178° ( H ) / 178° ( V ) |
|
PC system |
|
|
CPU |
Intel 1037U (I3,I5,I7 option) |
|
Chipset |
Intel chipset |
|
Graghpic Chipset |
Integrated graphics |
|
Memory |
2G(4G/8G/16G option) |
|
Hardisk |
500G(Option: SSD) |
|
Lan |
10M/100M |
|
WIFI |
Option |
|
Audio |
|
|
Stero Speaker |
2x10W |
|
PC system I/O |
|
|
USB 3.0 |
X2 |
|
USB 2.0 |
X2 |
|
Lan(RJ45) |
X1 |
|
Audo Output |
X1 |
|
Mic |
X1 |
|
DisplayPort output |
X1 |
|
HDMI output |
X1 |
|
RS232 port |
Option |
|
VGA output |
Option |
|
Touch parameters |
|
|
Inductive technology |
Infrared Single/Double touch |
|
Touch point |
1~32 points |
|
Inductive objects |
Finger,pen, any other non-transparent objects |
|
Inductive size |
Diameter ≥ 5mm,recommended size ≥ 7mm |
|
Resolution |
4096*4096 |
|
Response time |
Dual touch:first click:8ms,continuous:8ms |
|
Single touch: first click: 8ms,cintinuous:3ms |
|
Cursor speed |
Single: highest 300 dot/s, dual touch:125 dots/s |
|
Operating life |
≥ 60,000,000 times to touch |
|
Multi Touch |
Support Wind7/8 |
|
Positioning calibration |
Support HID device, plug and play, no need driver and calibration, match-management program for positioning calibration. |
|
Light anti-decay |
light anti-decay circuit, maitains stable performance for a long-time working |
|
Anti-light interference |
Can work in the condition of direct sunlight |
|
Technical Specification |
|
|
OSD language |
Simplify Chinese, English |
|
Horizontal Frequency |
20 ~ 82KHz(Anolog&Digital ) |
|
Vertical Frequency |
55~75Hz |
|
Optimum Resolution |
1920x1080 at 60HZ |
|
Native Resolution |
1920x1080 at 60HZ |
|
Supported Resolutions |
1920x1080;1680x1050; |
|
1440x1050;1360x768; |
|
1280x1024;1280x768; |
|
1024x768; 800x600; |
|
720x400; 600x480; |
|
Video Modes(no tuner) |
480i;480p;576i;576p; |
|
720p(50 / 60HZ); |
|
1080i(50 / 60HZ); |
|
1080p(50 / 60HZ); |
|
Operation/Sotrage |
|
|
Operating Temperature |
00C~400C |
|
Operating Humidity |
10%~90% |
|
Storage Temperature |
-200C~600C |
|
Storage Humidity |
0%~90% |
PROVENCE (Shenzhen) Technology. Co., Ltd was established in Shenzhen China in Juanary 2011 mainly engaged in intelligent LCD/LED display products. Factory covered over 3000 square meter and there are about 100 employees. Products anging from CCTV monitor, Video wall, Touch all in one, Digital signage to related controller and accessaries etc...
Combined with R&D, marketing, manufacturing & construction as a whole, PROVENCE is not only a terminal display products producer but also a Turkey-solution provider. We have obtained approval of CE, FCC, RoHS ISO9001 Certificates for all products which are exported to America, Canada, Europe, Asian, Middle East and sell well in markets all over the world. Professional OEM/ODM service is also provided.
PROVENCE have been done over 1000 video wall projects for the past few years and had gained reputation for its reliable products and after-sale services. Based on the science and technology, We are aimed to be the No. 1 in intelligent LCD/LED display industry with the principle of "Integrity, Professional & Inovation".
