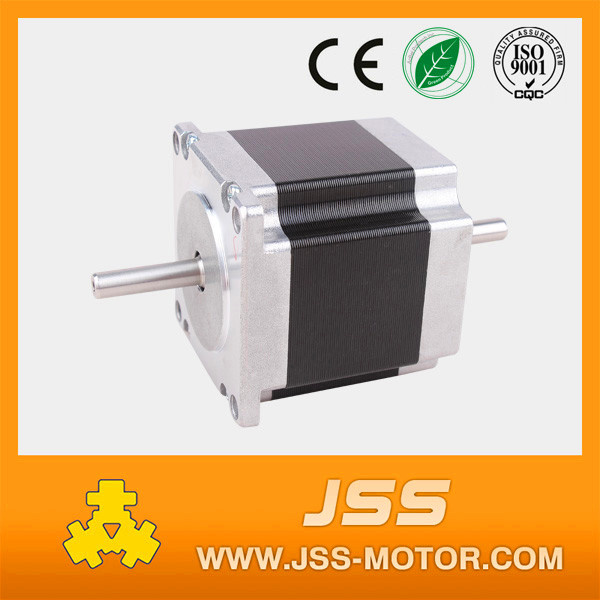

57mm Double Shaft Unipolar Stepper Motor for Robot

Name: 57mm Double Shaft Unipolar Stepper Motor for Robot
Brand: china-manufacturer-directory.com
SKU: 745516505
Availability: InStock
Rating: 4.6 (50 reviews)

Supplier:	Changzhou Jinsanshi Mechatronics Co., Ltd.
Price:	US $ 7.99-22.99/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	57HS56-2006B
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Step Angle:	1.8
Frame Size:	57mm X 57mm
Current:	2A
Resistance:	1.8
Inductance:	2.8mh
Holding Torque:	9kg.Cm
Motor Body Length:	56mm
Lead Wires:	6
Type:	Magnetic-Electric
Number Of Stator:	Four-Phase
Excitation Mode:	HB-Hybrid
Brand:	Jss
Operate Mode:	Driver
Certification:	CE

Product Description

We produce stepper motor from nema 8 to nema 42, and suitable drivers for all these motors.
Our products can be applied to printing equipment, engraving machine textile machine, computer external application equipment, medical instruments, stage light equipment, robot, CNC machine tool and other automatic controlling system.

1. NEMA 23 stepper motor, high performance, low heat, low virbration, low noise.
2. Stepper motor single shaft or double shaft
3. Shaft length can be customized, and it can be round shaft or shaft with flat side(D-cut). Shaft diameter is 6.35mm or 8mm

Step Angle Accuracy: ± 5%
Resistance Accuracy: ± 10%
Inductance Accuracy: ± 20%
Temperature Rise: 80° C Max
Ambient Temperature: -20° C~+50° C
Insulation Resistance: 100MΩ Min., 500VDC
Dielectric Strength: 500VAC for one minute
Shaft Radial Play: 0.02Max (450g-load)
Shaft Axial Play: 0.08Max (450g-load)

We also produce linear stepper motor, gearbox stepper motor, stepper motor with brake, drivers for all the motors, and closed loop stepper motors and drivers. We also have accessories such as power supplys, spindles and inverters, breakout board, TB6560 driver board, timing pulleys and so on.

Contact information:
Tel: 86-519-86922120
Welcome to consult! ! ! ! ! ! ! ! ! ! ! ! !
JSS MOTOR YOUR BEST CHOICE!

Nema 23 stepper motor data
TYEP	phase No.	step angle	current (A)	resistance(Ω±10)	inductance (mH±20)	holding torque (kg.cm)	length (mm)	wire No.
57HS41-1004	2	1.8	1	5.4	9.5	5.5	41	6
57HS51-1504	2	1.8	2	1.6	4.2	8.2	51	4
57HS51-1606	4	1.8	1.6	2.6	5	9	51	6
57HS56-1504	2	1.8	1.5	3.8	12	12	56	4
57HS56-2006	4	1.8	2	1.8	2.8	9	56	4
57HS56-2804	2	1.8	2.8	0.9	3	12.6	56	4
57HS64-2004	2	1.8	2	1	4	12	64	4
57HS76-1004	2	1.8	1	6	20	20	76	4
57HS76-1006	4	1.8	1	8.6	14	13.5	76	6
57HS76-2004	2	1.8	2	4.3	16.2	24	76	4
57HS76-2804	2	1.8	2.8	1.1	3.6	18	76	4
57HS76-3004	2	1.8	3	0.9	3.5	18	76	4
57HS82-1004	2	1.8	1	10	44	22	82	4
57HS82-3004	2	1.8	3	1.4	5	20	82	4
57HS82-4204	2	1.8	4.2	0.9	4	25	82	4
57HS93-3004	2	1.8	3	1	4.2	25	93	4
57HS100-3004	2	1.8	3	1.4	5.5	25	100	4
57HS100-3504	2	1.8	3.5	0.8	3	22	100	4
57HS112-3004	2	1.8	3	1.3	6.5	30	112	4
57HY51-1004	2	1.8	1	4.2	12	7	51	4
57HY56-1504	2	1.8	1.5	2.4	6.8	8.2	56	4
57HY76-3004	2	1.8	3	1.3	3.5	12	76	4
57HM41-1106	4	0.9	1.1	5.2	6.2	4	41	6
57HM51-1704	2	0.9	1.7	4	14	9	51	4
57HM56-3004	2	0.9	3	0.8	2.8	10	56	4
57HM64-4204	2	0.9	4.2	0.55	1.5	11	64	4
57HM76-2804	2	0.9	2.8	1.15	5.6	18	76	4
57HM76-3004	2	0.9	3	1.2	5	15	76	4
