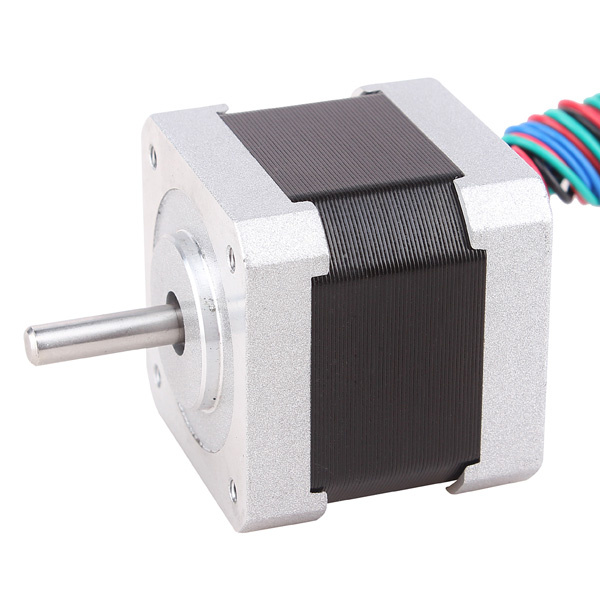

NEMA 17 4.8kg. Cm 3D Printer Stepper Motor

Name: NEMA 17 4.8kg. Cm 3D Printer Stepper Motor
Brand: china-manufacturer-directory.com
SKU: 753068675
Availability: InStock
Rating: 4.3 (89 reviews)

Supplier:	Changzhou Jinsanshi Mechatronics Co., Ltd.
Price:	US $ 5-5.99/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	42HS40-1704A
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Frame Size:	42*42mm
Current:	1.7A
Resistance:	2.5
Inductance:	4.2mh
Holding Torque:	4.8kg.Cm
Body Length:	40mm
Type:	Magnetic-Electric
Number Of Stator:	Two-Phase
Excitation Mode:	HB-Hybrid
Brand:	Jss
Certification:	CE

Product Description

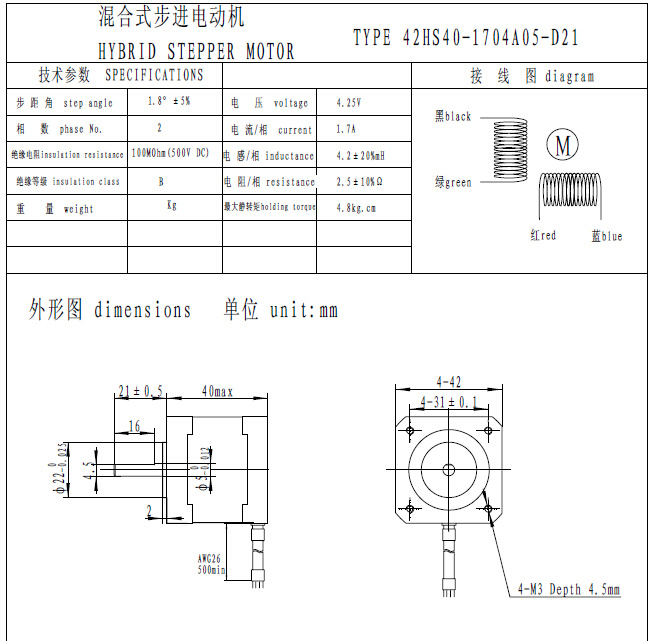

Promotional stepper motor for 3d printer: 42HS40-1704A05-D21
This motor is in stock and ON SALE!!!!!!!

Step Angle Accuracy: ±5%
Resistance Accuracy: ±10%
Inductance Accuracy: ±20%
Temperature Rise: 80°C Max
Ambient Temperature: -20°C~+50°C
Insulation Resistance: 100MΩ Min., 500VDC
Dielectric Strength: 500VAC for one minute
Shaft Radial Play: 0.02Max (450g-load)
Shaft Axial Play: 0.08Max (450g-load)

TYEP	phase No.	step angle	current (A)	resistance(Ω±10)	inductance (mH±20)	holding torque(kg.cm)	length (mm)
42HS34-0606	4	1.8	0.6	5	3	1.2	34	6
42HS34-0804	2	1.8	0.8	6.5	4.6	2.3	34	4
42HS34-1504	2	1.8	1.5	1.9	2.5	2.5	34	4
42HS40-0804	2	1.8	1.2	6.5	12	4	40	4
42HS40-0806	4	1.8	0.8	7.5	7	2.6	40	6
42HS40-1704	2	1.8	1.7	2	3	4.2	40	4
42HS44-0804	2	1.8	0.8	14	33	5.2	44	4
42HS44-1504	2	1.8	1.5	2	3.6	4	44	4
42HS48-0606	4	1.8	0.6	19.5	13.5	3.8	48	6
42HS48-1204	2	1.8	1.2	3.2	4.2	4.2	48	4
42HS48-1304	2	1.8	1.3	3	5.5	5.2	48	4
42HS48-1504	2	1.8	1.5	1.4	2.5	4.8	48	4
42HS48-1504-1	2	1.8	1.5	2.8	4.8	5.5	48	4
42HS48-1684	2	1.8	1.68	1.8	2.8	4.8	48	4
42HS48-2504	2	1.8	2.5	1.2	1.8	5.5	48	4
42HS54-1504	2	1.8	1.5	3	6.5	6.8	54	4
42HS60-1206	4	1.8	1.2	6	7	6.5	60	6
42HS60-1504	2	1.8	1.5	2.5	6	7	60	4

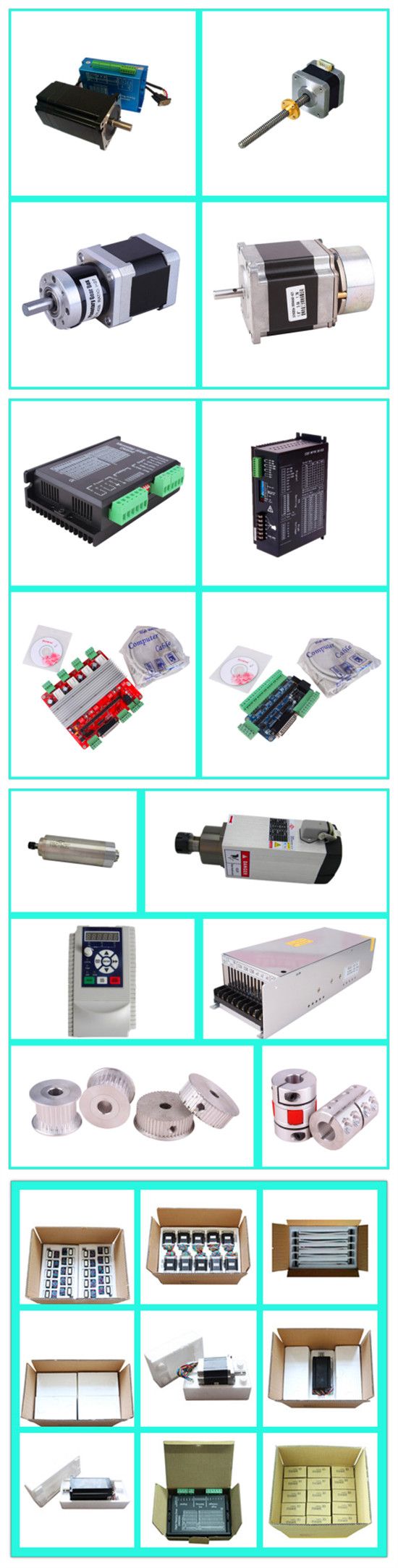

We also produce linear stepper motor, gearbox stepper motor, stepper motor with brake, drivers for all the motors, and closed loop stepper motors and drivers. We also have accessories such as power supplys, spindles and inverters, breakout board, TB6560 driver board, timing pulleys and so on.

Jinsanshi Mechatronics co. Ltd. Is a comprehensive company which specilizes in producing and researching stepper and motor driver. Our company is located in Changzhou city, Jiangsu province, China. We own an excellent group with rich experience in manufacturing and researching. In this field, we have rich experience, so that we can solve the actual using problems for customers. Our products are highly commended by customers because of its easy operation, long using life, stable performance, low failure rate and high technical content.

Our products are widely applied in printing equipment, engraving machine textile machine, computer external application equipment, medical instruments, stage light equipment, robot, NC machine tool and other automatic controlling system. Our main products include stepper motor from NEMA 8 to NEMA 42, geared stepper motors, lead screw motors, stepper motor with brake, drivers for all the motors. We also produce closed loop steppers and drivers.
