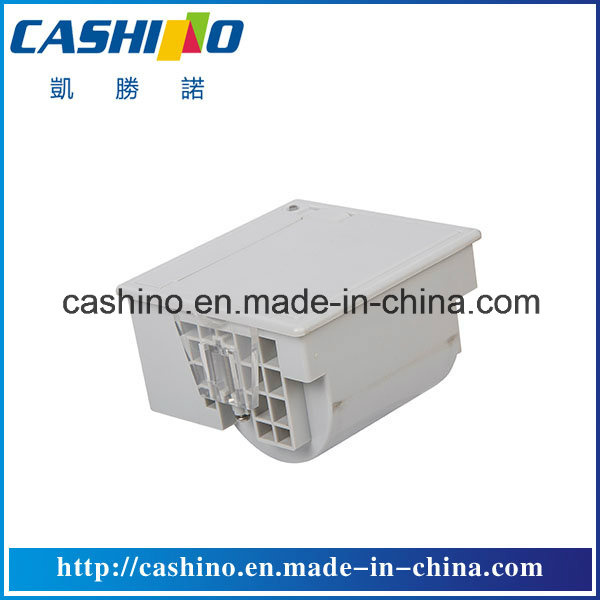

Product Specifications
| Prod Model: |
CSN-A5 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
3" |
| Printing Method: |
Thermal Line Printing |
| Printing Speed: |
50-80mm/S |
| Printing Width: |
48mm |
| Paper Roll Diameter: |
50mm |
| Outline Dimension: |
88X87X56.5mm |
| Installation Dimension: |
82X82X53.5mm |
| Apply To: |
Test Instrument Print Proposal |
| Interface Type: |
Serial(RS-232, Ttl)/Parallel |
| Type: |
Thermal Line DOT Printing |
| Consumable Type: |
Thermal Printing |
| Max. Paper Size: |
58mm Paper Width |
| Usage: |
Receipt Printer;Thermel Printer;Ticket Printer |
| Character Structure: |
Ank:9*17, 12*24, 24*24 |
| Style: |
Black -White |
Product Description
Feature:
Smart appearance
Easy paper loading
Low noise thermal printing
Different interfaces optional
Front panel make paper replacement easily
Easily embedded to any kinds of instruments and meters
Application:
Medical Equipment,
Measureing equipment,
Security Equipment,
Analyzing Instrument&Meter.
Specification:
Print |
Printing Method |
Thermal Line |
Printing Speed |
50-80mm/s |
Resolution |
8 dots/mm, 384 dots/line |
Effective Printing Width |
48mm |
Character |
Character Set |
ASCII,GB2312-80(Chinese) |
Print Font |
ANK:8x16,9x17,9x24,12×24, GBK:16×16,24×24 |
Paper Spec |
Paper Type |
Thermal paper |
Paper Width |
57.5± 0.5mm |
Paper Roll Diameter |
Max:50 mm |
Reliability |
MCBF |
5 million lines |
Interface |
Serial(RS-232,TTL)/Parallel/USB |
Insert Depth |
53.5mm |
Power Supply (Adapter) |
DC5V-9V/12V |
Physical |
Outline Dimension (WxDxH) |
88x87x56.5mm |
InstallationPortSize |
82 x 82mm |
Color |
Beige/Black |
Environment |
Operating Temp |
5°C ~ 50°C |
Operating Humidity |
10% ~ 80% |
Storage Temp |
-20°C ~ 60°C |
Storage Humidity |
10% ~ 90% |
