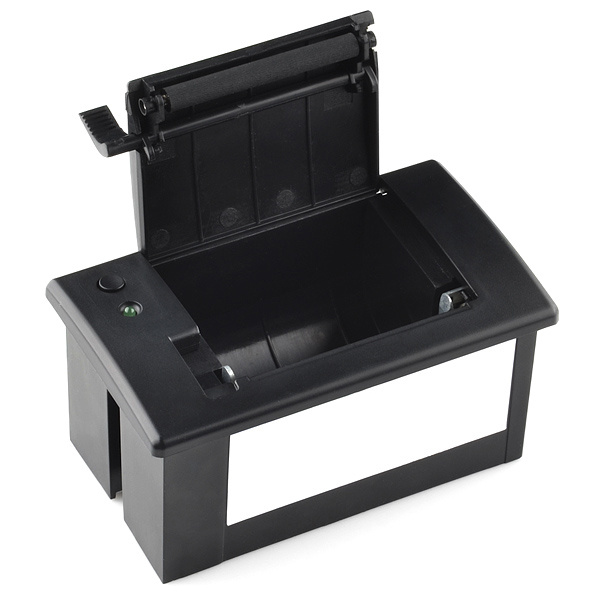

58mm mini Small Size Thermal Panel printer suitable for various Machines
1. Produce Information
Feature:
Smart appearance
Easy paper loading
Low noise thermal printing
Different interfaces optional
Front panel make paper replacement easily
Easily embedded to any kinds of instruments and meters
Specifications
1.58mm thermal mini printer
2.Port:RS-232/TTL/Parallel/USB
3.Power: 5-9V/12V
4.DC:5-9V/12V compatible ESC/POS set
5.Low noise
Packaging & Delivery
Packaging Detail:50units/carton
Delivery Detail:2-3weeks
Application:
1.Medical Equipment
2.Measureing equipment
3.Security Equipment
4.Analyzing Instrument&Meter.
Specification:
2 inch A2 micro panel receipt thermal printer |
Print | Printing Method | Thermal Line |
Printing Speed | 50-80mm/s |
Resolution | 8 dots/mm, 384 dots/line |
Effective Printing Width | 48mm |
Character | Character Set | ASCII,GB2312-80(Chinese) |
Print Font | ANK:(8x16,9x17,9x24,12×24), Chinese: 24×24 |
Paper Spec. | Paper Type | Thermal paper |
Paper Width | 57.5± 0.5mm |
Paper Roll Diameter | Max: 39mm |
Reliability | MCBF | 5 million lines |
Interface | RS-232/TTL/Parallel/USB |
Insert Depth | 50mm |
Power Supply (Adapter) | DC5V-9V/12V |
Physical | Outline Dimension (WxDxH) | 111x65x57mm |
Installation Port Size | 103 x 57mm |
Color | Beige/Black |
Environment | Operating Temp | 5°C ~ 50°C |
Operating Humidity | 10% ~ 80% |
Storage Temp | -20°C ~ 60°C |
Storage Humidity | 10% ~ 90% |
