Product Specifications
| Prod Model: |
CSN-A1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Resolution: |
8dots/Mm |
| Printing Speed(Max.): |
60-80mm/S |
| Paper Roll Max Diameter: |
40mm |
| Printing Life: |
50km |
| Style: |
Black and White |
| Usage: |
Gas Pumps |
| Interface Type: |
RS232/USB/Ttl |
| Type: |
Thermal Printing |
| Max. Paper Size: |
Paper Width:58mm |
Product Description

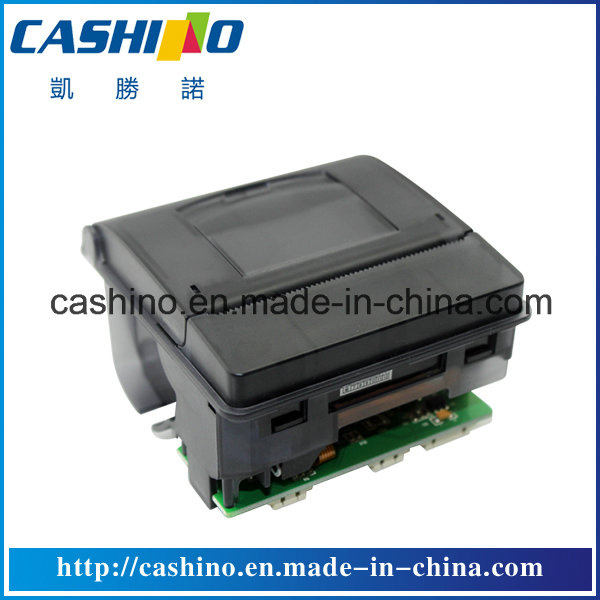

58mm mini Thermal Panel Printer
1. Produce Information
Feature:
Compatible with APS ELM205-CH
Easy paper loading
Low noise thermal printing
Different interfaces optional
Easily embedded to any kinds of instruments and meters
Packaging & Delivery
Packaging Detail: 100units/cartons
Delivery Detail: 2-3weeks
Specifications
1.58mm thermal receipt printer
2. Compatible with APS ELM205-CH
3. Compact design, light
4. Easy paper load
5. RS232, TTL, USB
Application:
1. Medical Equipment,
2. Measureing equipment,
3. Security Equipment,
4. Automotive
5. ID Automation and Instruments
6. Hospitality and Retail
7. EFTs POS
8. Fiscal printers
9. Gas pumps
Specifications:
|
Print |
Printing Method |
Thermal Line |
|
Printing Speed |
50-80mm/s |
|
Resolution |
8 dots/mm, 384 dots/line |
|
Effective Printing Width |
48mm |
|
Character |
Character Set |
ASCII,GB2312-80(Chinese) |
|
Print Font |
ANK:(8x16,9x17,9x24,12×24), Chinese: 24×24 |
|
Paper Spec. |
Paper Type |
Thermal paper |
|
Paper Width |
57.5± 0.5mm |
|
Paper Roll Diameter |
Max: 39mm |
|
Reliability |
MCBF |
5 million lines |
|
Interface |
RS-232/TTL/Parallel/USB |
|
Insert Depth |
50mm |
|
Power Supply (Adapter) |
DC5V-9V/12V |
|
Physical |
Outline Dimension (WxDxH) |
111x65x57mm |
|
Installation Port Size |
103 x 57mm |
|
Color |
Beige/Black |
|
Environment |
Operating Temp |
5°C ~ 50°C |
|
Operating Humidity |
10% ~ 80% |
|
Storage Temp |
-20°C ~ 60°C |
|
Storage Humidity |
10% ~ 90% |
Xiamen Cashino Electronic Technology Co.,Ltd.(brand: CASHINO) is highly specialized in designing, developing, manufacturing and marketing of printing equipments; and provide the professional printing solution. with the factory located in Xiamen city.
With rich of experience and professional R&D team, Cashino successfully launched a series of printing equipments. Such as portable printer,bluetooth printer,micro panel printer, Kiosk printer,POS receipt printer, barcode label printer, as well as printer mechanism( thermal & impact type) and so on;Our products usually are used for POS/ECR, Transport Ticketing , Instrument Analyzers, KIOSK system, Electronic medical equipment, self-service solution etc.
In recent years, as the market is increasingly mature and growing, Cashino's business have expand to oversea markets, such as Southeast Asia, South Asia, South & North America, Middle East and Europe, etc. Won the majority of worldwide customers' favor. In view of having a strong R&D team, we also provide OEM/ODM service for customers.
Cashino always keep up with the enterprise goal of "survival by quality, service for development". We are able to provide all customers with high quality products to meet their strict requirements at competitive prices. Ultimately we wish to establish and maintain a long-term relationship with every customer built on respect, confidence and Mutual benefit.
