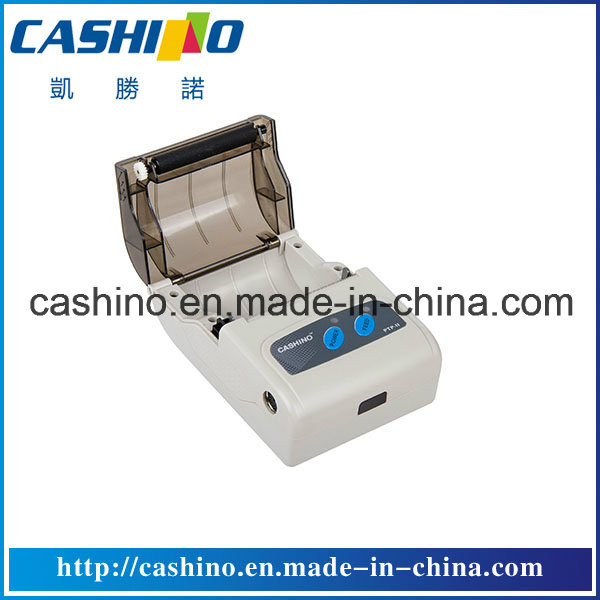

58mm Thermal Mobile Mini Printer for Android System
Packaging & Delivery
Packaging Detail: 20sets/carton.
Delivery Detail: 2-3weeks
Specifications
1.58mm mini portable belt printer
2. Support barcode printing
3. Support label printing
4. RS232, IR, Bluetooth, mini USB /WIFI port
Feature:
Portable device suited for outdoor usage
Black mark paper location sensor
Low battery indicator(7.4V, 2000mAh)
Equipped with lithium battery for 8 hours continuous work
Vairous interface communication and interface capabilites
Easy paper loading
High printing speed, up to 80mm/s.
Application:
Mobile POS/Retail
Hospitality
Packing citation
Deliveries
Onboard Transportation
Field reparts/Installation
Warehouse/ logistics
Utility billing/meter reading
Note:
1. Our mobile printer can support Android PC and phone, it can support windows 7 and windows 8 OS.
2. We have different price for different accessories.
3. Standard accessories: Paper roll, Adapter, li-ion battery, USB cable, printer, leather coat,
4. We can provide our customers free SDK for your development.
5. The interface: This printer has USB+RS232 by itself, you can also choose bluetooth / wifi / irda.
6. The warranty time is 1 year. But we can give you our best after-sales service later.
Specifications:
|
Model |
PTP-II/WIFI |
|
Dimension |
79*110*45mm |
|
Print method |
Line thermal printer |
|
Paper width |
58mm |
|
print width |
48mm |
|
Weight ( g) |
235 (not including the paper roll) |
|
Max diameter of paper roll |
40mm |
|
Dot per lie |
384 dots/line |
|
internal characters |
ASCII CH(8x16,9x17,9x24,12×24); GBK(16x16,24×24) |
|
Print speed |
50~80mm/s |
|
Life cycle time |
50km(printing density under 12.5%)/100 million pulses |
|
text and graphic Support |
English, figure, symbol, Chinese, graph, curve, icon pre-stored, barcode
(CODE39EAN13EAN8 CODABARCODE128CODE93ITF)
QR code ,PDF417 |
|
Dot pitch (resolution) |
203DPI/8 dots/mm |
|
interface |
IrDa/Raw-IR,RS232,Mini USB/bluetooth/wifi |
|
Power |
2000mAh 7.4V rechargeable Lithium battery |
|
Recharge adapter |
Stand by recharging / AC adapter |
|
Self-check |
Without paper / cover open |
|
Black mark test |
Supported |
|
Paper feeding |
Easy paper loading |
|
commands |
ESC/POS compatible with order sets |
|
Paper cut |
By hands |
|
operate setting |
Temperature -10°C~50°C ; Humidity 20%~85% |
|
Recharge Setting |
Temperature 5°C~40°C; Humidity 20%~85% |
|
Storage Setting |
Temperature -20°C~70°C ; Humidity 5%~95% |
|
Standard accessories |
Long-term preservable paper, AC adapter, li-ion battery. USB cable, leather coat |
|
Optional accessories |
Serial interface cable/CD |
