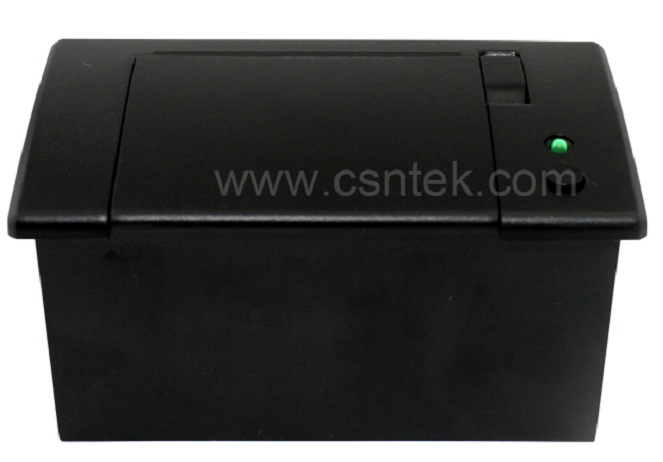

58mm thermal panel printer for ticket machine
1. Produce Information
Feature:
1. Smart appearance
2. Easy paper loading
3. Low noise thermal printing
4. Different interfaces optional
5. Front panel make paper replacement easily
6. Easily embedded to any kinds of instruments and meters
Specifications
1.58mm thermal mini printer
2. Port: RS-232/TTL/Parallel/USB
3. Power: 5-9V/12V
4. Color: Black/Beige
5. Low noise
Packaging & Delivery
Packaging Detail: 50units/carton
Delivery Detail: 2-3weeks
Application:
1. Medical Equipment
2. Measureing equipment
3. Security Equipment
4. Analyzing Instrument&Meter
Specification:
|
2 inch A2 micro panel receipt thermal printer |
|
Print |
Printing Method |
Thermal Line |
|
Printing Speed |
50-80mm/s |
|
Resolution |
8 dots/mm, 384 dots/line |
|
Effective Printing Width |
48mm |
|
Character |
Character Set |
ASCII,GB2312-80(Chinese) |
|
Print Font |
ANK:(8x16,9x17,9x24,12×24), Chinese: 24×24 |
|
Paper Spec. |
Paper Type |
Thermal paper |
|
Paper Width |
57.5± 0.5mm |
|
Paper Roll Diameter |
Max: 39mm |
|
Reliability |
MCBF |
5 million lines |
|
Interface |
RS-232/TTL/Parallel/USB |
|
Insert Depth |
50mm |
|
Power Supply (Adapter) |
DC5V-9V/12V |
|
Physical |
Outline Dimension (WxDxH) |
111x65x57mm |
|
Installation Port Size |
103 x 57mm |
|
Color |
Beige/Black |
|
Environment |
Operating Temp |
5°C ~ 50°C |
|
Operating Humidity |
10% ~ 80% |
|
Storage Temp |
-20°C ~ 60°C |
|
Storage Humidity |
10% ~ 90% |
