Product Specifications
| Prod Model: |
CSN-A3 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
2 Inches |
| Resolution: |
8 Dots/Mm,384 Dots/Line |
| Printing Speed(Max): |
50-80mm/S |
| Paper Roll Max Diameter: |
23mm |
| Style: |
Black and White |
| Interface Type: |
USB |
| Usage: |
Medical Instrument Print |
| Type: |
Thermal Printing |
| Max. Paper Size: |
Paper Width:58mm |
Product Description

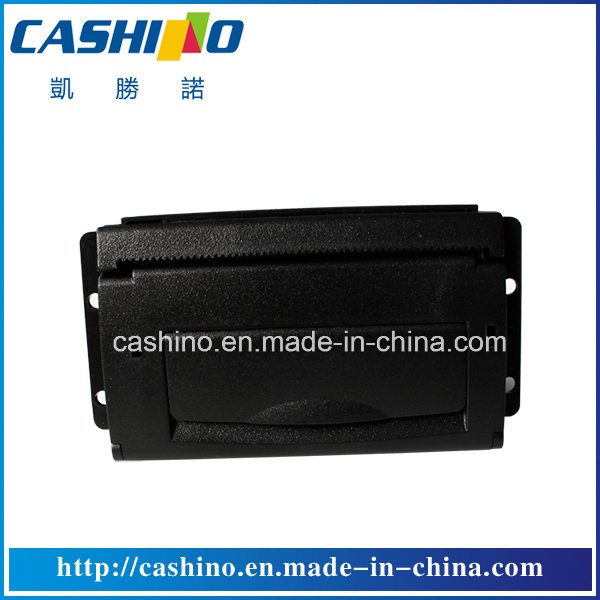

58mm USB Thermal Panel Barcode Printer
Specifications
1.58mm mini printer
2. Compatible with APS SS205
3. Ultra compact design,
4. Ultra light
5. Easy paper loading;
Feature:
1. Smart appearance
2. Easy paper loading
3. Low noise thermal printing
4. Different interfaces optional
5. Front panel make paper replacement easily
6. Easily embedded to any kinds of instruments and meters
7. Compatible with APS SS205-CH
Packaging & Delivery
Packaging Detail: 50units/cartons.
Delivery Detail: 2-3weeks
Application:
1. Taxi meter print proposal
2. Recording Meter print proposal
3. Self-service Print proposal
4. Ticket Machine print proposal
5. Medical instrument print proposal
6. Weight Machine Print proposal
7. Electric Instrument Print proposal
8. Test Instrument Print proposal
|
Print |
Printing Method |
Thermal Dot Line |
|
Printing Speed |
50-80mm/s |
|
Resolution |
8 dots/mm, 384 dots/line |
|
Effective Printing Width |
48mm |
|
Character |
Character Set |
ASCII,GB2312-80(Chinese) |
|
Print Font |
ANK: (8x16,9x17,9x24,12×24) , GBK: 16×16,24×24 |
|
Paper Spec |
Paper Type |
Thermal paper |
|
Paper Width |
57.5± 0.5mm |
|
Paper Thickness |
60-85µm |
|
Roll Core Inner Diameter |
13mm(min.) |
|
Paper Roll Diameter |
Max: 23mm |
|
Reliability |
MCBF |
5 million lines |
|
Interface |
RS-232/TTL/USB |
|
Insert Depth |
40mm |
|
Power Supply (Adapter) |
DC5V-9V/12V |
|
Physical |
Outline Dimension (WxDxH) |
79x44x39/48mm |
|
InstallationPortSize |
71x42mm, |
|
Color |
Black |
|
Environment |
Operating Temp |
5°C ~ 50°C |
|
Operating Humidity |
10% ~ 80% |
|
Storage Temp |
-20°C ~ 60°C |
|
Storage Humidity |
10% ~ 90% |
