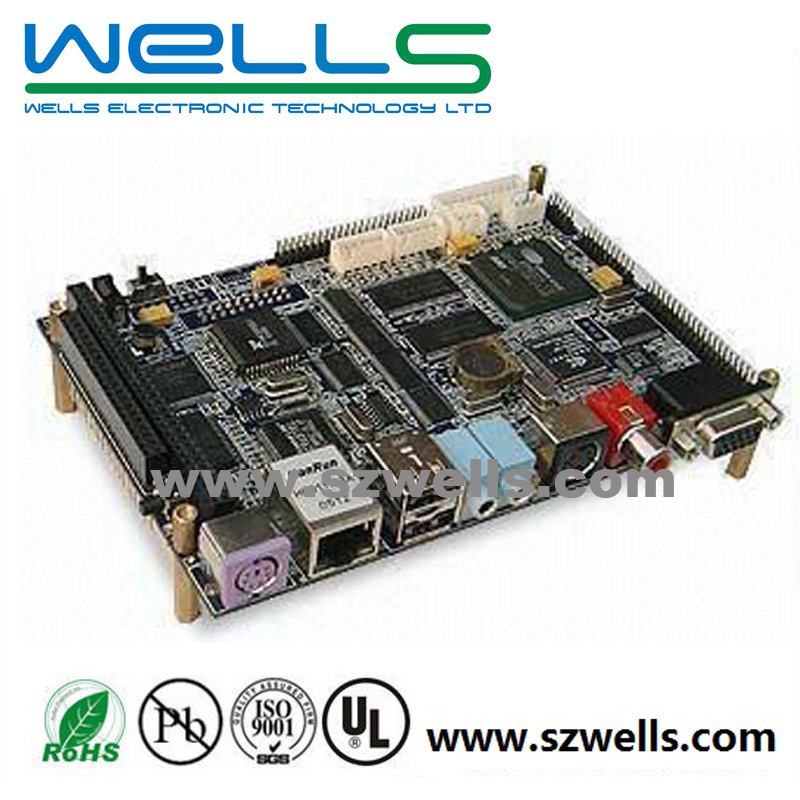

6 Layer PCB Assembly with Sockets

6 Layer PCB Assembly with Sockets
Price: US $ 3.5-4/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: T/T,Paypal,Western Union

Product Specifications

Prod Model: PCBA
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Min. Chip Placement: 01005
Base Material: FR-4
Metal Coating: Tin
Mode Of Production: SMT & DIP

Product Description

Smt pcb assembly pcba factory
China PCB assembly factory
PCB Design and copy

Wells Electronic Technology Ltd. Established in 2000, located in Shenzhen, is a professional PCB & PCBA manufacturer with One-stop Service. With 13 years experience, Wells Electronic can provie you PCB design, PCB manufacture, and PCB assembly services.
     PCB Assembly Capability
  Items Capability
1 Min. IC Pitch 0.30mm(12mil)
2 Foot Pin SO, SOP, SOJ, TSOP, TSSOP, QFP, BGA and U-BGA
3 Min. Chip Placement  01005
4 Max. PCB Size 410mm x 600mm(16.2" x 23.6")
5 Min. PCB Thickness 0.35mm(13.8mil)
6 Maximum BGA Size 74mm x 74mm(2.9" x 2.9")
7 BGA Ball Pitch 1mm ~ 3mm(4mil ~ 12mil)
8 BGA Ball Diameter 0.4mm ~ 1mm(16mil ~ 40mil)
9 QFP Lead Pitch 0.38mm ~ 2.54mm(15mil ~ 100mil)
10 Package Anti-static Bubble Bag & Carton
       PCB Capability
  Items Capability
1 Layers 1 ~ 30 layers
2 Base Material FR4, High Tg FR4, Halogen Free, Isola, Rogers, Aluminium
3 Finished Board Thickness 0.2mm ~ 7.0mm(8mil-276mil)
4 Aspect Ratio 10:1
5 Copper Thickness 1/3oz ~ 7oz
6 Surface Finishing HASL, Lead Free HASL, Immersion tin, Immersion gold, Gold plating, Immersion silver, OSP, Carbon, etc.
7 Max gold plating thickness 50 microinch
8 Min. Trace Width/Space 0.075/0.075mm(3/3mil)
9 Min. Finish Holes Size 0.1mm(4mil) for laser holes; 0.2mm(8mil) for mechanical holes
10 Max.Finshed Size 600mm x 900mm (23.6" x 35.43")
11 Hole Tolerance PTH:±0.076mm(+/-3mil), NTPH:±0.05mm(+/-2mil)
12 Soldermask Color Green, White, Black, Red, Yellow, Blue,
13 Silkscreen Color White, Black, Yellow, Blue
14 Impedance Control +/-10%
15 Profiling Punching Routing, V-CUT, Chamfer
16 Hole tolerance PTH:±0.076,NTPH:±0.05
17 Special Holes Blind/Buried holes, Countersunk holes
18 Reference Standard IPC-A-600H Class 2, Class 3, TS16949
19 Certificate UL, ISO9001, ROHS, SGS
20 Package Vacuum & Carton
     FPC Capability
  Items Capability
1 Types Single-sided, Double-sided, Multi-layers (max 6 layers) and
Flex-Rigid PCB
2 Surface Finishing HASL(LF), Gold plating, Electroless nickel immersion gold,Immersion Tin, OSP(Entek)
3 Base Material Polyimide(Kapton), Polyester(PET), FR4
4 Copper Foil ED/RA
5 Min. Line Width 0.05mm(2 mil)
6 Min. Line Spacing 0.05mm(2 mil)
7 Min. Hole Size 0.2mm(8mil)
8 Max. Board Size 400mm x 800mm(15.8" x 31.5")
9 Min. Board Thickness 0.1mm(4mil)
10 Min. Solder Mask Thickness 10um(0.4mil)
11 Solder Mask Types Green, Yellow, Black, White, Blue, Red, Clear
12 Profiling Punching, Routing, V-cut
13 Soldering Thermal Resistance 300°C/10 seconds
14 Peeling Strength ≥1.4kg/cm
15 Surface Resistance 10 5 mΩ
16 Insulation Resistance 10 5 mΩ
17 Dielectric Strength 9.8x10 5 v/cm
18 Flammability UL-94V-0
19 Performance Test 100% electrical and electricity performance test
Welcome to contact us, all your inquiry will be replied within 24 hours.

Wells Electronic Technology Ltd. Established in 2000, located in the largest electronic market-Shenzhen, is a professional PCB & PCBA manufacturer with One-stop Service. With 13 years experience, Wells Electronic can provie you PCB design, PCB manufacture, components procurement and PCB assembly services.

PCB Manufacture:

Wells is a leader in the manufacture of high-tech printed circuit boards. We specialize in fabricating high precision, high density and high reliability PCB from 2 to 30 layers. We are certified with ISO9001: 2000 and UL approval. All products will be RoHS compliance.

PCB Assembly:

Wells has professional purchasers who are on the component market. Our factory is equipped with MPM solder paste printer, Siemens D-series high-speed chip shooters, YAMAHA high-speed chip shooters, BTU reflow furnaces and a full set of lead-free equipments. We can deal with all kinds of integrated circuits such as SO, SOP, SOJ, TSOP, TSSOP, QFP, BGA and U-BGA.

PCB Design:

Wells has gathered a large number of engineers who are outstanding in the domestic circuit design industry and have over 10 years of experience in design. We have specially set up LED products design, mobile phone design project group, notebook design project group, backplane design project group and communication products project group, etc.

No order is too small or too large. Welcome you to require a quote!
