60bar / 6.0 MPa Air Compressor

Name: 60bar / 6.0 MPa Air Compressor
Brand: china-manufacturer-directory.com
SKU: 644927015
Availability: InStock
Rating: 4.7 (138 reviews)

Supplier:	Shanghai Davey Machinery Co., Ltd.
Price:	US $ 7500-7800/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	W-0.6/60
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Piston
Performance:	Low Noise
Drive Mode:	Electric
Power Source:	AC Power
Configuration:	Stationary
Material:	Cast Iron
Piston Type:	Closed
Lubrication Style:	Oil-free
Application:	Back Pressure Type, Intermediate Back Pressure Type

Product Description

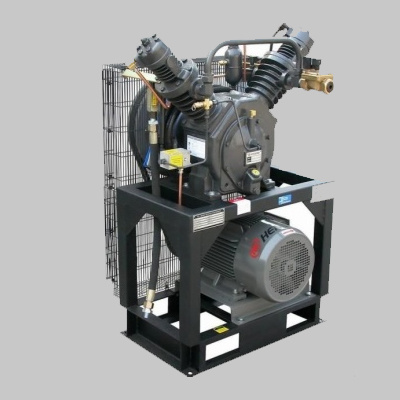

DMC high pressure air compressor
2-6 Mpa, 300-900psi
600-1000L flow capacity

Profermance:
Model: W-0.6/60 air compressor
Capacity: 0.6m3/min
Rated pressure: 60bar
Motor power: 11kw, 380V 50Hz 3pH
Rotor speed: 660rpm
Dimension: 1600-775-1320mm
Weight: 540kg

model	grade	type	capacity N m³/hr	Pressure MPA	Volume flow M³/MIN	Speed R/min	Power KW
SW-2/40	3	S	120	4	2	740	22
VW-6/40	3	V	360	4	6	480	66
VW-8/40	3	V	400	4	8	600	85
DW-10/40	4	D	600	4	10	290	107
DW-12/40	4	D	720	4	12	335	128
VW-6/45	4	V	360	3-4.5	6	980	64
WW-11/40	4	W	660	3-4.5	11	740	121
DW-16/40	4	D	960	4	16	280	165
DW-18/40	4	D	1080	4	18	330	185
DW-21/40	4	D	1260	4	21	380	215
DW-24/40	4	D	1440	4	24	430	245
MW-31/40	4	M	1860	4	31	250	310
MW-39/40	4	M	2340	4	39	330	390
MW-48/40	4	M	2880	4	48	400	490

DMC---A leading air & CNG compressor manufacturer for over 10 years

---ISO 9001 and CE certified

---Global competitive price and guaranty

---High quality integrated with Italy technology

---Customer over 20 countries in the world

DMC is a manufacturer in air compressor and CNG compressor industry. We have over 10 years experience in export business. Valued customers are at US Canada Mexico Argentine Peru Colombia Germany Italy Finland Poland Australia etc. Complete lines units with CE marked and ISO 9001.

European original screw airend and valve are be used to guarantee quality.

Our products line include:

--compact silent designed series PACK (5-20HP)

--3 in 1 compressor with dryer and air receiver series PACK-TA (5-20HP)

--stationary series SC (25-350HP)

--frequency variable speed drive series VSC (25-180HP)

--diesel portable series DSC (80-330HP)

--CNG gas compressor

Inherit excellence traditions of European compressor design, the core components of DMC compressor, such as screw air end and control valve, are all from European company. The air compressor products has quality performance of reliability, save energy, silent to meet customers more higher demand to compress air, reduce used cost and save money for customers instantly.

100% of our compressors are tested by using the latest inspection equipment and techniques, to assure the highest degree of product manufacturing quality and mechanical reliability.
