60tpd Printing Paper Making Machine That Use Wood Pulp as Material

60tpd Printing Paper Making Machine That Use Wood Pulp as Material
Price: US $ 1500000/Set
Trade Terms: FOB,CFR,CIF
Min Order: 1/Set
Pay Type: L/C,T/T

contact & negotiate!!!   John:8615638823327

company:
we are a professional paper machine manufacturer,here,you can get the whole production line,we promise you good solution cause that is what we pursue
so welcome to visit and negotiate



Perfect service:
1.technical consultation
2.Plant design
3.installation and test run
4.training engineers and workers
5.good and long time after-sale service


The business process


1.send your requirements:raw material,capacity,paper grammage
2.we make the solution to you
3.come visit and negotiate
4.sign contract
5.first payment
6.production
7.pay spare money
8.delivery
9.installation ,training,test run
10.production consultlation

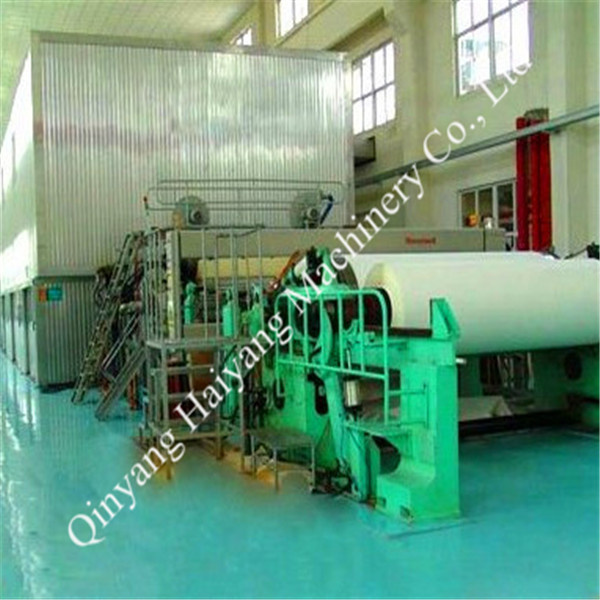

3200mm Cultural Paper Making Machine for Capacity 6T/D




  1. Technical parameter



Raw material

waste paper, white off-cuts from printing factory

Output paper

cultural paper

Net paper width

3200mm
Output paper weight 40-100gm2

Capacity

 60TD

Working speed

140-270 mmin

Designing working speed

300m/min

Rail gauge

4300mm

Drive way

Alternating current frequency conversion adjustable speed, section   drive

Main structure for paper making

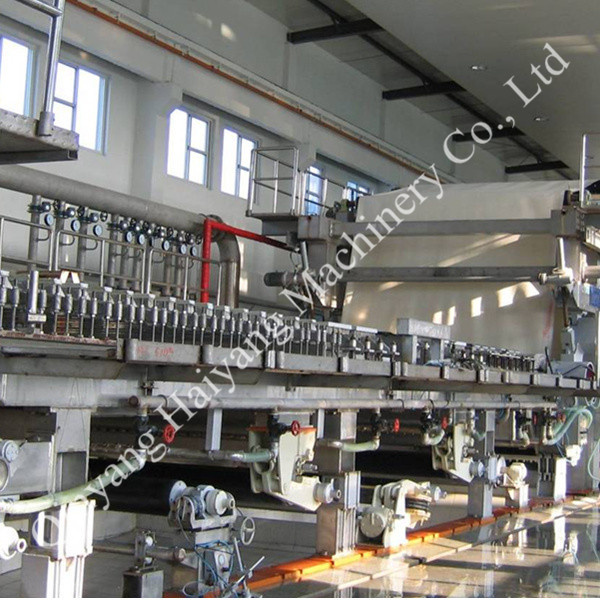

Fourdrinier part:Ø16 meter,with air cushion type flow box; 2 pcs of Φ603700mm×4300mm couch rolls; one pcs of Φ803700mm×4300mm vacuum couch roll; forming table is covered with stainless-steel; panel of the suction box is inset with ceram.

Press part: adopting two press parts with four rolls; one pc of Φ800×3700mm× 4300mm natural marble top roll; one pc of Φ700×3700mm×4300mm rubber flat roll, pneumatic loaded device; one pc of Φ750×3700mm×4300mm bottom vacuum press roll; one pc of Φ700×3700mm×4300mm rubber bottom roll, rubber  hardness 95ºC±2pneumatic pressure device.

Second press part:one pc of Φ800×3700mm×4300mm natural marble top roll; one pc of Φ750×3700mm×4300mm bottom roll; rubber  hardness 95ºC±2pneumatic pressure device.

Dryer part: 22 pcs of Φ1500×3700mm×4300mm alloy dryer can, arranged by 6+ 8+8; the first and the second dryer are chrome plated; equipped with 22 sets of blades.

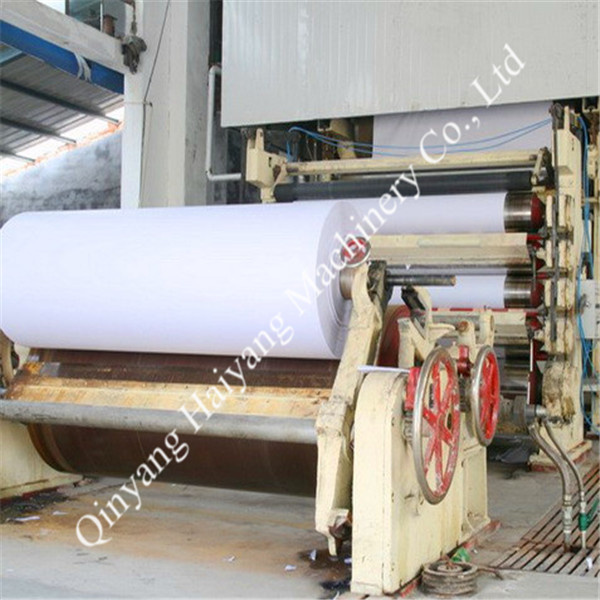

Calendaring part: adopting 2 hardware calendars; 2 pcs of Φ600×3700mm×4300mm steel rolls, pneumatic pressure device.




We have a large scale of products regarding paper machinery, including:
A.Pulping equipment (D-type hydrapulper, cleaner, DD refiner, pressure
      screen, screen basket, pulp pump etc.)
B.Paper machinery (Tissue/Toilet paper machine, Multi-fourdrinier paper
  machine, head box, cylinder mould, dryer cylinder, roller etc.)
C.Paper making finished devices (Paper calender, pope reel,size press,
  paper rewinder etc.)
Meet customers' requirements and exceed customers' expects.
We wish to found long-termcooperation with your company

Prod Model: 3200mm
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type: Cultural Paper
Sheet Former Type: Fourdrinier Wire
Paper Thickness: Normal Specification Paper
Condition: New
Certification: ISO

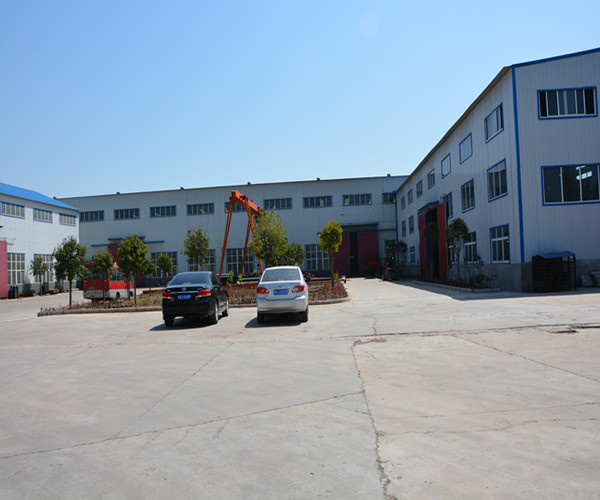

Our company has over 420 employees. There are five factories in China with the total area of 20, 000m2, it has passed the ISO14001 international authentication

Our products include paper making machines, parts and paper processing machines such as kraft paper machine, tissue paper machine, cultural paper machine, fiber separator, hydrapulper, rewinder, napkin folder, tisue slitter and ao on. They have been exported to more than 8countries and regions, such as America, Russia, Brazil, Indonesia, Fiji, etc. Relying in perfect & advanced technology, sincere service and inexpensive products with high quality, we have won the recognition of international market and clients

Why choose us

Our company gathers a technique team of engineers and experts with over 30 years' experience which helps us be a professionall on all kinds of paper making machines and make us competitive on the market. We focus on quality and customers' need and improve our technology and service continually. We believe our devotion to work will help us to achieve global leadership in providing first-class products and superior quality services to customers around the world

Our advantages

Technical advantage

1. Experiences producing team

2. Advanced technological strength

Product advantage

1. Through the international authentication

2. Same material with most preferential price

3. A lot of varieties for the customer to choose

Service advantages

1. Technical consultation

2. Project evaluation

3. Detailed design of factory

4. Installation and test the whole production line

5. Training engineers and workers

6. Supplying spare parts for long time
