Price: | Negotiable/Piece |
---|---|
Trade Terms: | FOB,CIF,EXW |
Min Order: | 100/Piece |
Pay Type: | Paypal |
Prod Model: | poe injector |
---|---|
Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Output Type: | DC |
Connection: | Plug in |
Input Current: | 100-240volts Alternating |
Output Current: | 1.5A |
Output Voltage: | 48V |
Output Power: | 72watts |
Power Output Pin: | 4,5(+) 7,8(-) |
Data Speed: | 10/100m |
Weight: | 214G |
Type: | Wired |
Network Site: | Intermediate Node Routers |
Transfer Rate: | 10/100Mbps |
Firewall: | Firewall |
Ports: | ≤4 |
Port Structure: | Modular |
Application: | Enterprise |
Network: | WCDMA |
Performance: | Non Line Speed Router |
Architecture: | Multi Bus Mmulti CPU |

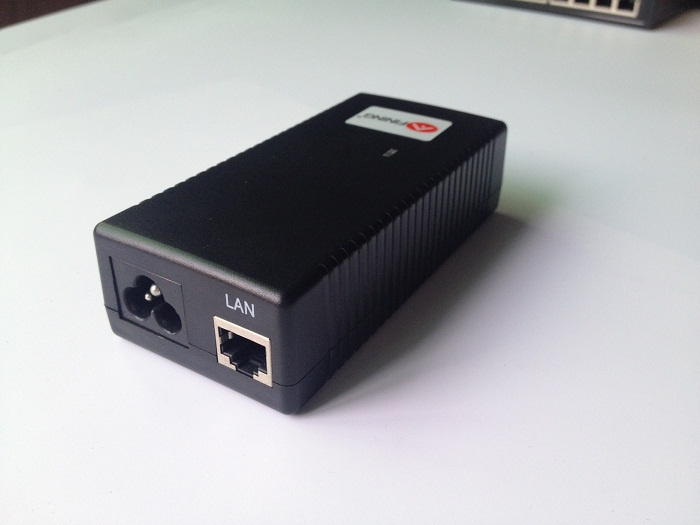

60w poe injector power electronic analyzer, adapter power
Many electronic products need power supply,if you have some products need power and don't know what kind is suitable,you can consult us,we will solve the problem with full patience.
1, Input:
1) Rated Voltage range: 100~240VAC
2) Frequency range: 50/60Hz
3) Inrush current: < 40 A at 230 V
4) Efficiency: >82% (minimum)
5) AC current: 2.5amperes(maximum)
6) Leakage current: < 0,25 mA at 250 V
2, Output:
1) Voltage tolerance: ±3.0%
2) Setup, rising time: 500ms, 50ms at full load
3) Hold up time: >5ms at full load
4) power out pin: midspan 4,5(+) 7,8(-)
5) data speed: 10/100M
6) Rated voltage: 48volts direct current
7) Rated current : 1.5amperes
8) Current range: 0~2.5A
9) Ripple: 480mVp-p
10) Rated power: 60-72W
3,application
routers, switches, wireless APs, network telephones, industrial network terminals or IP cameras,massager,sos telephone,
4, weight and dimension
1) Certification: CE
2) MTBF: 50Khrs, Mil-HDBK-217F(25°C)
3) Weight: 214gram
4) Warranty Period: 2 years
5) Mounting: Desktop
6) Connection: plug
7) PCB dimension: 121.5*33*58mm
5, Environment
1) Storage temp & humidity: -20~+85°C, 10~95% RH
2) Vibration: EN 61131-2
3) Working temp: 0 ~+40°C
4) Working humidity: 20 ~90% RH non-condensing
6, Safty & EMC
1) Isolation resistance: I/P-O/P: 100M ohms/500VDC
2) EMC: EN55022 Class B
3) Standards: design refer to EN60950
4) Withstand voltage: I/P-O/P: 1.5KVAC, 5mA, 60S
7, Protection
1) Protection Short circuit: YES
2) Over load protection: YES
3) Over power protection: YES
