Product Specifications
| Prod Model: |
48V 0.3A |
| Enter Attribute Here (e.g.: Size): |
Enter Value Here (e.g.: 12 Inches) |
Product Description

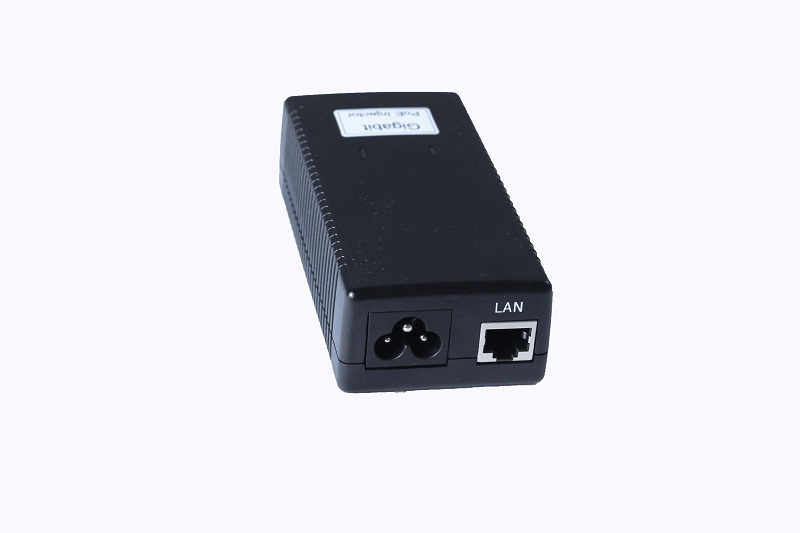

POE injector 48V 0.3A PPOE adapter used for wimax voip with 802.3af non-compliant
Specifications
Wimax voip use POE injector
48V constant voltage output
100-240VAC universal input
802.3af non-compliant
2 years warranty
POE injector 48V 0.3A PPOE adapter used for wimax voip with 802.3af non-compliant
Model: FAS4800030-C44(Wimax Voip POE adapter)
Output
Rated voltage 48VDC±3%
Rated current 0.3A
Ripple ≤480mVp-p (full load)
Rated power 14.4W
Start up, rise, hold Start up time 500ms, rise time 50ms (full load), hold time>5ms(full load)
load regulation 24VDC±3%
Transmission speed 10M/100M(optional)
Connection method Data: 4&5(+),7&8(-)
Input
Rated voltage 100~240VDC @50~60Hz
Voltage range 90~264VAC @50~60Hz
Max current 0.2A
Efficiency >80%
Surge current < 40A at 230V
Leakage current <0.25mA ( at 264VAC/50Hz )
Protection
Withstand voltage Input to output 1.5KVAC/3mA ( 1min@50Hz )
Lighting voltage Withstand 1KV line to line, 2KV line to ground.
Insulation resistance Put 500Vdcvoltage on input and output terminal for 1 minute, test resistance>7MΩ
Over load Enter into hiccup mode when load reach 115~200% of full load, recover after remove.
Environment
Work temperature, humidity -10°C ~ +40°C,10% ~ 90%RH without Condensation
Storage -20°C ~ +65°C,0% ~ 93%RH without Condensation
Vibration amplitude 0.35mm, vibrate 10 circles in direction of X,Y,Z, frequency 10-55Hz
Safety
Standard UL60950,EN60950-1,EN61000,ANSI C63.4
EMC
Standard EN55022 Class B,EN55024,EN61000-3-2,EN61000-3-3
Other
MTBF Continually work 8 hours per day, life>50,000 hours
Burn in At temperature 40±5°C, humidity 0%~93%, 100Vac~240Vac/50Hz, load:80%~100% / 2 hours
Dimension 95X43X28mm
Weight 105g±15g
Packing PE bag +white box
Note
1. All parameters NOT specially mentioned are measured at 230VAC input and rated load and 25°C of ambient temperature.
2. Ripple & Noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
