Product Specifications
| Prod Model: |
62T51-A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Diammer: |
80mm |
| Installation: |
General Installation Meter |
| Theory: |
Electronic Meter |
| Power Source: |
AC Meter |
| Display: |
Analog |
| Application: |
Current Measurment |
| Accuracy: |
2.5 |
| Display Ammeter Type: |
Single Pahse Analog Panel Meter |

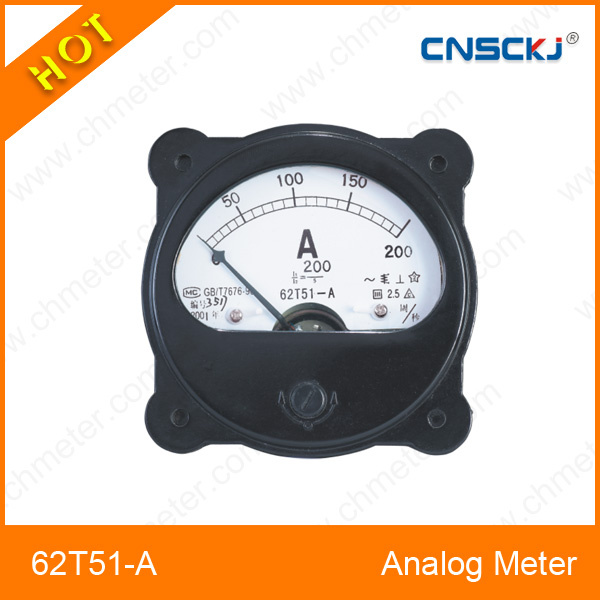

Product Description
Main Structure and working Principle
62 T2, 62T51 series round meter are electromagent and adopt repellency structure. The meters are composed by measuring mechanism and indicating device. It is with bakelite casing, safe measuring terminals and efficient connection, printing dial and transparent glass cover.
|
Product name |
Specification |
Measuring Range |
Accurancy |
|
DC ammeter |
62C2-A |
50uA -20A (INPUT DIRECTLY)20A-10kA */60mV/75mV (external device) |
Class 2.5 |
|
DC voltmeter |
62C2-V |
5V-750V (INPUT DIRECTLY) 450V-450kV */1mA*/5mA (external device) |
Class 2.5 |
|
AC ammeter |
62T51-A,62T2-A |
500mA -50A (INPUT DIRECTLY)5A-10kA */5A (external device) |
Class 2.5 |
|
AC Voltmeter |
62T51-V.62TX-V |
15V-600V (INPUT DIRECTLY)380V-450kV*/100V (external device) |
Class 2.5 |
|
Frequency meter |
62T51-Hz |
45-55Hz, 45-65Hz, 55-65Hz Rated voltage :100v,220v,380v |
Class 2.5
|
