6640 Nmn Insulation Paper Composite

Name: 6640 Nmn Insulation Paper Composite
Brand: China-Manufacturer-Directory.com
SKU: 745143205
Availability: InStock
Rating: 4.4 (117 reviews)

Supplier:	Xuchang Jinzhi Insulation Materials Co., Ltd.
Price:	US $ 18kg
Min Order:	100kg
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	6640 F Class
Markets:	North America,Eastern Europe,Southeast Asia,Eastern Asia,Western Europe
Application:	Insulating Varnish
Type:	Insulation Paper
Chemistry:	Hybrid Insulation
Material:	Paper
Thermal Rating:	F 155
Brand:	Jinzhi Insulation Materials
Maximum Voltage:	≥6kv

Product Description

Properties

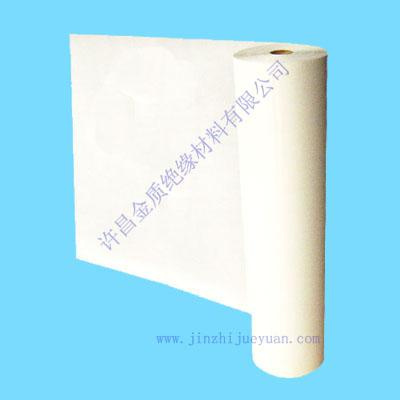

NMN / NPN (6640) is made of two layers of Du Pont Nomex® Paper laminated with one layer of polyester (Mylar® ) film. It has good dielectric properties, high heat resistance and mechanical strength, is suitable for electric motors as slot, phase, turn-to-turn, liner insulation of class F.
Remarks:
1. Standard width: 910mm. Packing: In Carton
2. Min Qty: 1000kg each size in a lot.
3. Shelf life: One year from the data of delivery.

Item		Unit	Value
Structure		Mil	222	232	242	252	272	2102	333	353
Structure Thickness	Nomex®	mm	0.050	0.050	0.050	0.050	0.050	0.050	0.075	0.075
	PET Film	mm	0.050	0.075	0.100	0.125	0.188	0.250	0.075	0.125
	Nomex®	mm	0.050	0.050	0.050	0.050	0.050	0.050	0.075	0.075
Nominal Thickness		mm	0.17	0.19	0.22	0.24	0.30	0.37	0.24	0.30
Thickness Tolerance		mm	+ 0.02
Nominal Area		m 2 /kg	5.88	5.10	4.30	3.70	2.80	2.20	3.80	3.00
Specific Weight		g /m 2	170	196	230	270	357	450	263	330
Tensile Strength (min)	MD	N/cm	160	160	180	220	270	320	220	270
Tensile Strength (min)	TD	N/cm	90	110	130	180	200	250	180	200
Elongation (min)	MD	%	15	10	12
Elongation (min)	TD	%	20	15	18
Breakdown Voltage (min)		KV	8	12	14	16	18	24	16	18
Bond Strength at room temp			No Delamination
Bond Strength at 155 + 2 C			No Delamination, No Blister, No Adhesive Flow

Jinzhi Insulation

Our company has gradually developed into a specialized enterprise which produces class B, class F and class H insulation materials. Our main products include insulating varnish and resin, flexible laminate, woven tape, impregnated fiberglass binding tape, varnished fabric, fiberglass sleeving and insulation paper. The insulation system has been approved by UL and our products have passed RoHS test. Aterials Co., Ltd is an esteemed insulation material manufacturer!
