6650 Nhn Insulating Materials Paper Composite

Name: 6650 Nhn Insulating Materials Paper Composite
Brand: China-Manufacturer-Directory.com
SKU: 745146525
Availability: InStock
Rating: 4.5 (116 reviews)

Supplier:	Xuchang Jinzhi Insulation Materials Co., Ltd.
Price:	US $ 43kg
Min Order:	100kg
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	6650 NHN H-Class
Markets:	North America,Eastern Europe,Southeast Asia,Eastern Asia,Western Europe
Application:	Insulating Varnish
Type:	Insulation Paper
Chemistry:	Hybrid Insulation
Material:	Paper
Thermal Rating:	H 180
Brand:	Jinzhi Insulation Materials
Maximum Voltage:	≥6kv

Product Description

Properties

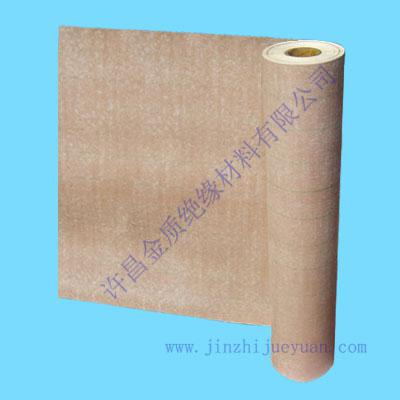

NHN / NKN (6650) is made of two layers of Du Pont Nomex® Paper laminated with one layer of polyimide (Kapton® ) film. It has good dielectric properties, high heat resistance and mechanical strength, is suitable for electric motors as slot, phase, turn-to-turn, liner insulation of class H.
Remarks:
1. Standard width: 910mm. Packing: In Carton
2. Min Qty: 500kg each size in a lot.
3. Shelf life: One year from the data of delivery.

Properties			Unit	Value
Nominal Thickness			mm	0.15	0.17	0.20	0.23	0.25	0.30	0.33
Thickness Tolerance			mm	±0.02	±0.02	±0.03	±0.03	±0.04	±0.04	±0.05
Specific Weight			g/m2	155±25	175±25	195±30	230±35	260±40	300±45	330±50
Film Thickness			mm	0.025	0.025	0.025	0.025	0.025	0.025	0.025
Tensile Strength (min)	MD	unfold	N/cm	120	140	160	180	200	250	270
	MD	fold		70	90	90	130	120	150	170
	TD	unfold		80	90	100	110	150	170	180
	TD	fold		50	70	80	80	100	110	130
Elongation (min)		unfold	%	10
Elongation (min)		fold	%	8
Breakdown Voltage (min)		unfold	KV	8		9			10
Breakdown Voltage (min)		fold	KV	7		8			9
Bond Strength At Room Temp.				No Delamination
Bond Strength At 200 + 2 C, 10 min.				No Delamination, No Blister, No Adhesive Flow

Jinzhi Insulation

Our company has gradually developed into a specialized enterprise which produces class B, class F and class H insulation materials. Our main products include insulating varnish and resin, flexible laminate, woven tape, impregnated fiberglass binding tape, varnished fabric, fiberglass sleeving and insulation paper. The insulation system has been approved by UL and our products have passed RoHS test. Aterials Co., Ltd is an esteemed insulation material manufacturer!
