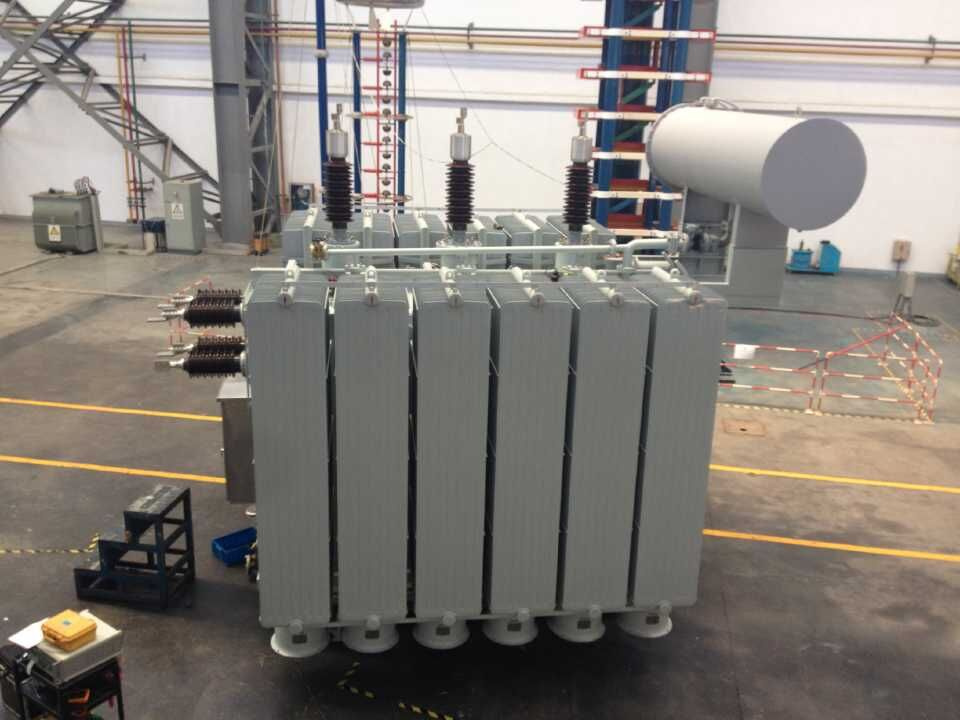

67kv Kema Tested Power Transformer with Nltc
| Price: |
US $ 95000-100000/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
Product Specifications
| Prod Model: |
SF-50000/67 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Altitude: |
up to 1, 000m Above Sea Level |
| Environment: |
Outdoor |
| Special Conditions: |
Depends on The Customer |
| Application: |
Power |
| Phase: |
Three |
| Coil: |
Core-type Transformer |
| Cooling Method: |
Oil-immersed Type Transformer |
| Winding Type: |
Two-winding Transformer |
| Brand: |
Tianan |
Product Description
- General
1.1Rating:- Capacity range :3500-80000KVA
- Frequency :50Hz ,60Hz
- On-load tap changer
- ONAF
1.2 Standard:
IEC60076 (1-5) Power transformers
IEC60296 Specification for mineral insulating oil for transformers and switchgear
IEC60354 Loading guide for oil immersed transformer
IEC60317: Insulated Bushings
ANSI, IEEE, AS, GB etc.
2. Product Features
2.1 Low loss
Electrical calculation by sophisticated computer programs, combine electrical shielding and magnetic circuit technology.
The core is made of cold rolled, grain orientation high magnetic silicon steel, to reduce the load loss and no-load current.
2.2 Low partial discharge
HV lead adopts specially molded insulation parts which effectively ensure the insulation strength and reduces partial discharge.
2.3 High strength
The tank can withstand the vacuum test and positive pressure test.
Omni directional location between the core and the tank to guarantee the horizontal position during transportation and operation.
2.4 Low Noise
The step lapped joints of the core laminations reduce the additional losses arising in the corner portions, reduce the load current and electromagnetic noise.
Reduce of the flux density and increase the shock absorbing measures at design to reduce the noise.
2.5 Maintenance-free
Adopts the bell type tank and the international leading technology, ensure 30 years durability,and maintenance-free operation.
3. Structure
3.1 Iron core
The iron core is made of cold rolled grain oriented silicon steel sheet. Laminations are cut to length on GEORG cut-to- length line with step-lap cut and automatic stacking functions. The multi-step lamination structure can reduce the loss and noise .The steel sheet in the core limbs and yokes are clamped together by glass-epoxy bonds.
3.2 Winding
High quality enameled or paper covered copper is used as conductor, the winding was made as drum type, spiral type, improved spiral type, continuous type and interleaved type to ensure the insulation strength. Standard tapings are ±2*2.5%of the HV winding.
3.3 Tank
The tank, cover and the conservator are made by corrugated steel plate. For the small transformers, we use a deep tank and a cover, but for larger transformers, we manufacture bell type .The corrugated construction are an effective way for oil cooling.
- Insulation oil
The tanks are filled with high quality grade mineral oil as per IEC296 and it is PCB and PCT free. The oil is used to help cooling the transformer. It is also used provide part of the electrical insulation between internal live parts.
Insulation oil
3.5 Tap changer
Tap changers are used to regulate the output voltage of the transformers to required levels .We achieve this by changing the ratios of the transformer on the system by altering the number of turns in the HV winding .Tap changers are on load (OLTC).
Data Sheet of Typical Products
66kV Power Transformer
6300kVA-63000kVA two-winding transformer with on load tap changer| Rated capacity(kVA) | Rated voltage and tapping range
HV Tapping LV Vector impedance
Range% group voltage% | No
Load
Losses
kW(9) | On
Load
Losses
kW(9) | No
Load
Losses
kW(10) | On
Load
Losses
kW(10) | No
Load
Losses
kW(11) | On
Load
Losses
kW(11) |
| 6300 |
63.66.69 ±8X1.25 6.3, 6.6, YNd11 9
10.5,11
| 10 | 36 | 9.4 | 34 | 8.3 | 34 |
| 8000 | 12 | 42.8 | 11.1 | 40.4 | 9.8 | 40.4 |
| 10000 | 14.2 | 50.4 | 13.1 | 47.6 | 11.6 | 47.6 |
| 12500 | 16.8 | 59.9 | 15.4 | 56.5 | 13.6 | 56.5 |
| 16000 | 20.2 | 73.5 | 18.4 | 69.4 | 16.3 | 69.4 |
| 20000 | 24 | 89.1 | 21.8 | 84.2 | 19.2 | 84.2 |
| 25000 | 28.4 | 105.3 | 25.6 | 99.5 | 22.6 | 99.5 |
| 31500 | 33.7 | 126.9 | 30.3 | 119.9 | 26.8 | 119.9 |
| 40000 | 40.3 | 149 | 36.1 | 140.7 | 31.9 | 140.7 |
| 50000 | 47.6 | 184.5 | 42.6 | 174.3 | 37.6 | 174.3 |
| 63000 | 56.2 | 222.3 | 50.3 | 210 | 44.4 | 210 |
630kVA-63000kVA two-winding transformer with off load tap changer| Rated capacity(kVA) | Rated voltage and tapping range
HV Tapping LV Vector impedance
Range% group voltage% | No
Load
Losses
kW(9) | On
Load
Losses
kW(9) | No
Load
Losses
kW(10) | On
Load
Losses
kW(10) | No
Load
Losses
kW(11) | On
Load
Losses
kW(11) |
| 630 |
Yd11
±5 8
_______
63.66.69 ___________6.3,6.6,10.5,11_________
YNd11
±2X2.5 | 1.6 | 7.6 | 1.4 | 7.1 | 1.3 | 7.1 |
| 800 | 1.9 | 9 | 1.7 | 8.5 | 1.5 | 8.5 |
| 1000 | 2.3 | 10.4 | 2 | 9.9 | 1.8 | 9.9 |
| 1250 | 2.7 | 12.6 | 2.4 | 11.9 | 2.1 | 11.9 |
| 1600 | 3.2 | 14.9 | 2.9 | 14 | 2.6 | 14 |
| 2000 | 3.8 | 17.6 | 3.4 | 16.6 | 3 | 16.6 |
| 2500 | 4.5 | 20.7 | 4 | 19.6 | 3.5 | 19.6 |
| 3150 | 5.3 | 24.3 | 4.8 | 23 | 4.2 | 23 |
| 4000 | 6.3 | 28.8 | 5.6 | 27.2 | 5 | 27.2 |
| 5000 | 7.4 | 32.4 | 6.6 | 30.6 | 5.9 | 30.6 |
| 6300 | 9.2 | 36 | 8.5 | 34 | 7.5 | 34 |
| 8000 | 11.2 | 42.8 | 10.2 | 40.4 | 9 | 40.4 |
| 10000 | 13.2 | 50.4 | 12.1 | 47.6 | 10.7 | 47.6 |
| 12500 | 15.6 | 59.9 | 14.2 | 56.5 | 12.5 | 56.5 |
| 16000 | 18.8 | 73.5 | 17.1 | 69.4 | 15.1 | 69.4 |
| 20000 | 22 | 89.1 | 20.2 | 84.2 | 17.9 | 84.2 |
| 25000 | 26 | 105.3 | 23.9 | 99.5 | 21.1 | 99.5 |
| 31500 | 30.8 | 126.9 | 28.4 | 119.9 | 25.1 | 119.9 |
| 40000 | 36.8 | 149 | 34 | 140.7 | 30 | 140.7 |
| 50000 | 44 | 184.5 | 40.1 | 174.3 | 35.4 | 174.3 |
| 63000 | 52 | 222.3 | 47.7 | 210 | 42.1 | 210 |
132kV Power Transformer
S10 series 132kV double winding non-excitation tap-changing transformer
Type | Voltage and tap range |
Connection | No-load loss
(kW) | Load loss
(kW) | No-load current
(%) | Impendence
(%) | Dimension
LxWxH (mm) |
| HV | LV |
| S(F)10-6300/132 |
110
115
121
132
±2
x2.5% | 6.3
6.6
10.5
11 |
YNd11 | 8 | 34 | 0.65 |
10.5 | 4090 x 2980 x 4750 |
| S(F)10-8000/132 | 9.5 | 42 | 0.65 | 4140 x 3020 x 4780 |
| S(F)10-10000/132 | 11.2 | 48.5 | 0.64 | 4380 x 3080 x 4780 |
| S(F)10-12500/132 | 12.1 | 59 | 0.55 | 4700 x 4200 x 5000 |
| S(F)10-16000/132 | 16.0 | 73 | 0.5 | 3710 x 2880 x 4420 |
| S(F)10-20000/132 | 18.5 | 86 | 0.5 | 5250 x 3937 x 4260 |
| S(F)10-25000/132 | 21.3 | 98 | 0.5 | 5280 x 3980 x 4270 |
| S(F)10-31500/132 | 24.2 | 120 | 0.47 | 5300 x 4060 x 4310 |
| S(F)10-40000/132 | 29.3 | 139 | 0.47 | 5410 x 4150 x 4330 |
| S(F)10-50000/132 | 36 | 180 | 0.5 | 5900 x 4380 x 6100 |
| S(F)10-63000/132 | 40 | 217 | 0.5 | 6810 x 4520 x 5885 |
| S(F)10-75000/132 | 48 | 246 | 0.5 | 5970 x 4600 x 6500 |
| S(FP)10-75000/132 | 39.2 | 248 | 0.5 | 6420 x 4437 x 6356 |
| S(FP)10-80000/132 | 51.9 | 273 | 0.5 | 6980 x 4390 x 6435 |
| S(FP)10-90000/132 | 53.2 | 283 | 0.4 | 12440 x 5200 x 6700 |
| S(FP)10-150000/132 | 15.75 | 79.2 | 420 | 0.4 | 9410 x 3450 x 6213 |
| S(FP)10-240000/132 | 13.8 | 141 | 601 | 0.4 | 8500 x 5750 x 6400 |
Type | Voltage and tap range | Connection | No-load loss
(kW) | Load loss
(kW) | No-load current
(%) | Impendence
(%) | Dimension
L xW xH (mm) |
| HV | LV |
| S(F)Z10-6300/132 |
110
115
121
132
±8
x
1.25% |
6.3
6.6
10.5
11. |
YNd11 | 8.5 | 35 | 0.55 |
10.5 | 4940 x 3710 x 4620 |
| S(F)Z10-8000/132 | 10.5 | 43 | 0.55 | 5010 x 3770 x 4680 |
| S(F)Z10-10000/132 | 12 | 50 | 0.55 | 5040 x 3810 x 4730 |
| S(F)Z10-12500/132 | 14.5 | 59 | 0.55 | 5100 x 3870 x 4760 |
| S(F)Z10-16000/132 | 16.4 | 70 | 0.5 | 5160 x 3900 x 4810 |
| S(F)Z10-20000/132 | 18.9 | 86 | 0.5 | 5760 x 3780 x 4730 |
| S(F)Z10-25000/132 | 22.6 | 101 | 0.5 | 5820 x 3840 x 4790 |
| S(F)Z10-31500/132 | 26.4 | 117 | 0.45 | 6320 x 4035 x 5160 |
| S(F)Z10-40000/132 | 32.6 | 142 | 0.4 | 6550 x 4670 x 5740 |
| S(F)Z10-50000/132 | 34.6 | 179 | 0.4 | 6270 x 4560 x 5865 |
| S(F)Z10-63000/132 | 39 | 217 | 0.4 | 6320 x 4610 x 5930 |
S10 series 132kV double winding on-load-tap-changing transformer
S10 series 132kV three winding non-excitation tap-changing transformer| Type | Voltage and tap range |
Connection | No-load loss
(kW) | Load loss
(kW) | No-load current
(%) | Impendence
(%) | Dimension
L x W x H (mm) |
| HV | MV | LV | Step up | Step down |
| S(F)S10-6300/132 | 110
115
121
132
± 2 X
2.5% | 35
36.6
38.5
±2
X
2.5% | 6.3
6.6
10.5
11.0 |
YN,
yn0,
d11 | 9.5 | 45 | 0.7 |
HV- MV
17.5
HV-LV
10.5
MV-LV
6.5 |
HV- MV
10.5
HV-LV
17.5
MV-LV
6.5 | 4950 x 3320 x 3610 |
| S(F)S10-8000/132 | 11.5 | 53 | 0.7 | 4970 x 3360 x 3640 |
| S(F)S10-10000/132 | 13.5 | 62 | 0.7 | 5020 x 3410 x 3690 |
| S(F)S10-12500/132 | 16 | 73 | 0.7 | 5080 x 3430 x 3740 |
| S(F)S10-16000/132 | 18.6 | 87 | 0.7 | 5140 x 3490 x 3780 |
| S(F)S10-20000/132 | 20.5 | 101 | 0.6 | 5300 x 3670 x 4200 |
| S(F)S10-25000/132 | 23.1 | 119 | 0.6 | 6106 x 4877 x 4941 |
| S(F)S10-31500/132 | 31.5 | 143 | 0.64 | 6060 x 4930 x 5010 |
| S(F)S10-40000/132 | 36.4 | 174 | 0.6 | 7600 x 4300 x 5575 |
| S(F)S10-50000/132 | 48 | 208 | 0.5 | 7680 x 4360 x 5640 |
| S(FP)S10-63000/132 | 45.2 | 248 | 0.58 | 7850 x 4860 x 6020 |
| S(FP)S10-75000/132 | 53.1 | 283 | 0.58 | 7800 x 4440 x 6610 |
*The above specification such as connection group, impedance, HV and LV rated voltage, and tap range can be designed and manufactured as requested by customer.
