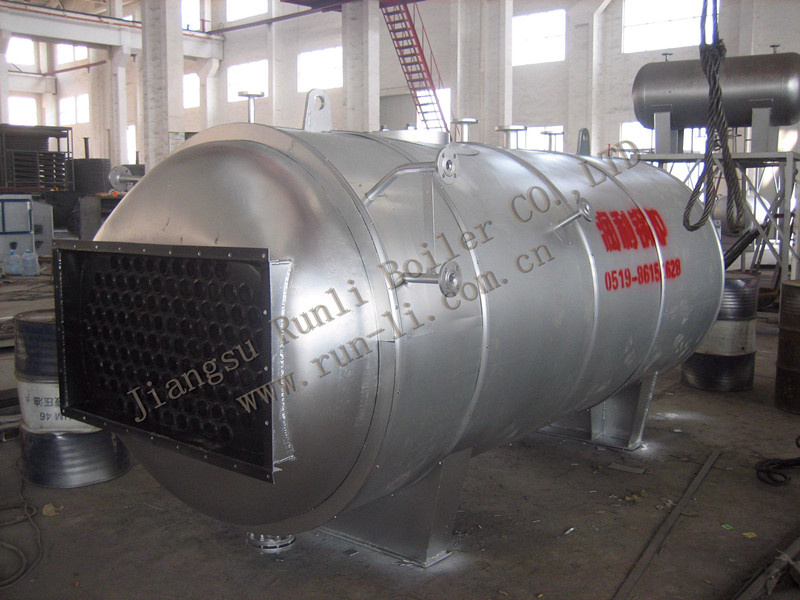

6t Boiler Energy-Saving System About Waste Heat Boiler

Name: 6t Boiler Energy-Saving System About Waste Heat Boiler
Brand: China-Manufacturer-Directory.com
SKU: 730117075
Availability: InStock
Rating: 4.9 (26 reviews)

Supplier:	Jiangsu Runli Boiler Co., Ltd.
Price:	US $ 3800-4000/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Place Style:	Horizontal
Media:	Steam and Water
Pressure:	Pressure
Manufacturing Level:	A
Usage:	Industrial
Fuel:	Wasted Heat
Burning Style:	Internal Firing Boiler

Product Description

Runli hot oil boilers have been widely used in textile, chemical, leather, construction materials and other industries over the past 20 years. However, because of high temperature of return oil, generally (200~250), causing the smoke temperature is also high. Under normal circumstances, up to 300~350, which causing a lot of heat wasted in vain into the atmosphere, in today's world energy shortages, the era of rising energy prices, energy conservation has become the country's sustainable development needs.
The company's long-term commitment of energy utilization can provide you a variety of programs and projects of the use of low-temperature waste heat

Modle(×104kcal/h)	120	200	300	400	600	800	1000	1200
Exhaust gas temperature	350	350	350	350	350	350	350	350
Exhaust volume (Nm3/h)	2800	4600	7000	9300	14000	19000	23000	28000
Waste heat boiler steam pressure (MPa)	0.6	0.6	0.6	0.6	0.6	0.6	0.6	0.6
Wasted heat boiler steam volume(t/h)	0.27	0.44	0.65	0.87	1.34	1.83	2.23	2.73
Equipped with waste heat boiler	0.3	0.5	0.8	1	1.5	2.0	2.5	3.0
Smoke temperature before dust collector	152	150	150	149	146	149	149	147
Production of steam in one year(t/h)	1944	3168	4680	6264	9648	13176	16056	19656
Economic benefits in one year(million)	0.292	0.475	0.702	0.94	1.05	1.97	2.41	2.95

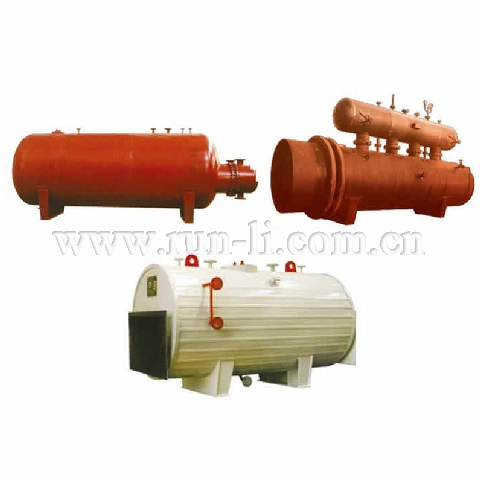

Jiangsu Runli Boiler Co., Ltd is specialized in designing and manufacturing the steam boiler, thermal oil boiler and waste heat boiler in 6 series, such as coal burning, oil (gas), Coal Water Mixture, firewood, saw dust (grate boiler) and electric heating, the heating load varies from 0.5tons to 75 tons per hour. And with more than 150 models. All products produced by the company are widely used for textile, printing and dyeing, timbering, chemistry, central heating supply and other fields.

"Runli" brand product will meet client's personalized requirement with best competitive price, whereas the company will provide all clients best pre-sales and after-sales service, is willing to create a wonderful future with all friends at home and abroad.
