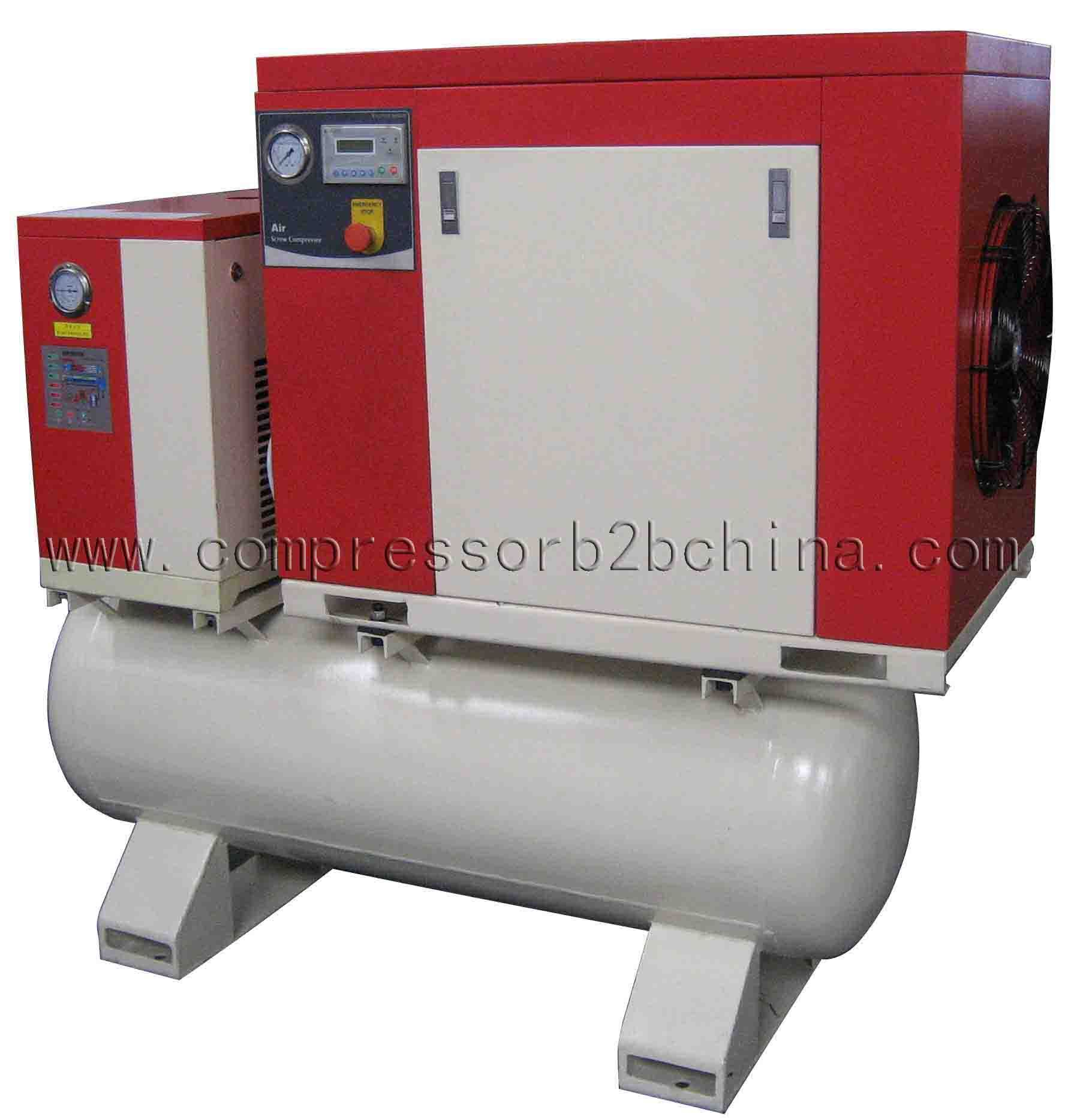

7.5HP Screw Air Compressor with Dryer (PACK5-TA)

Name: 7.5HP Screw Air Compressor with Dryer (PACK5-TA)
Brand: china-manufacturer-directory.com
SKU: 635722095
Availability: InStock
Rating: 4.5 (81 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Product Specifications

Prod Model:	PACK5-TA
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Configuration:	Stationary
Power Source:	AC Power
Type:	Screw
Lubrication Style:	Lubricated
Mute:	Mute
Electric:	50 60Hz Option

Product Description

3-in-1 screw compressor type
Specification:
7.5 HP, Screw Air Compressor, with air dryer, 50gal receiver
- 29 CFM @ 115 PSIG, 0.8 m3 @ 8 bar
- 230 v / 60 Hz; 380 v / 50 Hz; 415 v / 50 Hz
- L 1800 mm * W 635 mm * H 1350 mm
- 380 kg
- 100% duty operation
- Germany/Italy build screw air end
- All control valve and filter are from Italy original
- NEMA / CE Standard Electrical Motor
- CE / UL Listed PLC controls
- Simple Configuration
- Low Noise; Low Vibration
- ASME/CE. 220L /50 Gallon receiver
- 1 Nm3/min, AC220, 50/60Hz, Refrigeration Air Dryer
- 1 Year System Warranty

Why Piston When You Can Have Screw?

Screw air compressor is a machine which is designed according to the operational principle that twin-screw rotation cause changes of air cubic content.
Pressure of Air Compressor
The introductions of the pressure unit which is often used in screw air compressor
Operating pressure, commonly known as exhaust pressure which is the maximum pressure of exhaust air form air compressor.

Model.	Pressure		F.A.D		Motor
Model.	Bar	Psi	L/min	CFM	Kw.	Hp
PACK5 -TA	7	100	850	30	5.5	7.5
	8	115	800	28
	10	150	700	25
	13	190	600	21
PACK7-TA	7	100	1,160	41	7.5	10
	8	115	1,100	39
	10	150	1,000	35
	13	190	800	28
PACK11-TA	7	100	1,700	60	11	15
	8	115	1,600	57
	10	150	1,300	46
	13	190	1,000	35
PACK15-TA	7	100	2,400	85	15	20
	8	115	2,300	81
	10	150	2,000	71
	13	190	1,800	64

DMC---A leading air & CNG compressor manufacturer for over 10 years

---ISO 9001 and CE certified

---Global competitive price and guaranty

---High quality integrated with Italy technology

---Customer over 20 countries in the world

DMC is a manufacturer in air compressor and CNG compressor industry. We have over 10 years experience in export business. Valued customers are at US Canada Mexico Argentine Peru Colombia Germany Italy Finland Poland Australia etc. Complete lines units with CE marked and ISO 9001.

European original screw airend and valve are be used to guarantee quality.

Our products line include:

--compact silent designed series PACK (5-20HP)

--3 in 1 compressor with dryer and air receiver series PACK-TA (5-20HP)

--stationary series SC (25-350HP)

--frequency variable speed drive series VSC (25-180HP)

--diesel portable series DSC (80-330HP)

--CNG gas compressor

Inherit excellence traditions of European compressor design, the core components of DMC compressor, such as screw air end and control valve, are all from European company. The air compressor products has quality performance of reliability, save energy, silent to meet customers more higher demand to compress air, reduce used cost and save money for customers instantly.

100% of our compressors are tested by using the latest inspection equipment and techniques, to assure the highest degree of product manufacturing quality and mechanical reliability.
