Product Specifications
| Prod Model: |
PRP-T71 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Screen Size: |
7" |
| Screen Type: |
Resistance Screen |
| Operating System: |
Android |
| Memory: |
1GB |
| Network Mode: |
3G |
| Hard Disk Capacity: |
16G |
| CPU Type: |
MTK |
| CPU Core: |
Quad-Core |
| Webcam: |
Webcam |
| Battery Capacity: |
＞8000mAh |
| Built-in Bluetooth: |
Built-in Bluetooth |
| Built-in Microphone: |
Built-in Microphone |
| Card Reader: |
Card Reader |
| Rear Camera Pixel: |
＞5MP |
| Front Camera Pixel: |
2MP-3MP |
| Fingerprint: |
Fingerprint |
Product Description
Main feature:
CPU MT6589 1.2GHz Quad coretex A7 Quad Core.
Seamless communication functions, EDGE, GPS, 3G. (optional)
Slim, rugged, sealed and lightweight design
Sunlight Readable function; 400cd/m2 brightness.
IP66 MIL-STD-810G/Method516.6/Procedure IV

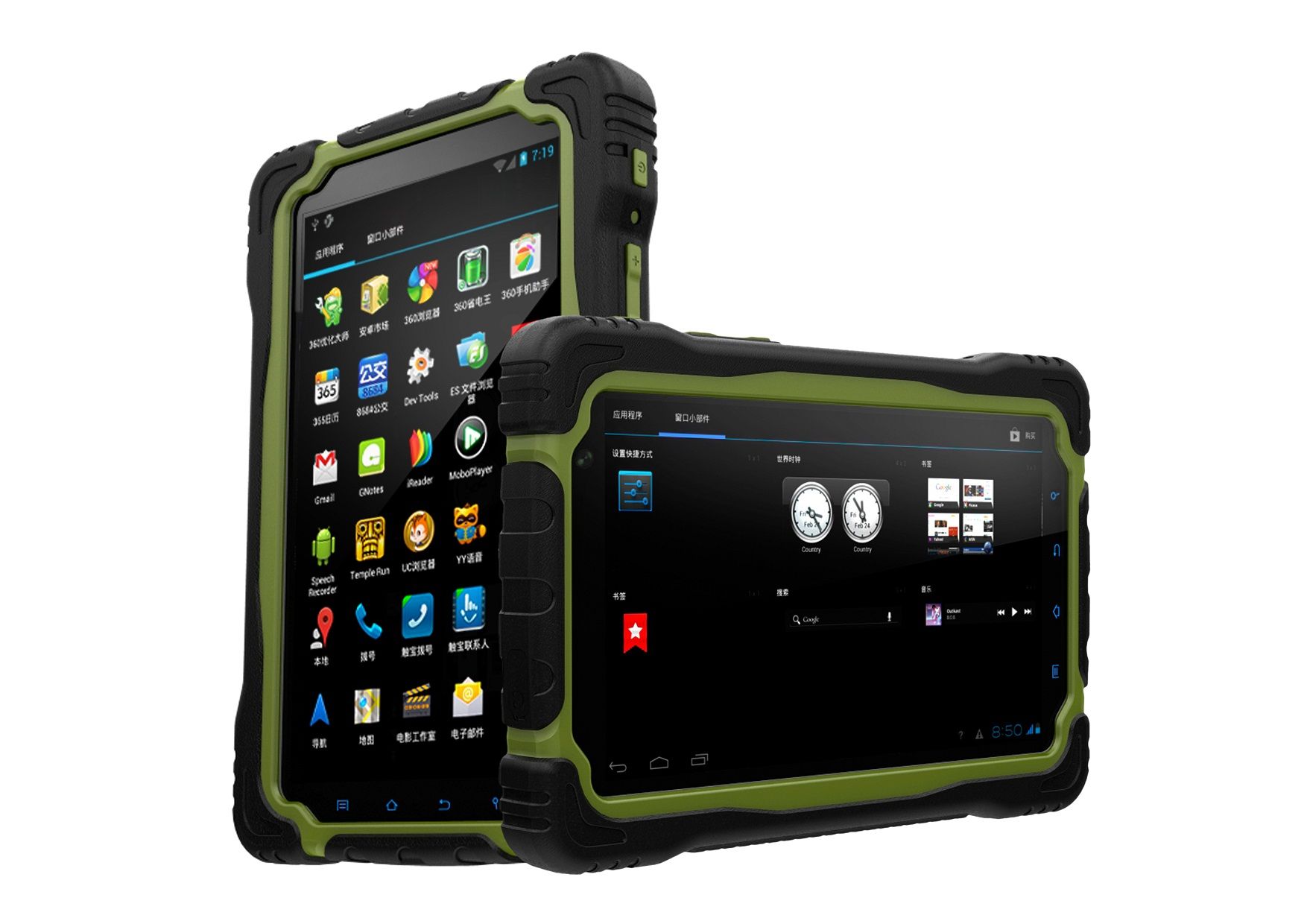

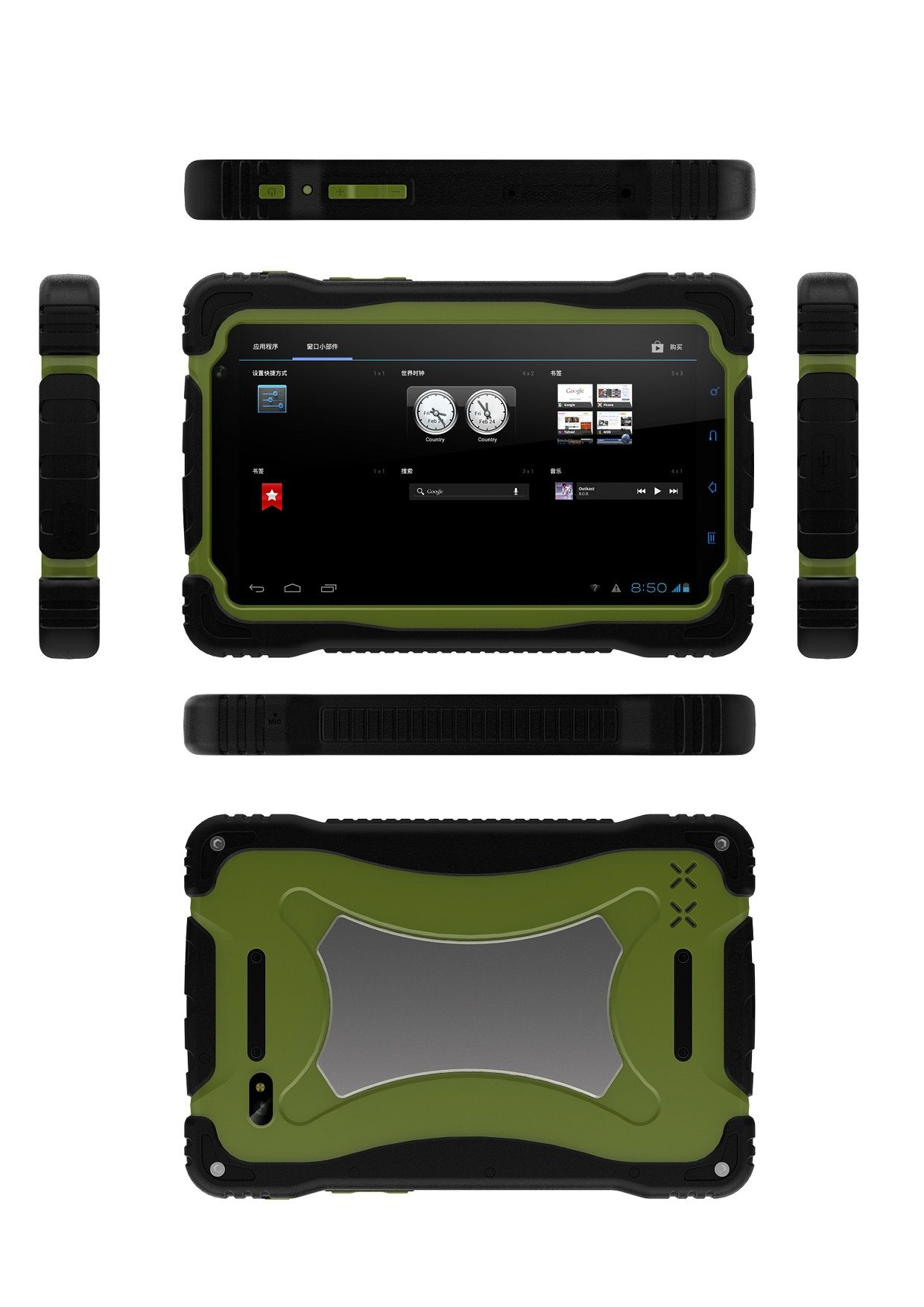

7" IP66 Rugged Tablet PC
W/ ARM Platform
W/ 9650mAh battery with up to 8 hours battery life
Dual camera and RFID/NFC/Zegbee/Finger scanner (optional)
Wide coverage accessories to meet different deployment needs
The compact vehicle dock and vehicle
Introduction:
PRP-T71 is the best functionality and ergonomics for user application. Based on MIL-STD-810G military standard reliability (high temperature, low temperature, shock, vibration, drop), the Rugged Tablet PC pass from -20 to 60° C, highly transit shock and vibration, 1.8m drop to plywood on concrete surface, and also IP66 fully sealed to against water & dust damage. With sunlight readable touch screen coating technology, fanless thermal conduction design, and expansion flexibility for barcode scanner, 2G/3G, GPS, Tracker, WIFI RFID (optional) or wireless combo communication functions. Our Rugged Tablet PC can meet the most of harsh outdoor environment application and will be the best tool of your job assistance.
| CPU | MTK MT6589 1.2GHz Quad coretex A7 Quad Core |
| Display | 7″ AFFS/IPS, 400nits, Sunlight readable |
| Resolution | 1024(W) x 600(H) |
| Touch Screen | G+G capacitive touch screen |
| Memory | 1G memory |
| Storage | 8G flash/ 16G flash (Optional) |
| Speaker | High Quality Speaker (20x30 membrane type) |
| Network | WiFi IEEE 802.11a/b/g/n and Bluetooth 4.0 |
| Webcam | 2 Mega-pixel camera audio input(Front bezel)
8 Mega-pixel camera with LED Flashlinght(Rear bezel) |
| Motion Sensor | Support |
| GPS | Support |
| 2G/3G | Support |
| Sim card | Support |
| OTG | Support |
| G-sensor | Support |
| GPRS/WAP | Support |
| FM | Support |
| RFID | Optional |
| I/O | 1 x micro USB signal input |
| 1 x 3.5mm headphone |
| 1 x power input (USB micro) |
| 1 x RS232 for industrial use (Optional) |
| 1 x GPIO for industrial use (Optional) |
| Extensional storage | 1 x micro SD card (T-FLASH card), Max Up to 32Gb). |
| In Front Control | 1 x Power button |
| LED Indicator | Power on/off; Volume |
| Protection Class | IP66 for whole device (MIL-STD-810G) |
| Certifications | CE, ROSH |
| Operating System | Android 4. 2.1. |
| Drop | 1.8m drop resistance |
| Mechanical Shock | Amplitude: 1-19Hz/1.0mm m; Accelerated speed: 19-200Hz/1.0g
(MIL-STD-810G Method 516.6 ProcedureIV, Crash Hazard Shock) |
| Operating height | Max up to 4500m |
| Power Supply | Power Adapter: AC100V~240V, 50~60Hz input; 5VDC 2.1A |
| Battery | Internal Smart Lithium Polymer battery, 9650mAH |
| Fanless | Fanless design |
| Dimension | 200 x 136 x 21mm(L x W x H) |
| Installation | Tablet/hand |
| Net Weight | 650g |
| Gross Weight | Abt 1.56kg |
| Operating temp | -20~+60° C |
| Storage temp | -40~+80° C |
| Humidity | 5~95% without condensation |
| Ordering information | PRP-T71: 7' ' rugged tablet PC' s, With MT6589, W/1Gb RAM+8Gb flash, W/WIFI, W/G+G capacitive touch, W/Battery, W/IP66 Water/dust/shock proof, W/7' ' sunlight readable, 400cd/m2. |
