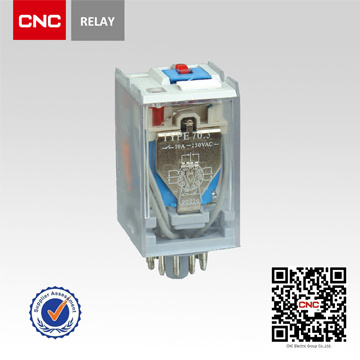

70.3 General Purpose Relay Type CNC Mini Electromagnetic Relay (70.3)

Product Specifications

Prod Model:	70.3
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Contact Form:	3z
Contact Capacity:	10A
Coil Voltage:	AC 12~240V; DC 12~110V
Coil Power:	2.2va(AC), 1.3W(DC)
Pick-up:	DC: ≤ 75% AC: ≤ 80%
Drop-out:	DC: ≥ 10% AC: ≥ 30%
Mounting Form:	Socket
Operation Temperature:	-40o C ~ +55o C
Weight:	About 85g
Dimensions (Mm):	37X33X59

Product Description

About CNC
1. China Top 500 Enterprise.
2.26 years rich experience in manufacturing electrical products.
3. Sales in over 100 countries.
4. Pass ISO9001, ISO14001 CCC CE CB IEC ICO certificate and standard.

70.3 General purpose relay Type CNC Mini Electromagnetic Relay(70.3)

70.3 General purpose relay Type CNC Mini Electromagnetic Relay(70.3) is general by electromagnet, armature, leaf spring, contact and so on, its working circuit by low voltage control circuit and high voltage circuit two parts. Electromagnetic relay can realize remote control and automation control. As long as the voltage on both ends of the coil with a certain, will flow through a certain amount of current in the coil, producing electromagnetic effect, the armature is under the action of the electromagnetic attraction to overcome the return spring tension suction to the core, so as to drive the armature of the moving contact and the static contact (normally open contacts) and off. After the coil power, electromagnetic suction also disappear, armature reaction force in the spring to return to the original position, the moving contact with the original static contact (normally closed contact) release. So suck, release, so as to achieve the conduction, the purpose of the cut in the circuit. For relay "normally open, normally closed contacts, it can be to distinguish: Relay coil is not energized the static contact in the off state, called a" normally open contacts "; In the connected state of static contact is called "normally closed contacts.

Specifications
1. Contact form: 3Z
2. Contact capacity: 10A
3. Coil voltage: AC 12~240V; DC 12~110V
4. Output: 2000 PCS/day
5. CE, CB, ISO9001, 14001, IEC
