Product Specifications
| Prod Model: |
ENC3383 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certification: |
RoHS |
Product Description
ENC3383 creates multi-channels H.264 channel on your building, campus or
metropolitan-area IP network from the output of various video devices. These include
video cameras, DVD/Blu-ray players, digital signal systems, personal computers and
even set-top boxes for premium TV channels. Encoder blades are available for Full
HD MPEG4 AVC encoding with high density, high reliability and advanced compress
arithmetic. It is equipped with the latest advances in video compression technology
to deliver unsurpassed video quality at lowest bitrates and low latency. It also can be
used to support IPTV, broadcast and video surveillance applications.
Moreover, it has an ASI input to multiplex the input TS with the 16 or 20 encoded
SPTS to generate a MPTS output.
The ENC3383's highly bandwidth efficient MPEG-4 CBR encoding and native IP output
make it possible to deliver exciting and competitive HD services to broadcast operators.

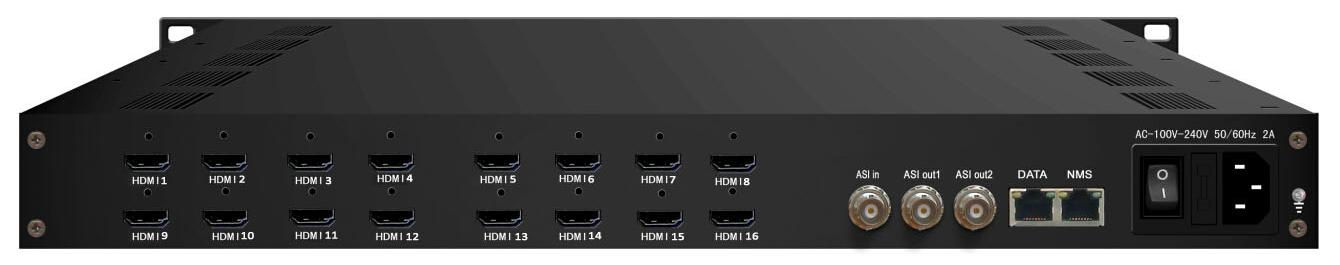

Up to 8/16/20 channels HDMI per chassis(HDCP)
1 way ASI inputs with multiplexing
Advanced MPEG-4 AVC HP@L4 video compression
ASIC technologies which offer broadcast video quality, generally video bitrate advised 720p about 2mbps,1080p about 6mbps for lowest bitrates
Support resolution reduce,1080P encoding Input to 576i.
HDMI 1.3a interface, Auto detect the HDMI input of resolutions
Simultaneous outputs via SPTS/MPTS over GbE IP Port
UDP/RTP protocol, Municast, Unicast
Filter Null Packet Support
Supports resolution: 1080p@50/60Hz, 1080i@50/60Hz, 720p@50/60Hz
From 1 to 7 TS packets/IP packet
MPEG-1 Layer2 , HE-AAC(V2) (option)or LC-AAC(option) audio encoding
Management via External SNMP and local front panel
Easy-to-Use System Management
Built-in time base correction and video pre-processing
Either MPTS or any of SPTS via ASI out
Reliable:Hardware based for 24/7 operation
Technical Specifications
Input |
| Video Input | 8/16/20 x HDMI 1.3a |
| Audio Input | HDMI embedded audio |
| Multiplexing |
| 1x ASI inputs, BNC |
| output |
| ASI Output | DVB Interface: Two identical ASI stream out in MPTS Mode, Comply to EN 50083-9 ASI Standard, BNC, 75Ω |
MPEG-TS
over
IP Output | IP output:1000M Base-T Ethernet UDP/IP output, Multicast/Unicast supported |
| Output Format: 188 by test |
| Support SPTS and MPTS mode simultaneously |
SPTS mode: means creation of multiple SPTS which can be multicast/unicast to 16 different ports or IP addresses
MPTS mode: means set one MPTS to one IP address or port |
| Video Encoding |
| Comply to the International standard:MPEG-4 AVC
High Profile, Level 4.0 |
| Bit Rate: 0.8Mbps~20Mbps |
| Aspect ratio:16:9(HD) |
| Scene change detection |
| Bit rate mode: VBR,CBR |
| Brightness / Contrast / Saturation / Chroma /Horizontal Offset |
| GOP Structure:IBBP |
| Stereo or ingle channel |
| Audio Encoding |
| Sampling Rates: 48KHz |
| Bit rate: 32,64, 128, 192, 256, 384kbps |
| Audio encoding: MPEG-1 Audio Layer,AAC(option) |
| Quantization:24bit |
| Resolution |
| Accordance to CCIR601 standard |
Resolution: 1920×1080_60p,1920×1080_50p,
1920×1080_60i,1920×1080_50i
1280×720_60p, 1280×720_50p |
| Management |
| 10/1000 Base T Ethernet, RJ45, SNMP |
| 7 keys: Up, Down, Left, Right, Enter, Esc, Lock |
| Front-panel LCD configuration, LED indicate light |
| SNMP protocol support |
| Environment |
| Comply to GB13837-92 & GB8898-88 standard |
| Power Supply: AC 100-250V 50/60Hz |
| Power consumption: 20 W |
| Operating temperature:-10 - 50°C |
| Storage temperature: -10 - 75°C |
| Dimensions: 300(L)x483(W)x 44mm(H) (1RU) |
| Weight: 7kg |
