Product Specifications
| Prod Model: |
Caster-T320D |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description
Overview:

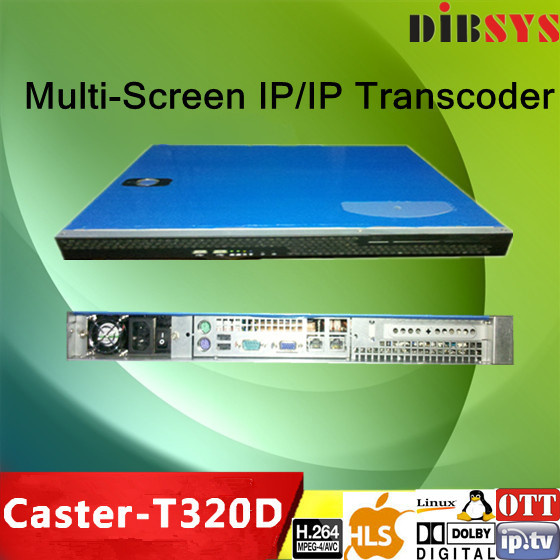

Caster-T320 The high-performance solution allows content owners and service providers to significantly increase the content hours delivered while adhering to processing timetables and video quality targets in a cost-effective and scalable manner. A real-time multi-channel/format IP-based transcoder for multi- screen delivery(TV, Mobile, and Web). With the support for various encapsulation formats base on embedded Linux operating system appliances. It relies on an Intel 6 Core CPU as an accelerator.
Caster-T320can push /pull an MPEG-2 to H. 264, H. 264 to H. 264 H. 264 to MPEG-2 transcoder or transcaler video streams to various servers, such as Adobe Flash Server, Wowza Server, Windows Media Server, Apples HTTP Live Streaming, and some other servers base on UDP/RTSP/RTMP/HTTP/RTP protocols.
Key features:
High-quality, high-density transcoding of 8, 10, 12 SD or 4, 5, 6 HD MPEG-2, MPEG-4 and H. 264 channels output
Multiple output streams per input service to support Broadcast, VOD, IPTV and OTT, mobile/ web, Set top box applications
SD/HD MPEG/H. 264-to- H. 264 any to any transcoding
Mulltiple Codec, Protocol, Bitrate, Resolution, Profile per channel
HD-to-SD down, SD-to-HD up conversion
Up to four ASI or two GbE IP inputs
GbE IP outputs-UDP, RTSP, RTMP, HTTP, HTTP Live Smooth(HLS), FTP
M3u8 playlist files
Audio support: AAC, MPEG, MP3 or Digital AC-3 passthrough
High quality pre-processing including filtering, Deinterlacing, cross scaling, image insertion
Based on embedded unbuntu Linux
Superior video quality at ultra-low bitrates, generally video bitrate advised SD about 500kbps, 720p about 1Mbps, 1080 about 2.5Mbps for lowest bitrate
Selectable any resolution from QSIF to 1080P
Easy-to-Use System Management
Web Management
Main applications:
1. Digital cable and Multi-screen headend
2. IPTV, Over-the-air TV distance learning
3. Mobile, Broadcast, Internet TV/Web TV
4. VOD content encoding
DIBSYS designs, makes and sells innovative products for the wireless and cable communications industry.
According to two markets in currently:
. Digital Terrestrial TV transmission(China standards)
. Digital Cable TV transmission(DVB-C standards)
Founded in November. 2009, and established in HangZhou city, Zhejiang Province, China High-Technology Zone. The main products includes China digital Terrestrial TV standards equipment such as DTMB Modulators, DTMB SFN Adapter. And digital Cable TV standards headend equipment such as Multiplexer, MPEG2 Encoder, QAM modulator.
Prefessional DVB-s receives, etc, Furthermore DIBSYS designing the IPQAM Modulator, h264 Encoder, Statistic Multiplexer new products. Each year we continue to add features to all our products.
Beyond standard products, DIBSYS also offer customized products includes OEM components and solutions.
Technical core competencies:
DIBSYS's staff is a power house of qualified electronic and software engineers master engineers. With such a wealth of technical resources we are capable of handling the technical and service requirements for any scope of project. Our company will continue to invest heavily in the field in the future to ensure that new products are developed, along with ongoing improvements to existing products.
. Solutions for some key international standares: DVB-C, DTMB
. Digital Channel Modulator: COFDM
. Terrestrial SFN and MFN Solutions such as DTMB and DVB-T
Industry relationships:
Our partners with value added resellers and systems integrators around the the world to complete network solutions as welll as individual products and services.
Our also offer technology and component for other equipment manufacturers:
. OEM Partnerships and Services.
. Re-brandable platforms
. Design in engineering and consulting services
. Can rapid to market support for new and emerging solutions applications and standards in time
