Product Specifications
| Prod Model: |
HPK812 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| 1 U Rack: |
19 Inches |
| Type: |
CATV（Cable Television）Equipment |
| Function: |
Signal Transmission Equipment |
| Certification: |
RoHS |
| Condition: |
New |
Product Description

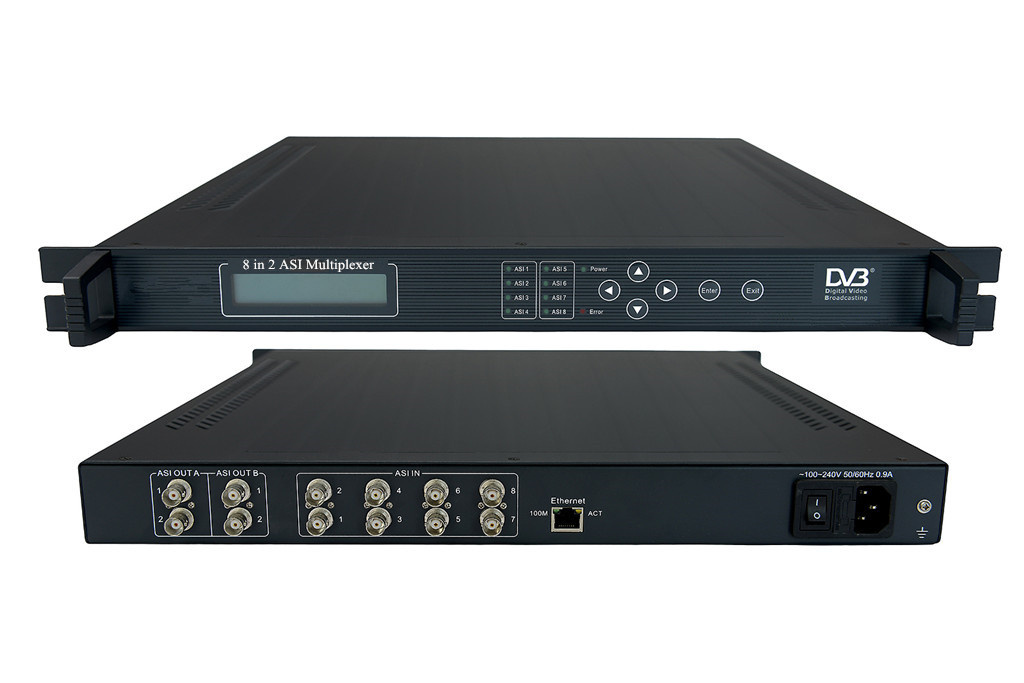

HPK812 8 IN 2 ASI Multiplexer
Overview
HPK812 8IN2 ASI Multiplexer is a 2-separate ASI out TS (transport stream) remultiplexer for digital broadcasting TV system. It has 8×ASI input (input bit rate can reach up to 270Mbps), 2 pairs of ASI (A&B) output (output bit rate can reach up to 108 Mbps), and 1 Ethernet port for network controlling. It can also insert EPG (Electronic Program Guide), CA (Conditional Access), as well as data broadcasting to each output stream. Besides it suits 1U rack and can be operated by front panel LCD/Keyboard and controlled by NMS (Network Management Software).
Features
u Comply with ISO13818 and EN300468 standards
u 2x2 separate ASI output (two different MPTS stream)
u Support PSI edit
u Support PCR correction and PID re-mapping
u 8M bytes caches, anti-burst stream
u LCD/Keyboard control by front panel and network management by Ethernet
Technical Specification
Input
ASI
8×BNC interface
Packet Format
188/204 automatic detection
Output
ASI
2 groups, each has 2×ASI (1 as mirror)
Bandwidth
max 160mbps
PID Range
0000-1FFF
Re-Multiplexing
MPEG-2 transport stream re-multiplexing
PID re-mapping (auto or manual)
PCR correction
automatically generate PSI/SI tables
Control
network RJ-45, 10/100M
Keyboard+LCD
General Features
Size
410mm×280mm×44mm
Temperature Range
0~45°C (Operation); -20~80°C (Storage)
Power
100-240VAC, 50Hz, 25W
Hipro Electronics Co., Ltd. Have been specialised in the research, manufacture of satellite digital CATV front-end equipments and IPTV equipments for more than 10 years in Chengdu, China
We offer full range of IRD & Decoder, Encoder, Multiplexer, Scrambler, Modulator, all-in-one device, We help network operator build digital TV broadcasting system based on DVB-C, DVB-T/T2, DVB-S/S2, ISDB-T solution, and IPTV system solution.
We are also one of leading IPTV operator, adopt the most advanced P2P IPTV streaming technology, customer can watch channels in the world only if there are internet. We can offer Arabic channels IPTV receiver, Turkish channels IPTV receiver, Indian channels IPTV receiver, etc.
All of our products have to undergo a burn-in test before shipment, they are fully connected and have to function correctly for 30 uninterrupted days. Only then can they be shipped to customers.
Hipro have a powerful technical engineer team to provide professional technical support and after sale service.
