Outline Overview

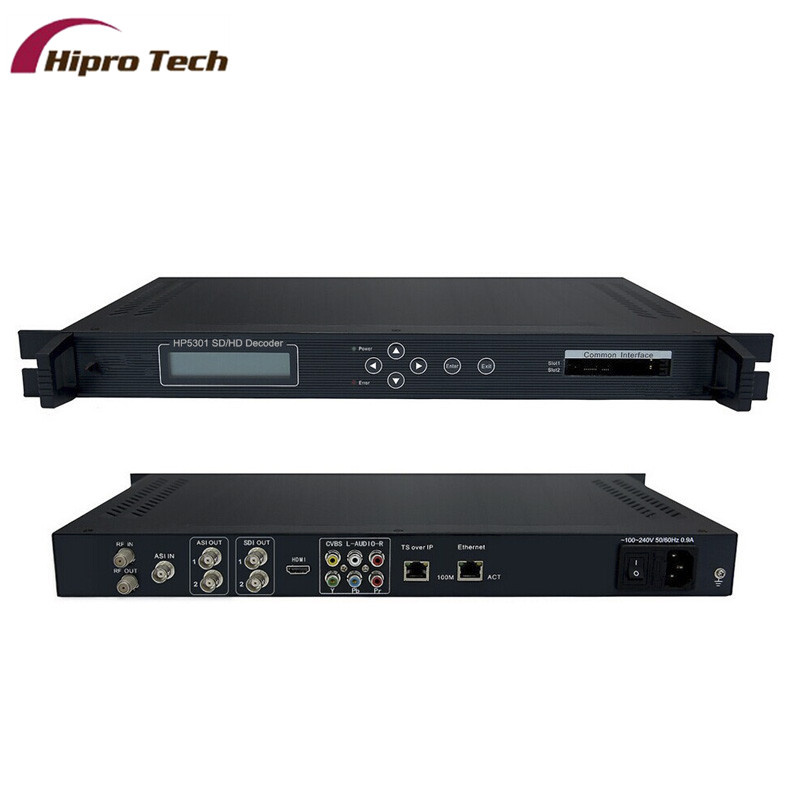

HP-5301 SD/HD satellite decoder with CI slot has 1*DVB-S/S2 RF and 1*ASI input interfaces and supports MPEG4 AVC/H.264 and MPEG2 video encoding. The input DVB satellite signal will be demodulated to TS stream and output by AV, ASI, SDI, HDMI, YPbPr, or IP interface. It has 2 CI slots, supporting 2 CAM cards. It provides powerful signal receiving, descrambling and decoding, which meets a variety of application requirements. It's one of the main digital head-end equipments for receiving and encrypted satellite programs.
Main Feature
1. Support DVB-S/S2 or ASI input or IP input
2. Support 2 CI slots
3. Support AV, ASI, SDI, HDMI, YPbPr, IP output
4. Support MPEG-2,MPEG-4,H.264 video decoding
5. Support audio resample (32KHz, 44.1KHz, 48KHz)
6. Real-time monitoring of input and output signal
7. LCD/Keyboard control by front panel and network management by Ethernet
Technical Specification
|
Input |
RF |
DVB-S2 (950-2150MHz), F-head |
|
ASI |
DVB standard, BNC interface |
|
Output |
ASI |
2xASI (1 as mirror), DVB standard, ,BNC interface |
|
CVBS |
BNC interface |
|
Audio |
1 pair of unbalanced audio, BNC interface |
|
SDI |
DVB standard, BNC interface |
|
HDMI |
1xHDMI 1.3 |
|
YPbPr |
DVB standard, BNC interface |
|
IP |
100Mbps RJ45, TS over IP/UDP |
Video
Decoding |
Decode Mode |
SD: MPEG-2 SD 4:2:0 MP@ML |
|
SD: MPEG-4 AVC SD MP@L4 |
|
HD: MPEG-4 AVC HD [email protected]/H.264 [email protected] |
|
Video Format |
PAL / NTSC |
Audio
Decoding |
Decode Mode |
MPEG-1 layer 2 / MP3 |
|
Dolby Digital(AC-3);Dolby Digital Plus(E-AC-3) |
|
MPEG-4 AVC /AAC Plus (HE-AAC v1/v2) |
|
General Features |
Size |
482mmx240mmx44mm |
|
Temperature |
0~45(Operating),-20~80(Storage) |
|
Power |
100-240VAC,50Hz,25W |
|
