Product Specifications
| Prod Model: |
ES-1008F |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Red |
| Zones: |
4,8,16 Zones Optional |
| Rated Voltage: |
24V |
| Panel Type: |
Conventional |
| Customization: |
Available |
| Signal Transmission: |
Wired Alarm |
| Working Mode: |
Passive |
| Certification: |
CCC |
| Application: |
Indoor |
| Sensor Type: |
Double Technology Alarm |
| Working Principle: |
Electromechanical |
| Transmission Mode: |
Cable |
| Alarm Volume (',within 1m): |
≥110dB |
| Usage: |
Smoke |
| Type: |
Fire Alarm |
| Receive Frequency: |
Wired |
Product Description

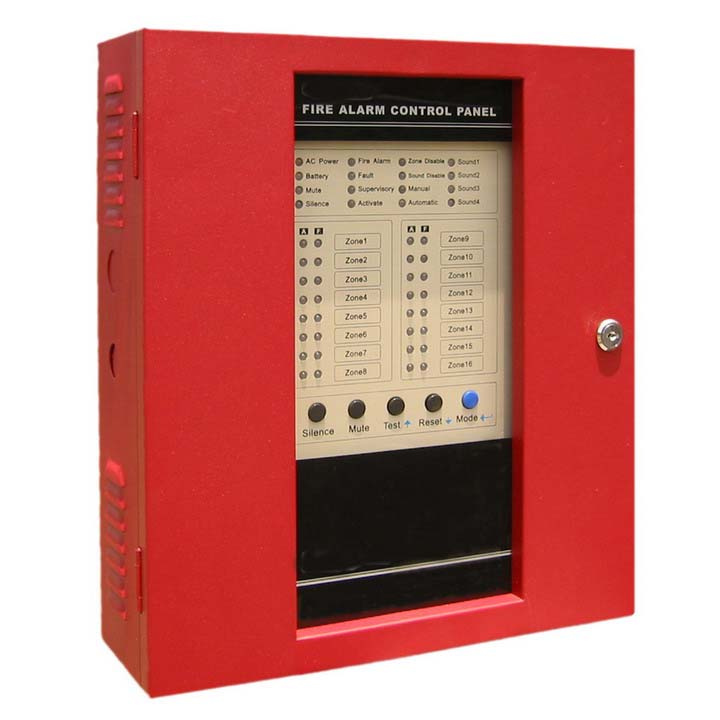

8 zones wired fire alarm system for conventional (ES-1008F)
1.4 zones(ES-1004F), 8 zones(ES-1008F), 16 zones(ES-1016F) for choice;
2.2 Sound Output Conventional Fire Alarm Control panel:
3.4( 8 or 16) Style B (Class B) Initiating Device Circuits (IDCs).
4. All zones accept two-wire smoke detectors and any normally-open contact devices.
5. Four built-in, Style Y (Class B) Notification Appliance (Signal) Circuits (NACs).
6. Alarm, Trouble and Supervisory, Form-C relays standard.
7.24-volt operation.
8. Resettable four-wire smoke detector power @ 500 mA.
9. Non-resettable power @ 500 mA.
10. One-man walk-test programmable for silent or audible test.
11. Disable/Enable control per IDC.
12. Reverse polarity protection.
| MODEL | ZONES |
| ES-1004F | 4 |
| ES-1008F | 8 |
| ES-1016F | 16 |
