Product Specifications
| Prod Model: |
MG-800AT |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| We Can Design By Pls& Tower Software: |
as Per Client Requirements and Data |
| Certification: |
ISO |
| Materials: |
Steel |
| Usage: |
as Per Client Requirements and Data |
| Standard: |
as Per Client Requirements and Data |
| Style: |
as Per Client Requirements and Data |
| Structure: |
as Per Client Requirements and Data |
| Conductor Circuit: |
as Per Client Requirements and Data |
Product Description

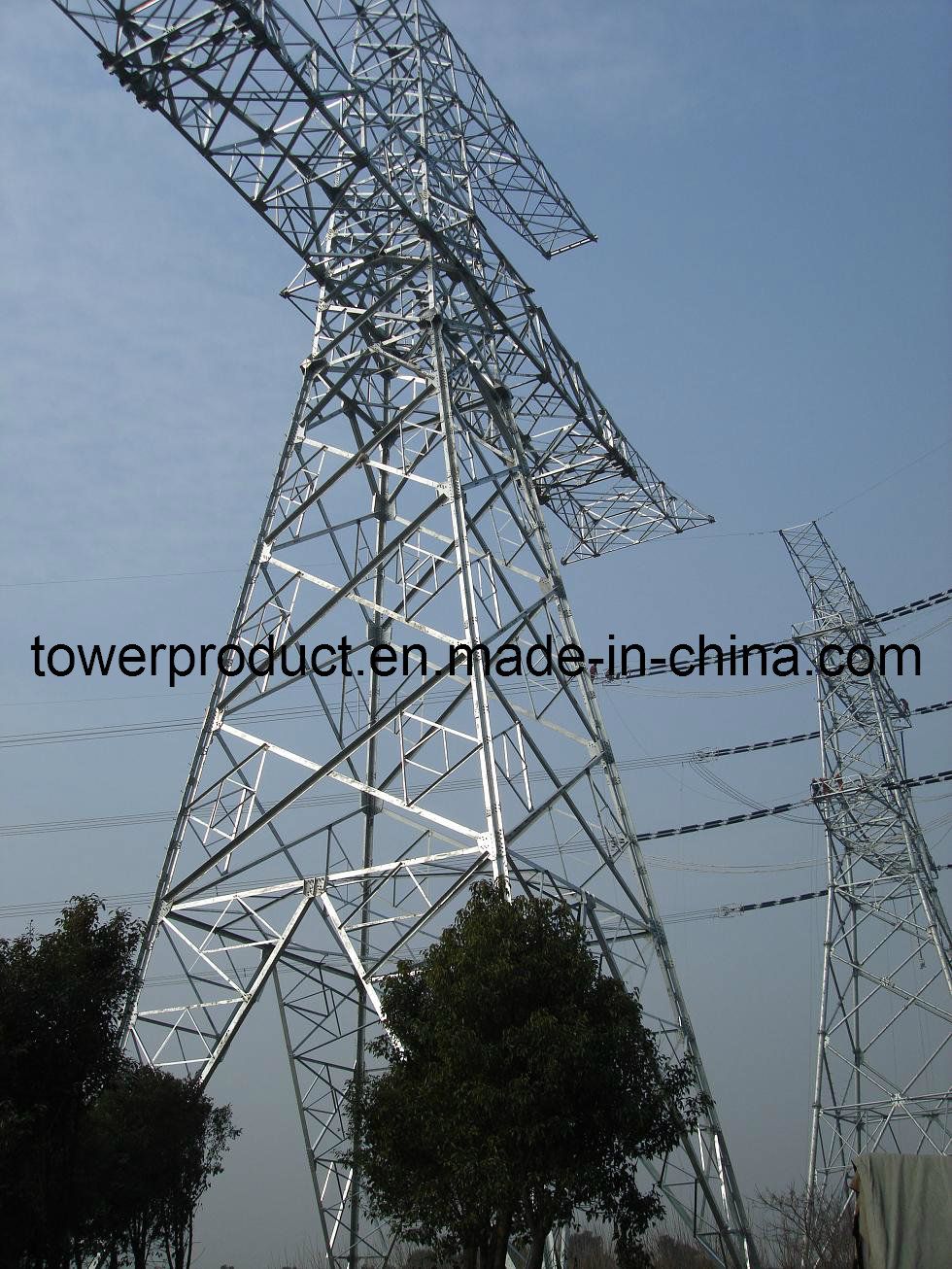

800KV power transmission line angular Towers
800KV power transmission line belongs to Extra-high voltage power transmission project. In south China, or west China cross east China power transmission line, we often adopt 800KW power transmission and distribution line.
MEGATRO provided top quality towers for 800KV power transmission line for Chinese clients. In material, we adopt high strength steel such as ASTM A572 GR50, GR65, Q420, Q460, or other type steel to meet project requirements. Especially in design, local condition, climate and earthquake also importance for us, MEGATRO can optimized design and make tower solid, high strength, proper span distance, good wind resistance, and economy in the use of materials.
MEGATRO is equipped with sophisticated machinery and equipment for the manufacture of monopole for 800KV power transmission line angular tower, and offers a variety of designs to meet client specific. Lattices of triangular cross-section are most common, and square lattices are also widely used. After fabrication all 800KV power transmission line angular tower, are delivered to the galvanizing facility to be Hot DIP Galvanized. Towers are processed through the facility by Caustic Cleaning, Pickling, and then Fluxing. These strict procedures insure years of maintenance free towers.
Other information
Place of Origin: Qingdao, Shandong, China.
Availability size: Based on the customer's requirements
Material: Chinese material or as per clients requirement
Fabrication: Based on the customer's drawings and technical requirements
Package: Both parties discuss and agreed before delivery
Terms of Payment: L/C, T/T
Minimum Order Quantity: 1 set
Port of Loading: Qingdao Port
Delivery Time: One month or based on the customer's needs
Performance Standard
Besides conform to the drawing and design, the materials and fabrication of tower components shall conform to the Chinese Standard or other standard which clients can accept.
1. GB/T2694-2003 Transmission line tower - - Technical requirements for manufacturing
2. JGJ81-2002: Technical specification for welding for steel structure of building
3. GB9787-88: Measuring and allowable tolerance for hot-rolled equal angle
4. GB709-88: Measuring and allowable tolerance for hot-rolled plate and strip
5. GB/T699-1999: Quality Carbon Structural Steel
6. GB/T1591-1994: Low alloy high strength structural Steel
7. GB700-88: Carbon Structural Steel
8. GB222-84: Method of sampling steel for determination of chemical composition and permissible variations
9. GB/T228-2002: Method for Tensile testing of metals
10 GB/T232-1999: Method for Bending test of metals
11 GB/T5117-1995: Carbon Welding Rod
12 GB/T5118-1995: Low Alloy Welding Rod
13 GB/T8220-1995: Welding wires for gas shielding arc welding of carbon and low alloy steels
14 GB/T10045-2001: Carbon steel flux cored electrodes for arc welding
15 JB/T7949-1999: Weld outer dimensions for steel construction
16 GB50205-2001: Test Standard for Acceptance of Steel Structure
17 GB/T470-1997: Zinc Ingot
18 GB3098.1-2000: Mechanical properties of fasteners-Part 1: Bolts, screws and studs
19 GB3098.2-2000: Mechanical properties of fasteners-Part2: Nuts, and thread
20 GB3098.3-2000: Mechanical properties of fasteners-Part3: Fastening screw
21 GB/T5780-2000: Helical Bolts Grade C
22 GB/T41-2000: Helical Nuts Grade C
23 GB/T90-2002: Flat Washer Grade C
24 GB/T13912-2002: Metal Coating, Technical Requirement
We also adopt British, American and other international standard which client can accept.
Qingdao Megatro Mechanical and Electrical Equipment Co., Ltd.Is a Structure Steel, Power Transmission line steel tower, Telecom tower, related power materials, wind turbine, wind tower, power flange, forged products, casting, power fitting, conductor fabrication& export& import company.MEGATRO headquarter are located in Qingdao city, Shandong province, and plants located in Qingdao city of Shandong Province.
MEGATRO fabrication plants are equipped with state of the art equipments and machineries manned by skilled and talented staff.MEGATRO adheres to the principles of "We provide goods every time, and we offer you good all the time!", "Good Quality Management" and committed to "Heath, Safety and Environment" standard.These values had made our plants certified ISO 9001:2008;ISO 14001:2004 and OHSAS18000:2007 company.
To meet our clients requirements, we also design every type of steel towers & poles as per American Society of Mechanical Engineers(ASME), American National Standards Institute(ANSI) and clients standard.Major design engineers come from America, India, and Egypt in meeting the quality requirements for standard of power transmission steel tower, telecom tower and standard fro steel building structures.
MEGATRO capabilities combined with the diversified and rich experience of our design engineers distinguish it as a professional manufacturer & trader in the power transmission line steel tower, telecom tower, wind turbine, wind tower, power flange, and structural steel.We are delighted to be a one-stop steel structure solutions with power material and related products provider and aspire to build on these relationships with our clients promising them a future as solid as steel.
