Product Specifications

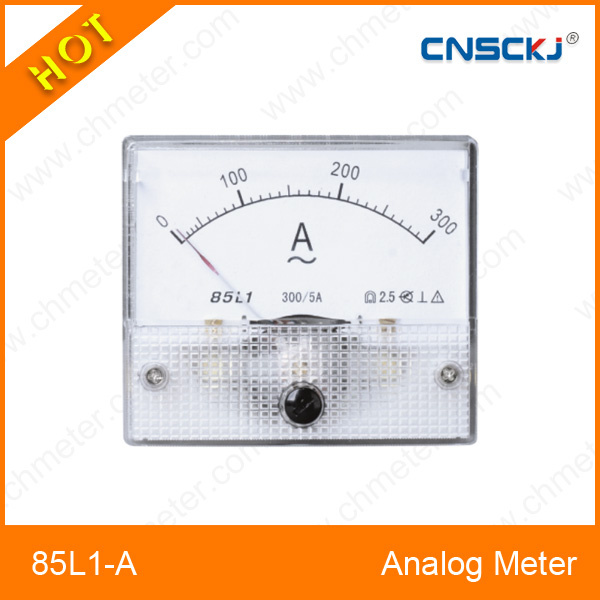

Prod Model: |
85L1-A |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Size: |
64*56mm |
Theory: |
Electronic Meter |
Display: |
Indicator |
Power Source: |
AC and DC |
Installation: |
General Installation Meter |
Usage: |
Voltage Measurement |
Product Description
Uses and applications:
This series of meters is a direct imitation of power measurement display instruments, measuring DC current and voltage, AC current and voltage, frequency, power factor, phase sequence, power, synchronization instructions and other non-power measurements. It has been widely used in a variety of AC and DC transmission and distribution panel meter systems, power control panels and other electrical devices, in the industries of maritime shipping, rail transport, chemical flameproof, low voltage equipment, construction equipment, generators, machinery equipment, etc. Being able to make electrical measurement and non-power measurement, it is a high-end instrument applied in general environmental conditions.
Standards and certifications:
The SCD series of pointer meter is produced on the standard of GB/T7676-1998, and the digital meter is on the standard of GB/T22264-2008. Its safety performance is on the standard of GB4793 and IEC61010. The dial scale line and the pointer is designed to meet the German standards of DIN43790 and DIN43802. The shape and hole size of the panel meter is on the standards of GB/T1242 and IEC61554. All the products of SCD meters Company have gone through the national CE certification, and have got ISO: 9001 certification.
The more technical data |
Name |
precision |
normal specification |
remark |
AC ammeter |
A |
1.5 |
0.5-50A |
can be diractly connected |
|
A |
1.5 |
10/5A-800/5A |
secondary current passed by current transformer |
|
KA |
1.5 |
1KA-10KA |
secondary current passed by current transformer |
AC voltmeter |
V |
1.5 |
10V-600V |
can be diractly connected |
|
KV |
1.5 |
1KV-35KV |
100V secondary voltage passed by voltage transformer |
DC ammeter |
µ A, mA |
2.5 |
50μ A-500μ A 1mA-500mA |
can be diractly connected |
|
A |
1.5 |
1A-15A |
can be diractly connected |
|
A |
1.5 |
15A-750A |
outer attached shunt 75mV 60mV 50mV |
|
KA |
1.5 |
1KA-3KA |
outer attached shunt 75mV 60mV 50mV |
DC voltmeter |
V |
1.5 |
3V-600V |
can be diractly connected |
|
KV |
1.5 |
1KV-3KV |
outer attached resistance value |
Hz meter |
Hz |
2.5 |
45-55HZ 55-65HZ36V. 100V
127V. 220V. 380V |
|
Power meter |
W, VAR |
2.5 |
100V 380V 380-380KV
5-10KA/5A |
100V secondary voltage passed by voltage transformer |
cosφ metert
|
cosφ |
2.5 |
COS φ =0.5-1-0.5
100V/5A 220V/5A 380V/5A |
|
Overall dimension: 72x72mm |
opening overall: 67.5x67.5mm |
