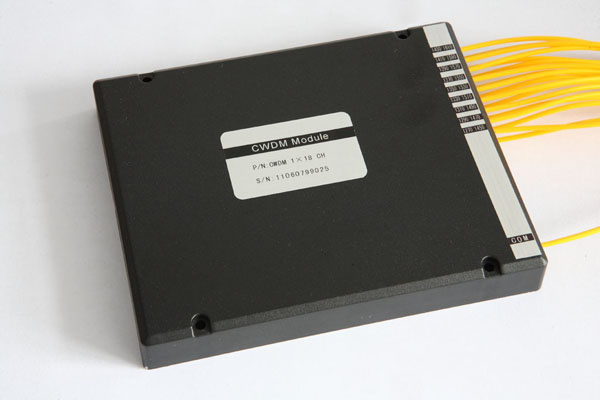

8CH CWDM Module (Mux or Demux) in ABX Box

Name: 8CH CWDM Module (Mux or Demux) in ABX Box
Brand: China-Manufacturer-Directory.com
SKU: 695596245
Availability: InStock
Rating: 5 (150 reviews)

Supplier:	Flyin Optronics Co., Ltd.
Price:	Negotiable
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
ABS Size:	140x115x18mm

Product Description

Flyin Coarse wavelength division multiplexing (CWDM) is a method of combining multiple signals on laser beams at various wavelengths for transmission along fiber optic cables.

CWDM systems have channels at wavelengths spaced 20 nanometers (nm) apart, compared with 0.4 nm spacing for DWDM. This allows the use of low-cost, uncooled lasers for CWDM. In a typical CWDM system, laser emissions occur on eight channels at eight defined wavelengths: 1610 nm, 1590 nm, 1570 nm, 1550 nm, 1530 nm, 1510 nm, 1490 nm, and 1470 nm. But up to 18 different channels are allowed, with wavelengths ranging down to 1270 nm.

Parameter		4Channel	8Channel	16Channel
Center Wavelength (nm)		1270~1610 or 1271~1611
Center Wavalength Accuracy (nm)		± 0.5
Channel Spacing (nm)		20
Channel Passband (@-0.5dB bandwidth) (nm)		± 7.5
Insertion Loss (dB)		≤ 1.4	≤ 2.7	≤ 5.5 (no skip filter)	≤ 3.0 (with skip filter)
Channel Ripple (dB)		≤ 0.3
Isolation (dB)	Adjacent	≥ 30
	Non-adjacent	≥ 45
Insertion Loss Temperature Sensitivity (dB/º C)		< 0.005
Wavelength Temperature Shifting (nm/º C)		< 0.002
Polarization Dependent Loss (dB)		< 0.1
Polarization Mode Dispersion (ps)		< 0.1
Directivity (dB)		≥ 50
Return Loss (dB)		≥ 45
Maximum Power Handling (mW)		300
Operating Temperature (º C)		-20~+75
Storage Temperature (º C)		-40~+85
Package Dimension (mm)		L100 x W80x H10.5		L140 x W115 x 18

Ordering Information

Number of Channels	1st Channel	Configuration	Fiber Type	Fiber Length	Connector
04=4 Channel 08=8 Channel 16=16 Channel 18=18 Channel N=N Channel	27=1270nm … … 47=1470nm 49=1490nm … … 61=1610nm SS=special	M=Mux D=Demux O=OADM	1=Bare fiber 2=900um loose tube 3=2mm Cable 4=3mm Cable	1=1m 2=2m S=Specify	0=None 1=FC/APC 2=FC/PC 3=SC/APC 4=SC/PC 5=ST/ 6=LC S=Specify

Flyin Optronics Co., Ltd, established in Nov 2005, is a leading worldwide manufacturer and supplier of fiber optic components.Our products include CWDM/DWDM, optical switch, circulator, isolator, PLC splitter & coupler, optical transceiver and media converter etc.
We have passed the ISO9001 and ISO14001 certification.Also our products passed the international safety certification and RoHS.Owing to our excellent engineering services, custom design, technical support, product review, rapid sample and mass production fast delivering for our customers.Our products have been exported to India, Japan, USA and other countries or area.
To supply high value solutions for customer is our aim.Flyin always determined to bring reliable products and service to every client.And we cherish the opportunities every client gives us.
