Product Specifications
| Prod Model: |
ELP-DVR1508C-D7540F |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Kind: |
CCTV Kit |
| Special Features: |
8channel CCTV Kit |
| Style: |
15 Inch Monitor |
| Type: |
8 Channel 15 Inch CCTV Kit |
Product Description

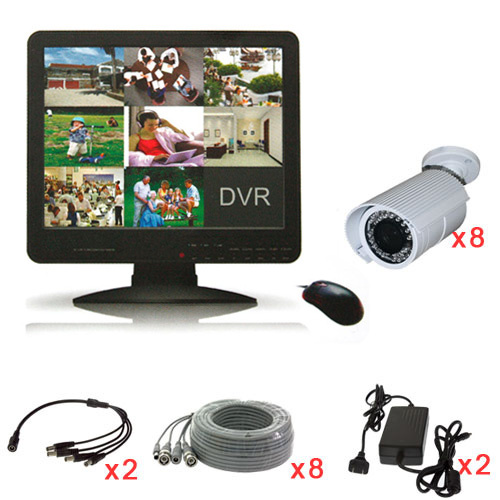

CCTV kit (ELP-DVR1508C-D7540F )
Features:
1). 1 X H. 264 8 channel all-in-one Standalone DVR with 500G hard disk (ELP-DVR1508C).
2). 15inch LCD monitor
3). 8 X 1/4SUPER HAD Sony CCD, 420TV Line waterproof IR Camera(ELP-8560F). IR distance: 30M
4). 8 X 20M CCTV Video power cable.
5). 2 X One power adaptor for 8 CCTV Cameras.
Combo DVR specification:
1. 15"LCD all-in-one Standalone DVR(H. 264)
2. Display Resolution: PAL: D1(704*576), NTSC: D1(704*480)
3. Recording Frame Rate: D1@50fps, HD1@100fps, CIF@200fps adjustable
4. 1/4/8channel playback simultaneously(Optional playback channel)
5. 8Channels real-time Network transmission with QCIF resolution
6. Support 8CH audio, alarm, network, PTZ, mobile phone surveillance(Win CE/Symbian / iPhone/Blackberry)
7. Support 2 SATA HDD, each HDD up to 2 TB at max(optional, price not included)
8. LCD Size: 15 inch 4: 3 CCFL XGA
CCTV camera (ELP-D7540F)specification:
Features:
Built-in 3.6/6/8mm lens(Optional).
Lens adjustable external.
48 IR LEDs (40M IR range).
Weatherproof Rating: IP66.
Cable goes through the bracket
Specification:
Image Sensor: 1/4 color Sony super CCD.
Sync Systme: Internal.
Resolution: 420 TV Lines.
S/N Ratio: 48dB (AGC OFF).
Minimum Illumination: 0 Lux/F1.2(IR on).
IR Range: 40M.
White Balance: ATW / AWC switchable.
Gain Control: AGC ON / OFF switchable.
Electronic Shutter: NTSC: 1/60~1/120, 000 sec/PAL: 1/50~1/120, 000sec.
B. L. C. Function: ON/OFF switchable.
Video Output: Composite 1.0V p-p at 75 ohm.
Gamma Correction: 0.45.
Lens Mount: 3.6/6mm/8mm(Optional).
Operation Temperature: -10 degree TO 50 degree.
Operational Humidity: Within 85%RH.
Supplied Voltage: DC12V± 1V /500mA
