Product Specifications
| Prod Model: |
TAKFLY-13 Optical Fibre Pigtail |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Name: |
Optical Fibre Pigtail |
| Model No: |
Nf-FC/PC-FC/PC-Mm |
| Cable Type: |
Single Mode/Multimode |
| Connector Type: |
Sc, FC, St, LC, MTRJ,MPO, MTP, Mu, E2000 and etc. |
| Color Of Cable: |
Yellow (Sm)/Orange (Mm)/Aqua (Om3) |
| OEM/ODM: |
Acceptable |
| Fiber Type: |
G652D/G655/G657 |
| Warranty: |
2 Years |
| Certfication: |
CE/UL |
| Free Samples: |
Yes |
| Application: |
Probe |
| Type: |
Multi-mode Fiber |
| Connection Structure: |
SC |
| Certification: |
CE |
Product Description

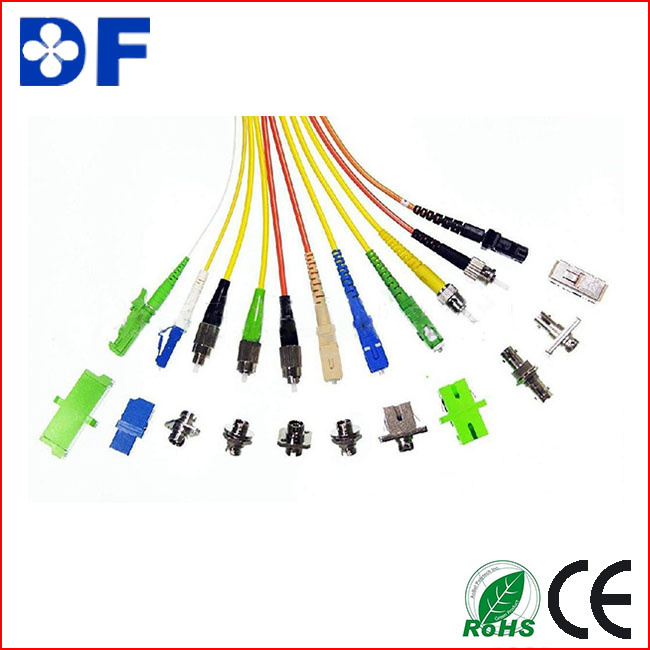

9/125um sc/apc optical fibre pigtail/optic fiber water-proof pigtail
Fiber optic pigtail is a piece of fiber optic cable with only one fiber optic connector on one side of the cable, there are single mode and multimode fiber optic pigtails, which can be with various types of fiber optic terminations such as lc, sc, st, fc, mtrj, mu, e2000, mpo, etc.
The typical use of fiber optic pigtails is to link the fiber optic cable with fiber optic equipment. The fiber optic pigtail with connector side is used to link the equipment, while the other side of the pigtail is melted together with the fiber cable, by melting together the fiber glasses, it can reach a minimum insertion loss. Common types of fiber optic pigtails are usually with 0.9mm fiber cable diameter, and usually installed inside odf unit. Most commonly used types are sc fiber optic pigtail, st fiber optic pigtail, fc fiber optic pigail, lc fiber optic pigtail, mtrj fiber optic pigtail, sc/apc fiber optic pigtail, fc/apc fiber optic pigtail and e2000 fiber optic pigtail.
We can offer a wide range of fiber optic pigtails, including 0.9mm fiber optic pigtail, 12 color pigtail, water-proof pigtail, multi-fiber pigtail, pigtail bundles, sc fiber optic pigtail, lc fiber optic pigtail, st fiber optic pigtail, fc fiber optic pigtail, singlemode fiber optic pigtail, multimode fiber optic pigtail, om3 10 gigabit fiber optic pigtail, etc
Features of fiber optic pigtails: 1) superior qualified standard pc, apc, upc polishing; 2) 100% optic test: Insertion loss: ≤ 0.3 (pc); ≤ 0.2 (apc); ≤ 0.2 (upc); 3) 100% optic test: Return loss: ≥ 45 (pc); ≥ 60 (apc); ≥ 55 (upc); 4) φ 0.9mm, φ 2.0mm, φ 3.0mm cable optional; 5) single mode (9/125) or multi mode (50/125 or 62.5/125) fiber available; 6) fc, sc, lc, mu, st, mt-rj, etc connector options 7) simplex and duplex connector available; 8) good exchange ability and good durability; 9) available in fiber bunch, ribbon fan-out, pigtail available; 10) meets iso9001, rohs and bell core gr 326-core standards; 11) customized specifications are welcomed.
Applications of fiber optic pigtails: 1) catv, metro test equipment; 2) telecommunication networks; 3) local area networks (lan); 4) wide area networks (wan); 5) premise installations; 6) data processing networks; 7) video and military active device termination.
Features:
1. Multimode insertion loss: < 0.5dB (0.25dB typical)
2. Multimode return loss: Better than –25dB
3. Singlemode insertion loss: < 0.5dB (0.25dB Typical)
4. Singlemode return loss: Better than –55dB
5. Minimum 62.5/125µ M Fiber 850/1300nm Bandwidth: 160/500 MHz-km
6. Minimum 50/125µ M Fiber 850/1300nm Bandwidth: 500/500 MHz-km
7. Mating durability: < 0.25dB increase after 500 cycles
8. Operating/Storage temperature: 0º C to 60º C
Specifications:
1.900um buffered 62.5um, 50um fiber and 9um singlemode fibers
2. High quality PC Zirconia LC, SC and ST style ferrules
3. Premium Polymer MTRJ ferrules
4.100% optical tested for premium performance
5. SC, ST, LC and MT-rJ versions available
6. Meets the standard of TIA/EIA-568-B. 3
Applications:
1. Fushion splicing to OSP or building cables
2. Pigtailing to active devices such as LASERS or LEDs
|
MECHANICAL, ENVIRONMENTAL & MATERIAL DATA |
|
Range of Mode |
Single or Multimode |
|
Cable Type |
Simplex or Duplex Zipcord |
|
Connector Style |
SC, FC, ST, LC, MTRJ, E2000 |
|
Polish or Ferrule Interface Type |
PC, UPC, APC |
|
Cable Diameter |
0.9mm, 1.6mm, 2.0mm, 3.0mm |
|
Lengths |
Standard & Custom Lengths |
|
Strength Member |
Aramid Yarn |
|
Outer Jacket |
PVC or LSZH |
|
Cable Assembly Length (<15 meter Tolerance) |
-0/+100mm |
|
Cable Assembly Length (>15 meter Tolerance) |
-0/+10% |
|
Jacket Color (Multimode: OM1 & OM2) |
Orange |
|
Jacket Color (Multimode: OM3 & OM4) |
Aqua |
|
Jacket Color (Single Mode: G652D & Gb57A) |
Yellow |
|
Durability |
500 cycles(0.2 dB max increase), 1000 mate/demate cycles |
|
Operating Temp. |
-20°C to +70°C /+85°C(armoured) |
|
Storage Temp. |
-40 °C to +85°C |
|
Ferrule Concentricity |
< 1μm, Other Ferrule Concentricity < 1μm |
|
Humidity (FOTP-5) |
90-95% at 40°C |
|
Strength of Coupling Mechanism (FOTP-185) |
33 N at 0° for 5 sec |
|
Cable Retention (FOTP-6) |
50 N at 0° for 5 sec. |
|
Twist (FOTP-36) |
15 N at 0° 5 turns, 10 cycles |
|
Flex (FOTP-1) |
0.5 Kg at 25 cm, +90° to -90°, 100 cycles
|
