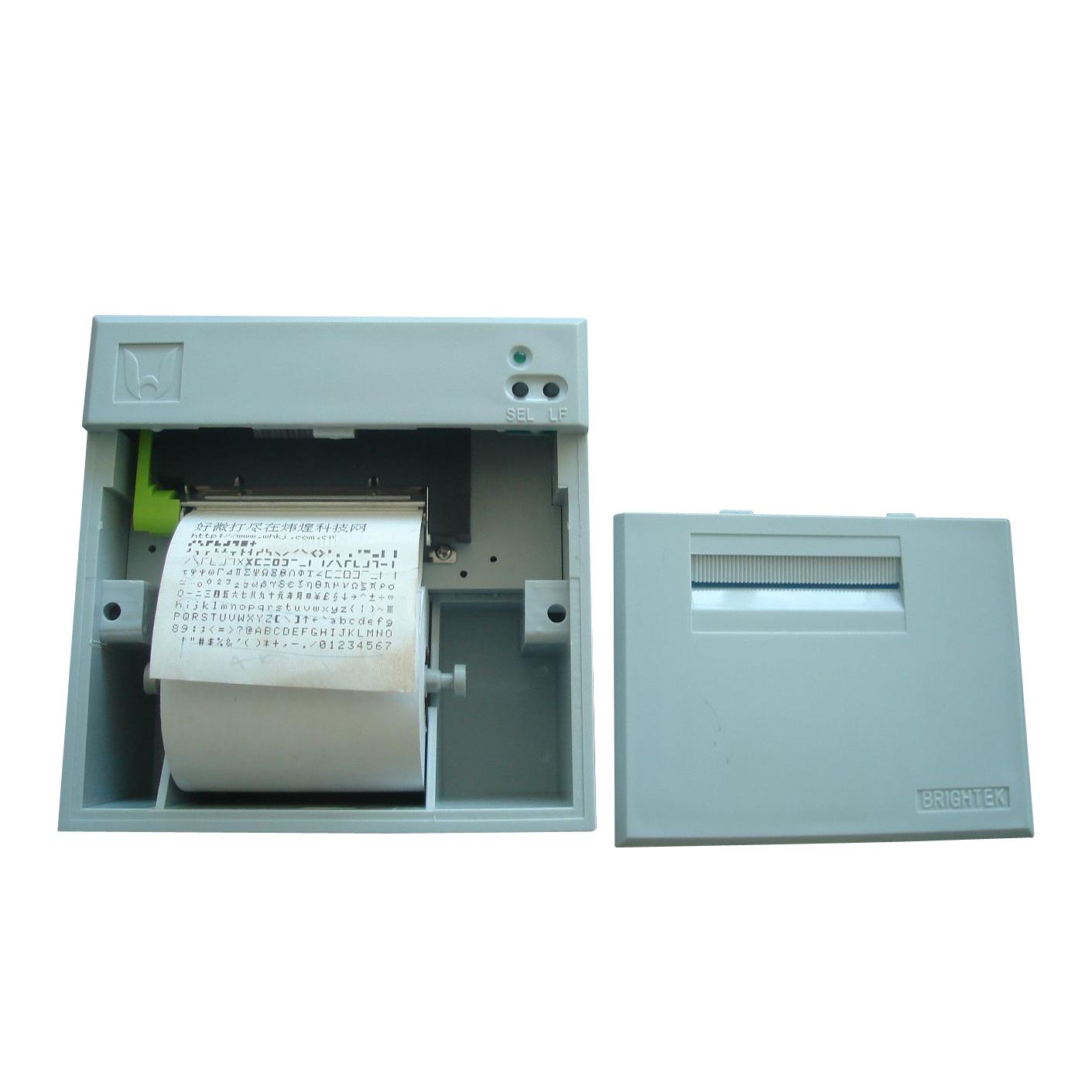

A2 DOT Matrix Printer

Product Specifications

Prod Model:	WH-A2
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Printing Method:	DOT Matrix Printing Method
Paper Loading Way:	Easy Paper Loading
Paper Width:	44mm /57 Mm
Characters Per Line:	16/24/40
Outline Dimension(Wxhxd Mm):	120mmx120mmx55.5mm
Installation Dimension(Wxh Mm):	115mmx115mm
Inlaid Deepness:	52.5mm
Paper Supplied:	Plain Paper (44mm/57mm Wide, 50mmø )
Interface:	Serial(RS-232c, Ttl)/Parallel Interface
Input Power:	DC 5V, 1.5A
Type:	Dot-matrix
Usage:	Receipt Printer
Style:	Black and White
Interface Type:	RS232c
Max. Paper Size:	57mm

Product Description

1. Dot matrix printing method
2. Different models for option
3. Copy function of LCD screen
4. Serial (RS-232C, TTL) interface / Parallel interface
5. Easy to use and simple to maintain
6. Abundant figure/curves/characters print function
7. Easy paper loading
Item Specification
Printing method dot matrix printing method
Paper loading way easy paper loading
Paper width 44mm /57 mm
Print width 32mm/48 mm
Resolution ration 96 dots/line, 144dots/line, 240dots/line
Character per Line 16/24/40
Printing speed 1line/sec, 0.7line/sec, 0.4line/sec
Character 6x8dots
Chinese character library GB2312, 12x12dots, or16x16dots
Outline dimension(WxHxD mm) 120mmx120mmx55.5mm
Installation dimension(WxH mm) 115mmx115mm
Inlaid deepness 52.5mm
Paper supplied Plain paper (44mm/57mm wide, 50mmø )
Interface Serial(RS-232C, TTL)/Parallel interface
Input Power DC 5V, 1.5A
Operating temperature 0° C ~ 50° C
Storage temperature -20° C ~ 60° C
Operating humidity 10° C ~ 85° C
Storage humidity 10° C ~ 90° C
