Product Specifications
| Prod Model: |
DLQC-DPZD003 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
1450*1250*800mm |
| Type: |
Teaching Model |
| Laser Model: |
ABS / Asr / Esp System Integrated Training Bench |
| Usage: |
Training |
Product Description
Automobile Training equipment
Size: 1000*1600*1800mm
High-grade automotive high-temperature paint handling, durable
DLQC-DPZD004

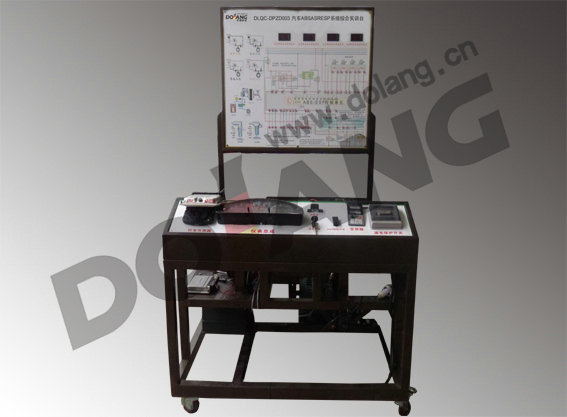

ABS / ASR / ESP system integrated training workbench
1. Introduction
The training platform based on Passat B5 ABS/ASR/ESP braking system, with complete accessories, all parts are original parts, production quality management according to requirement of ISO9001: 2008 standards. Motor drive can complete shifting gear ans testing which to truly response the working process of ABS/ASR/ESP braking system. Suitable for ABS brake system construction, working principle, setting fault and troubleshooting of middle and advanced vocational and technical schools and training institutions.
2. Basic Configuration
Vacuum booster pump assembly and angle sensors, ABS/ASR/ESP control unit, wheel speed sensors, pressure gauges, training panel, diagnostic seat, brake master cylinder, brake wheel cylinders, brake discs, brake pedal, three asynchronous motor, inverter, leakage protector and mobile workbench, ignition switch, ignition key, power switch, relay and fuse box, DC12V power supply, manual, training guide book and other components.
3. Features
1. Based on original ABS/ASR/ESP braking system, working properly, shows the structure and working principle of ABS/ASR/ESP braking system
2. Complete vacuum brake booster experiment, large surface adhesion coefficient ABS braking experiment, small surface friction coefficient ABS braking experiment, asymmetric road ABS brake experiments, different adhesion coefficient road ASR work process experiments, oversteer ESP work processes experiments, less-steer ESP work processes experiments, ABS, ASR, EBD three controls priority principle experiment.
3. Motor with inverter control, speed adjustment can be achieved
4. The training sets are equipped with complete colored schematics and detection terminal of ABS/ASR/ESP braking system, various signal parameters of the sensors, solenoid valves can be detected by special instruments. For example, voltage, resistance, frequency, etc;
5. Multi-plate clutch connected to the brake disc and the motor output shaft, to complete wheel brake differential
6. LED digital meter can show the brake master cylinder and the brake cylinder pressure changes in real time
7. The training units equipped with diagnostic communication link can be connected to a dedicated or general- auto decoders, electronically controlled automatic transmission system for read fault codes, clear fault codes read the data stream and other diagnostic functions;
8. Fault setting and assessment system ( see fault setting and assessment function description);
9. Training sets rotational positions are equipped with safety shields to avoid security risk;
10. Mobile device with locking casters which easy to move and facilitate to teach.
4. Training Content
1. Structure composition and adjustment principle training of ABS/ASR/ESP brake system
2. Different roads, different loads, different steering characteristics training of ABS/ASR/ESP brake system
3. ABS/ASR/ESP brake system diagram analysis training;
4. Troubleshooting and confirmation training of ABS/ASR/ESP brake system
5. Fault phenomenon and analysis training of ABS/ASR/ESP brake system
6. Practical and theory test identification of ABS/ASR/ESP brake system
5. Features
1. Mobile device with locking casters which easy to move and facilitate to teach
2. The workbench with high-grade automotive paint, paint treated at high temperatures, against moisture and rust, with beautiful and durable appearance;
3. Dimensions: . 1000*1600*1800mm
