Product Specifications
| Prod Model: |
SCD-85L1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
65*55mm |
| Theory: |
Electronic Meter |
| Display: |
Indicator |
| Power Source: |
AC and DC |
| Installation: |
General Installation Meter |
| Usage: |
Voltage Measurement |
Product Description

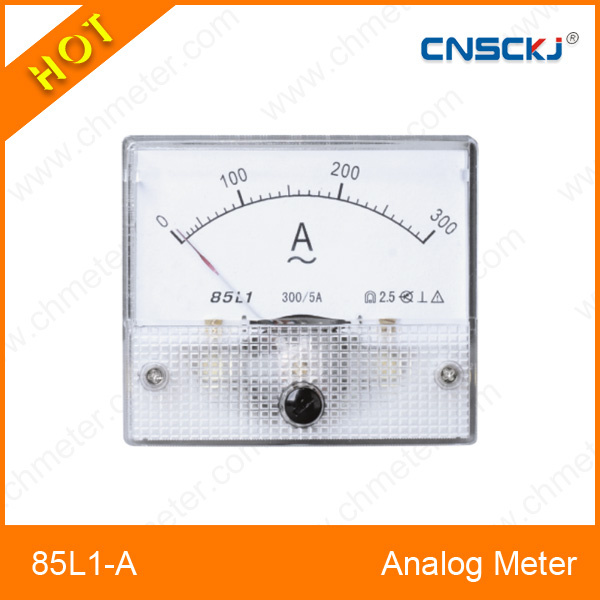

Current Analog Panel ammeter (SCD-85L1)
Model: 85L1 panel meter series
Size: Panel Dimension: 55*55mm Hole cutout dimension: 55*50mm
Features:
Current: 85L1-A 85C1-A Power: 85L1-KW Mvar
Voltage: 85L1-V 85C1-V Power factor: 85L1-cos¢
Frequency: 85L1-Hz Synchronization meter: 85L1-S
Carton size: 33*28*33cm Quantity: 100pieces/box
Technical specification parameter
Accuracy class: 1.5, 2.5 class
Ambient conditions: -20° C~+50° C
Relative humidity: 85%
Capacity to wishstand mechanical force: Since the frequency value change caused by ± 15%, indicating value error less than basic error.
Mechanical properties: Can withstand the speed be 50 meters per second, frequency, is 80-120 times per minute, two hours and transportation.
Working location: Vertical direction
|
The more technical data |
|
Name |
precision |
normal specification |
remark |
|
AC ammeter |
A |
2.5 |
0.5-50A |
can be diractly connected |
|
|
A |
2.5 |
10/5A-800/5A |
secondary current passed by current transformer |
|
|
KA |
2.5 |
1KA-10KA |
secondary current passed by current transformer |
|
AC voltmeter |
V |
2.5 |
10V-600V |
can be diractly connected |
|
|
KV |
2.5 |
1KV-35KV |
100V secondary voltage passed by voltage transformer |
|
DC ammeter |
µ A, mA |
2.5 |
50μ A-500μ A 1mA-500mA |
can be diractly connected |
|
|
A |
2.5 |
1A-15A |
can be diractly connected |
|
|
A |
2.5 |
15A-750A |
outer attached shunt 75mV 60mV 50mV |
|
|
KA |
2.5 |
1KA-3KA |
outer attached shunt 75mV 60mV 50mV |
|
DC voltmeter |
V |
2.5 |
3V-600V |
can be diractly connected |
|
|
KV |
2.5 |
1KV-3KV |
outer attached resistance value |
|
Hz meter |
Hz |
2.5 |
45-55HZ 55-65HZ36V. 100V
127V. 220V. 380V |
|
|
Power meter |
W, VAR |
2.5 |
100V 380V 380-380KV
5-10KA/5A |
100V secondary voltage passed by voltage transformer |
cosφ metert
|
cosφ |
2.5 |
COS φ =0.5-1-0.5
100V/5A 220V/5A 380V/5A |
|
|
Overall dimension: 65x55mm |
opening overall: 55x50mm
|
